ProSafe 20-AP Wireless Controller WC7520 Reference Manual

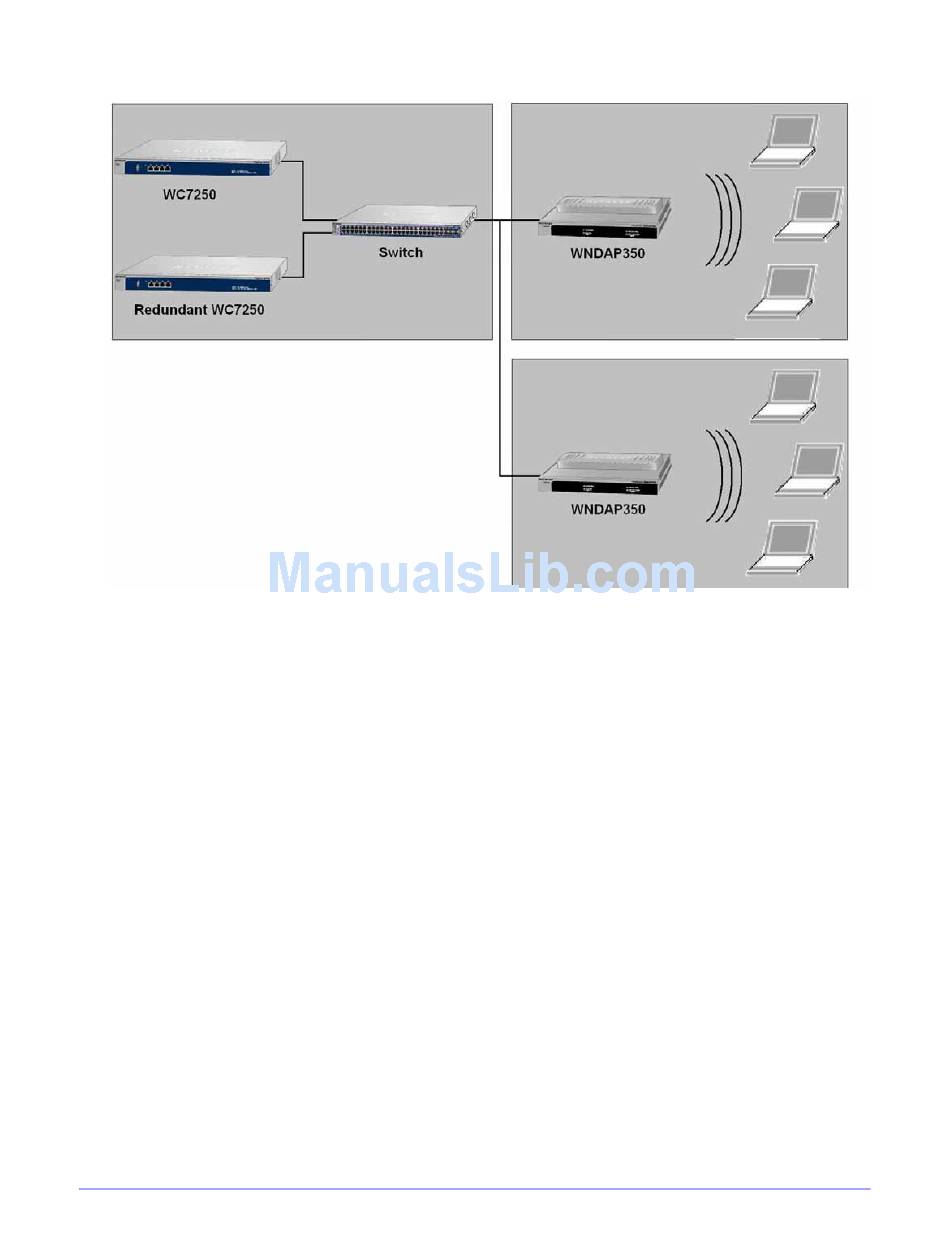

Figure 12.
The access points and wireless controllers are connected in the same subnet and same
VLAN and use the same IP address range that is assigned for that subnet. The core switch is
located in between the wireless controllers and the PoE switches, to which the access points
are connected. The core switch provides Internet access.
Prerequisites
This network configuration has the following prerequisites:
•
VLAN 1 is configured on the wireless controllers, core switch, and PoE switches. This
VLAN is untagged.
•
VLANs 10, 20, and 30 are configured on the wireless controllers, core switch, and the
PoE switch in Building 1. These VLANs are tagged.
•
VLANs 1, 10, 20, 30, and 40 are configured on the wireless controllers, core switch, and
PoE switches. Except for VLAN 1, these VLANs are tagged.
Chapter 2: System Planning and Deployment Scenarios
| 34
