Ping through
Ping to
IP Address
Run
Clear
3
.
7
.
8
D
a
t
a
F
l
o
3
.
7
.
8
D
a
t
a
F
l
o

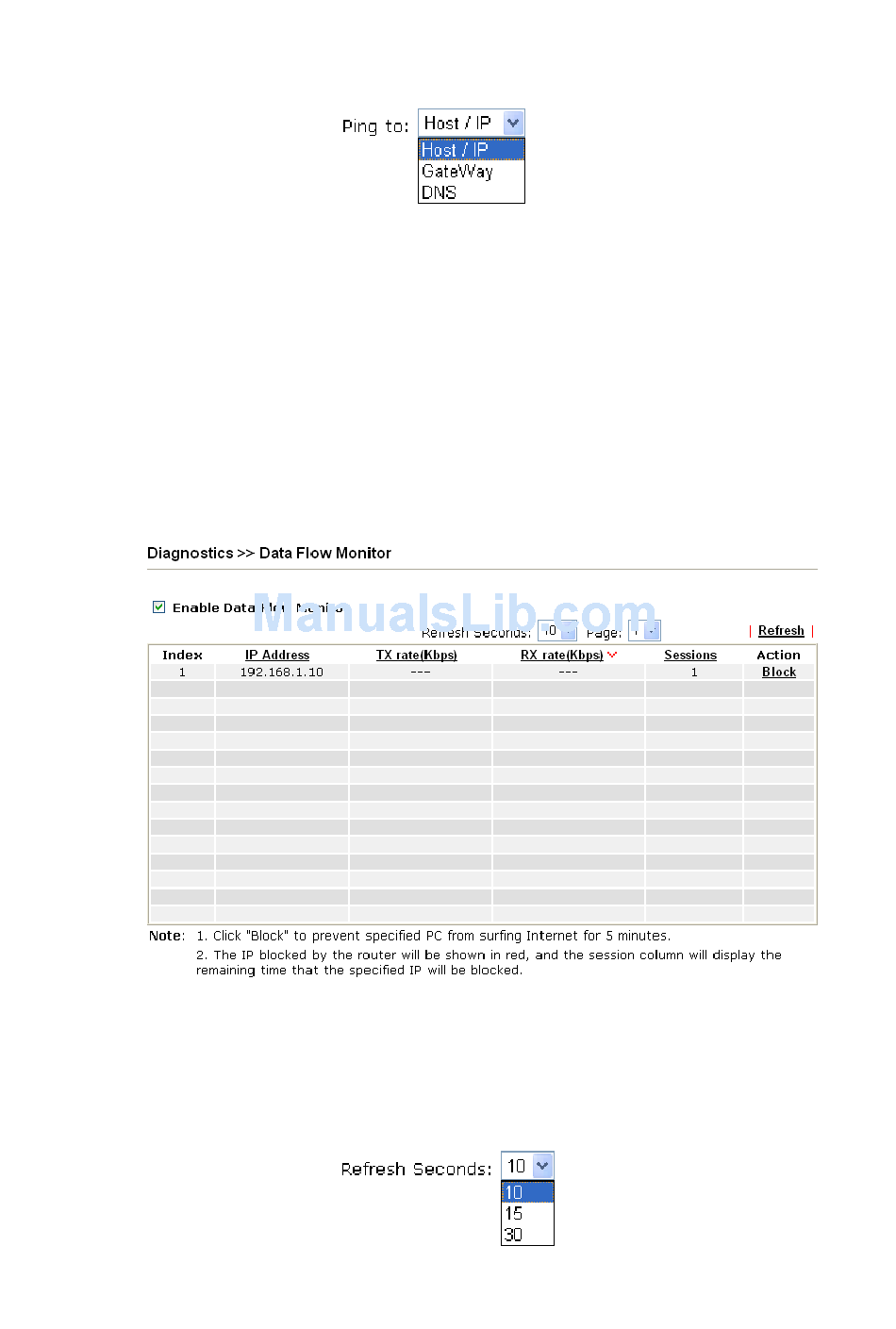

This page displays the running procedure for the IP address monitored and refreshes the data
in an interval of several seconds.
Click Diagnostics and click Data Flow Monitor to open the web page. You can click IP
Address, TX rate, RX rate or Session link for arranging the data display.
Enable Data Flow
Monitor
Refresh Seconds
Vigor110 User's Guide
Use the drop down list to choose the interface that you want to ping
through.
Use the drop down list to choose the destination that you would like
to ping.
Type in the IP address of the Host/IP that you want to ping.
Click this button to start the ping work. The result will be displayed
on the screen.
Click this link to remove the result on the window.
w
M
o
n
i
t
o
r
w
M
o
n
i
t
o
r
Check this box to enable this function.
Use the drop down list to choose the time interval of refreshing data
flow that will be done by the system automatically.
61
