Hot-Swap SAS/SATA Backplane
The backplane serves as an interface between the midplane board and the system drives.
The hot-swap backplane provides support for both SAS and SATA hard drives. There are
no hard drive cables that connect to the backplane. All hard drive control signals are
routed from the midplane board, which plugs directly into the backplane.
A.
SAS/SATA Hard Disk Drive Connectors

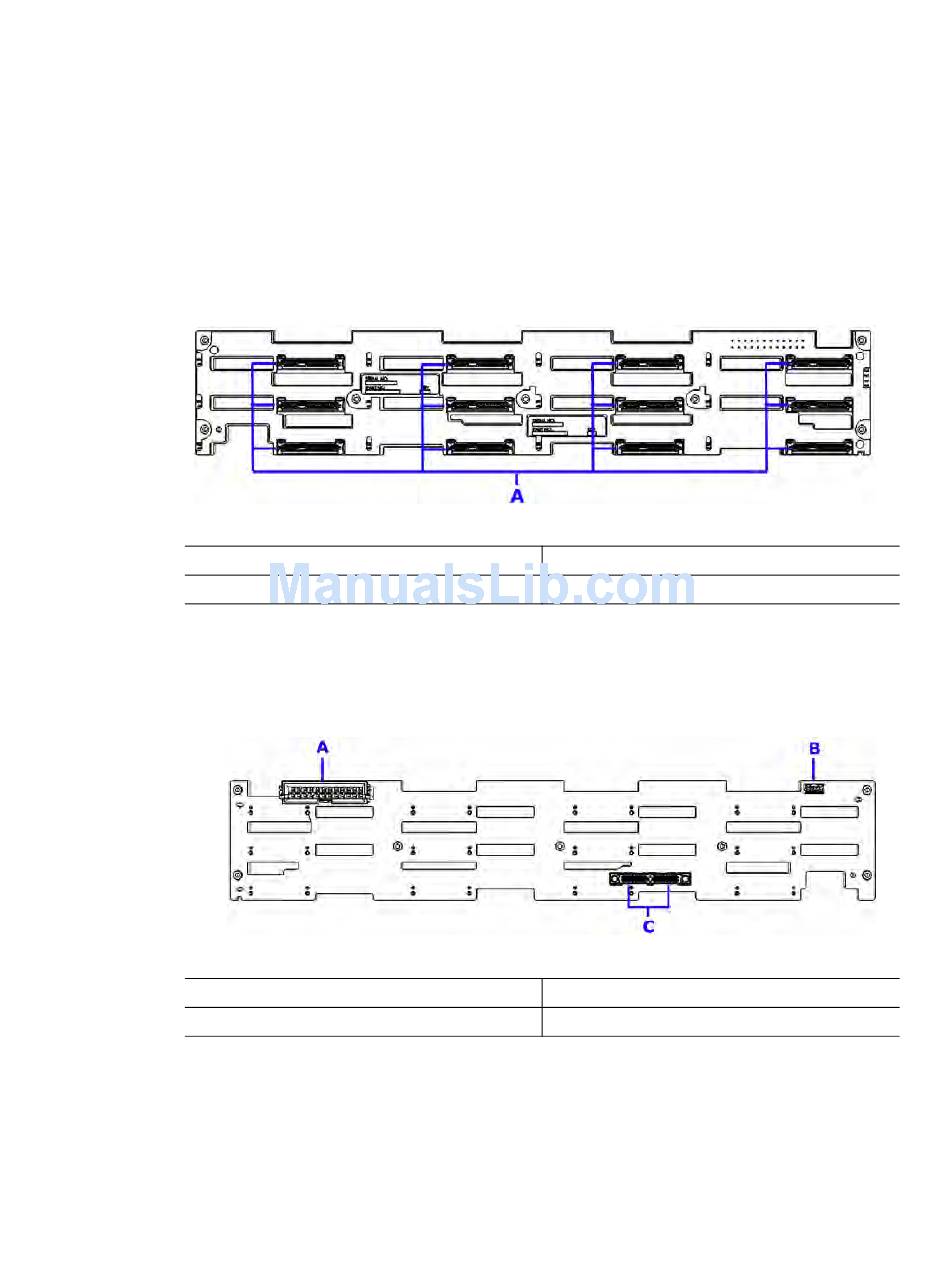

Figure 18. 3.5-inch Hot-Swap SAS/SATA Backplane Components (Front View)
A.
Backplane Power Connector
B.
Server Board/Midplane GPIO Connector
Figure 19. 3.5-inch Hot-Swap SAS/SATA Backplane Components (Rear View)
®
Intel
Server System SR2612UR Service Guide
C.
Midplane Board Connector
27
