Installing the Disk Drives

Caution: Before installing new disk drives, acclimate them to room temperature. Store drives at
room temperature for two hours prior to use.
Note: To install a disk drive or plastic blank into a carrier, refer to
Drive Carrier" on page 75
1. Select an open drive slot.
2. Hold the disk drive so the LEDs are on the left and the lever is fully open.
3. Slide the disk drive into the drive slot until the lever starts to close.
4. Push the lever until it meets the latch on the left side of the drive slot and clicks into
place.
®
Intel Server System SR2612UR Service Guide
in this manual.

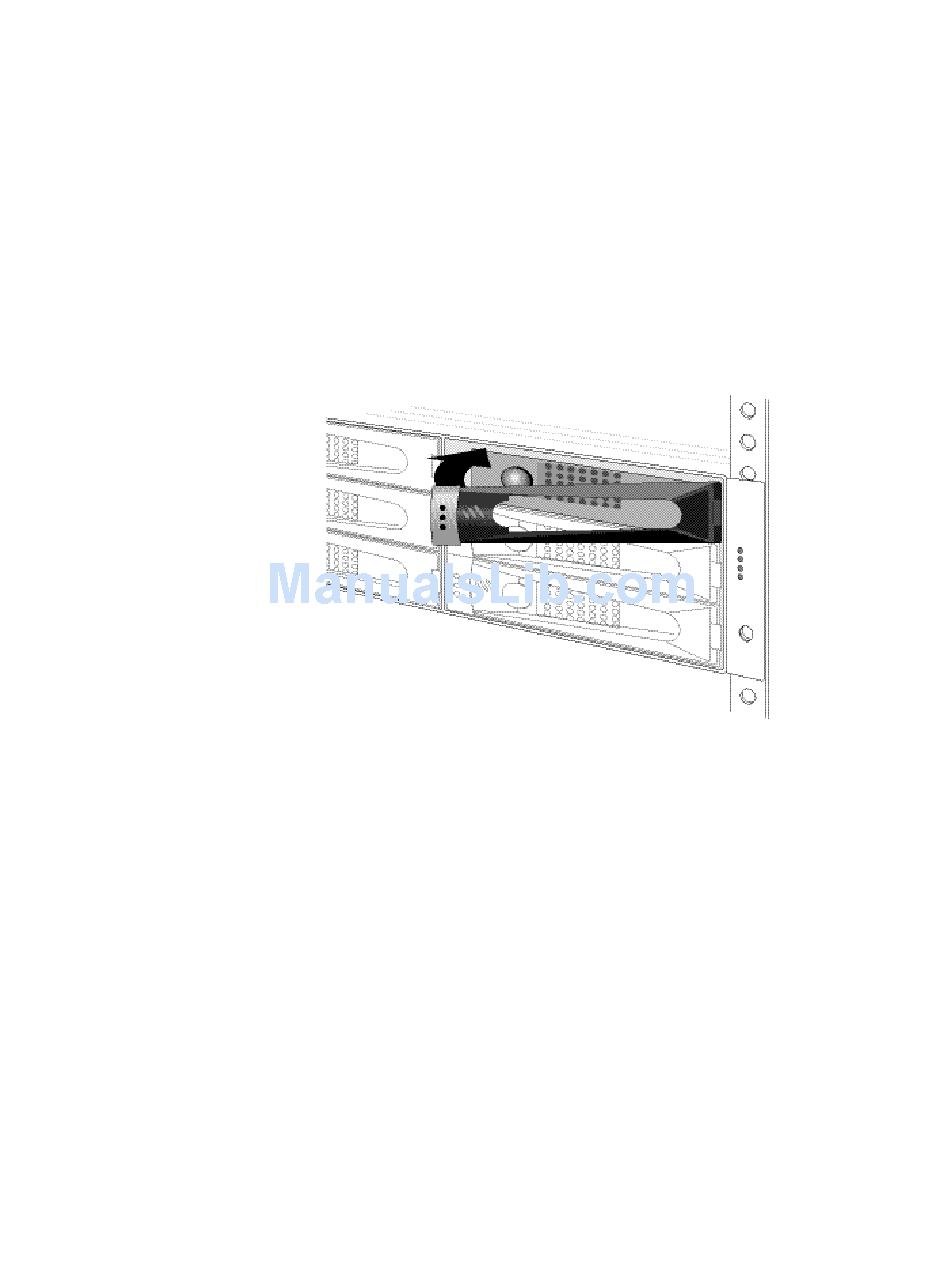

Figure 24. Sliding the Disk Drive into the Drive Slot

"Drive Installation in the
33
