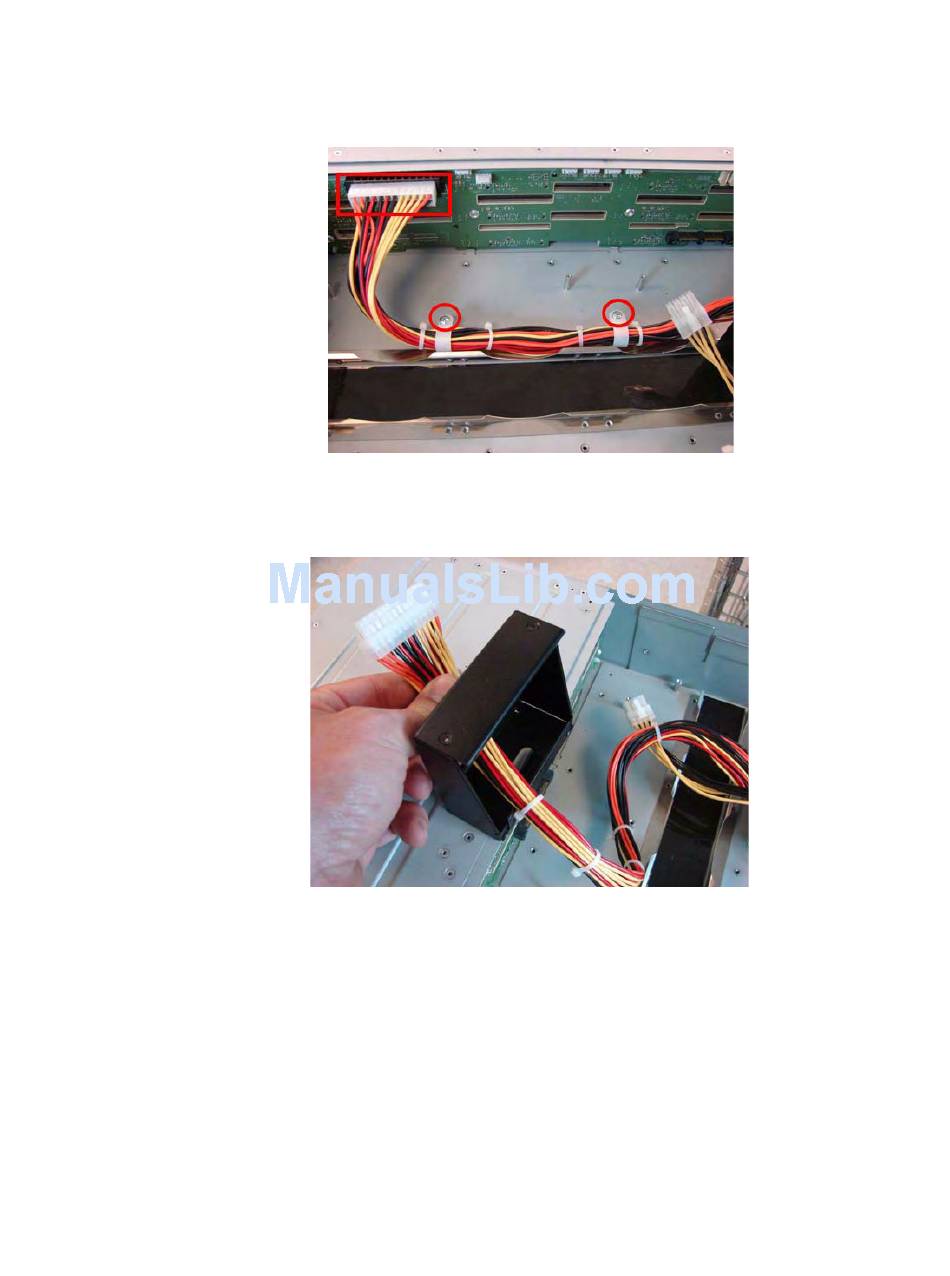

7. Remove 2 screws from nylon clamps and disconnect power cable "P4" from
backplane as shown below.
8. Remove cable chase insert foam from cable chase fan blank and then remove power
cable p4 from cable chase fan blank as shown below.
64

Figure 66. Remove the screws

Figure 67. Remove cable chase

®
Intel
Server System SR2612UR Service Guide
