9. Remove the four screws from the power distribution module and lift the power
distribution module from the server system as shown below.
10. Install the replacement power distribution module.
Installing Power Distribution Module
1. Install power distribution module onto spacers and Install all four screws as shown
below.
2. Route cable marked "P4" through the cable chase fan blank as shown below.
®
Intel
Server System SR2612UR Service Guide

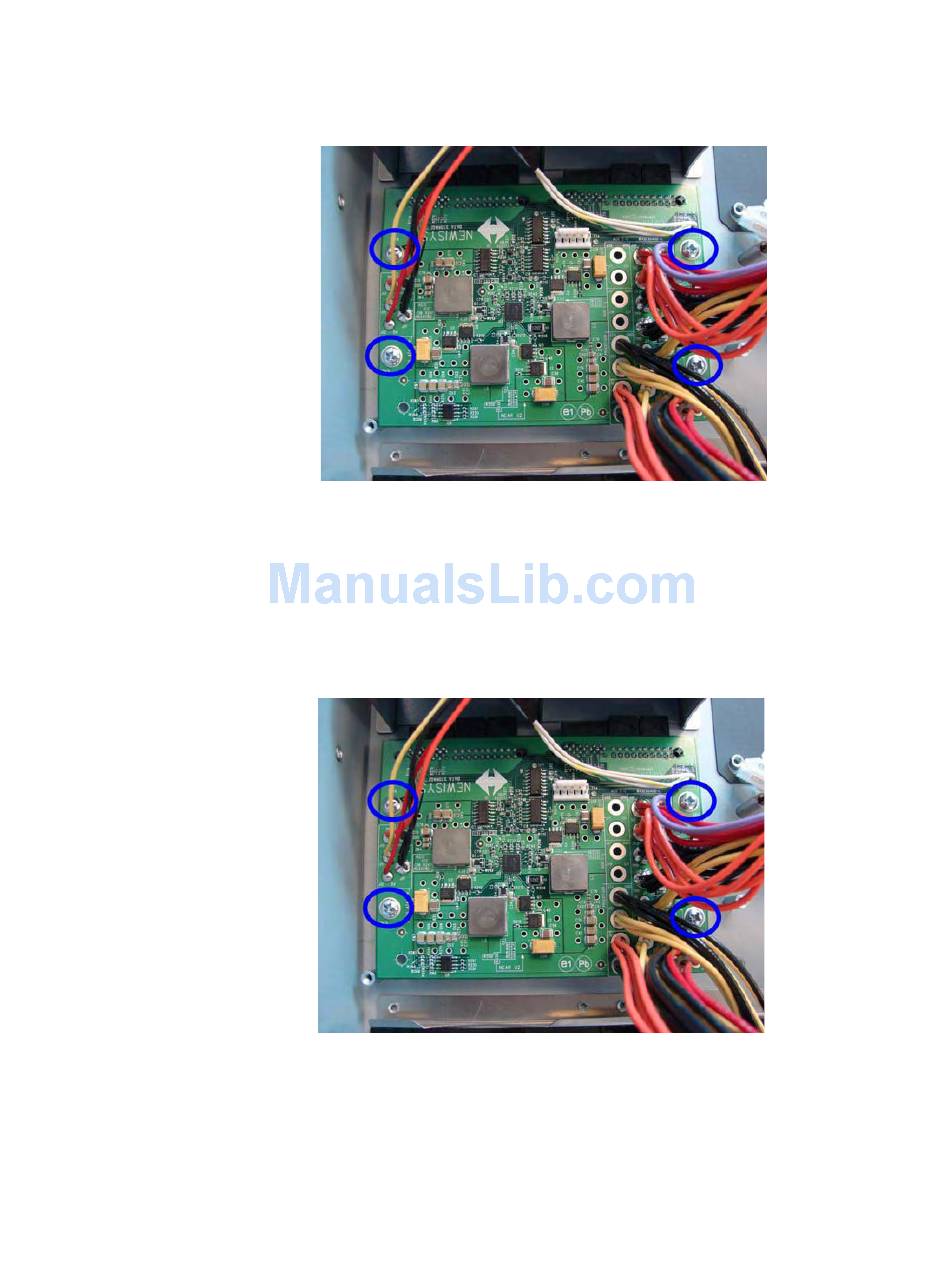

Figure 68. Remove the four screws from the PDB
Figure 69. Installing the Power Distribution Module
65
