5. Remove the drive sled by loosening the captive thumbscrew.
6. Position the drive(s) as shown and secure using the 4 screws provided with the
drive. If installing only one drive, locate the drive on the bottom shelf of the sled.
7. Reinstall the drive sled and tighten down the captive thumbscrew.
8. The power cables for the 2.5-inch drives are located near the drive sled. Attach the
cable(s) to the drive(s).
9. Carefully remove the CPU server board air duct.
40

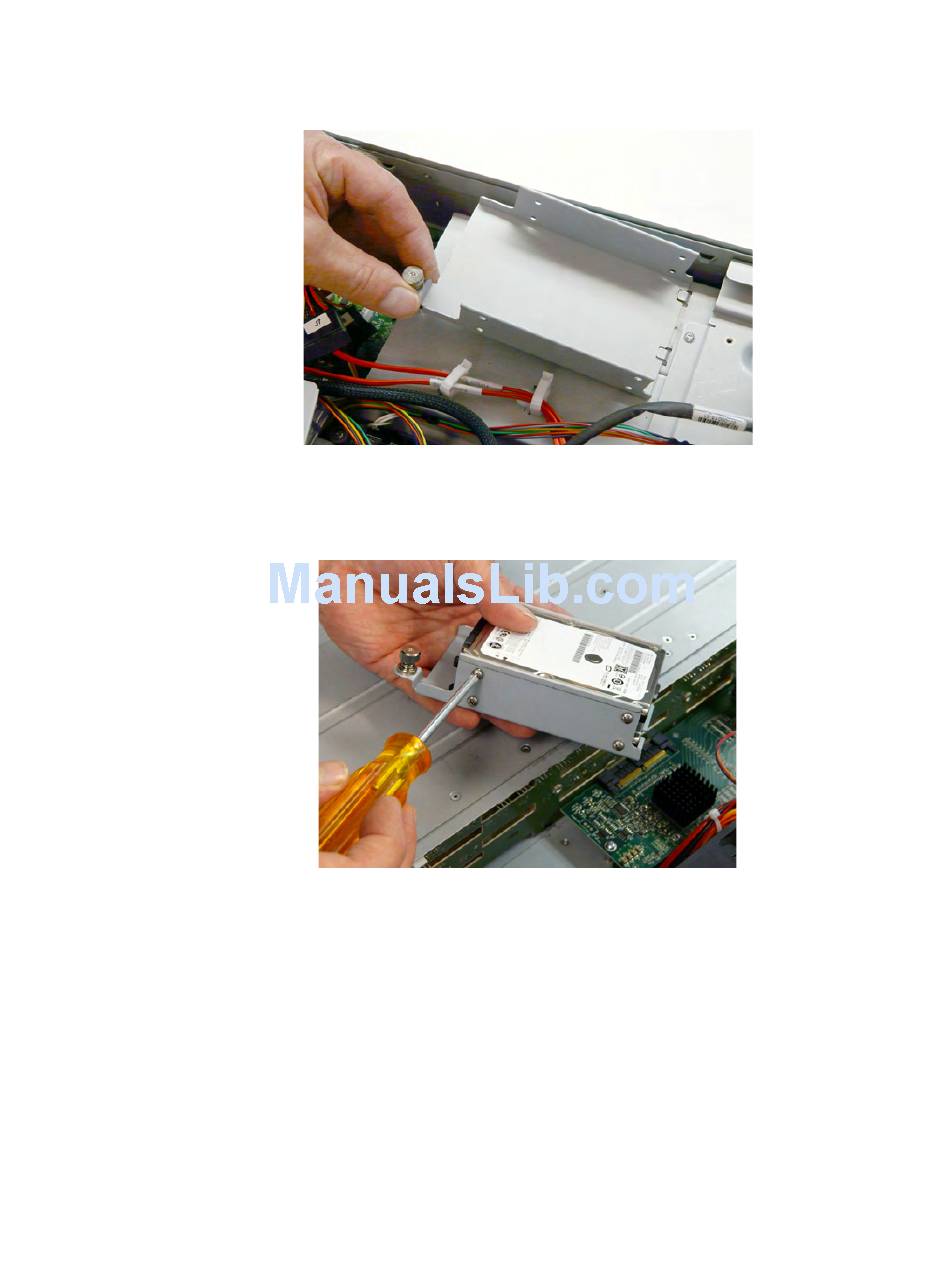

Figure 30. Removing the drive sled
Figure 31. Installing the boot drives
Intel
®
Server System SR2612UR Service Guide
