10. Connect the cable to the installed PCI RAID board as shown below
11. Reinstall the top cover and tighten the captive screw.
12. Reinstall the power cords.

Installing and Removing the Server Board

Removing the Server Board

To remove the server board, follow these steps:
1. Power down the enclosure and remove the power cord(s).
2. Remove the top cover from the enclosure by loosening the captive screw with a
Phillips screwdriver on the right-rear of the enclosure.
3. Slide the top cover back and lift it from the enclosure.
4. Remove the processor air duct.
5. Remove the PCI riser assembly.
6. Remove the Intel
7. Disconnect power cables, P1, P2, P3 and Front Panel logic cable, from
Motherboard as shown below.
®
Intel Server System SR2612UR Service Guide

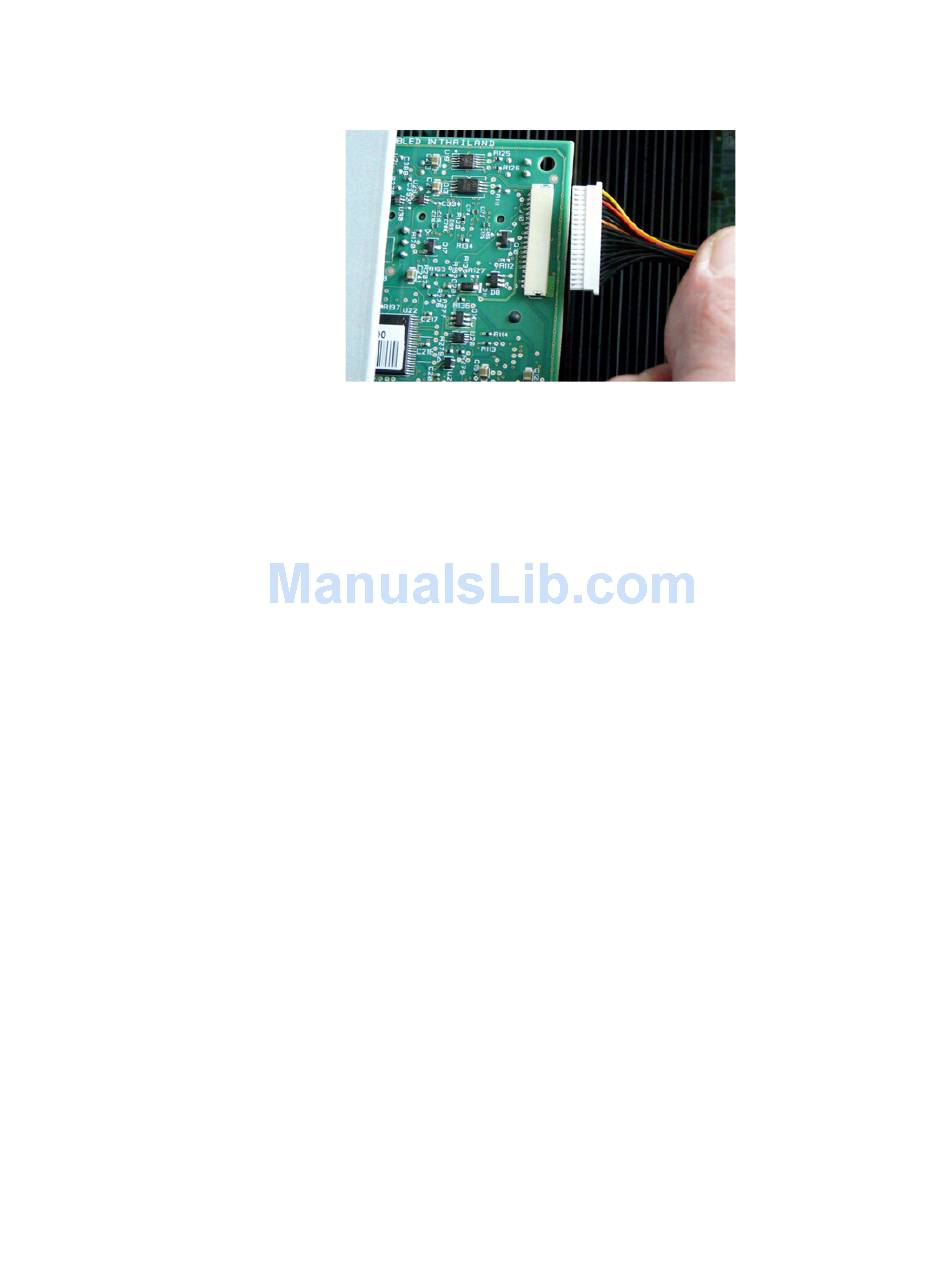

Figure 57. Connect the cable to PCI RAID Card

®
RMM3, if installed.
57
