Section 1 - Product Overview
Hardware Overview

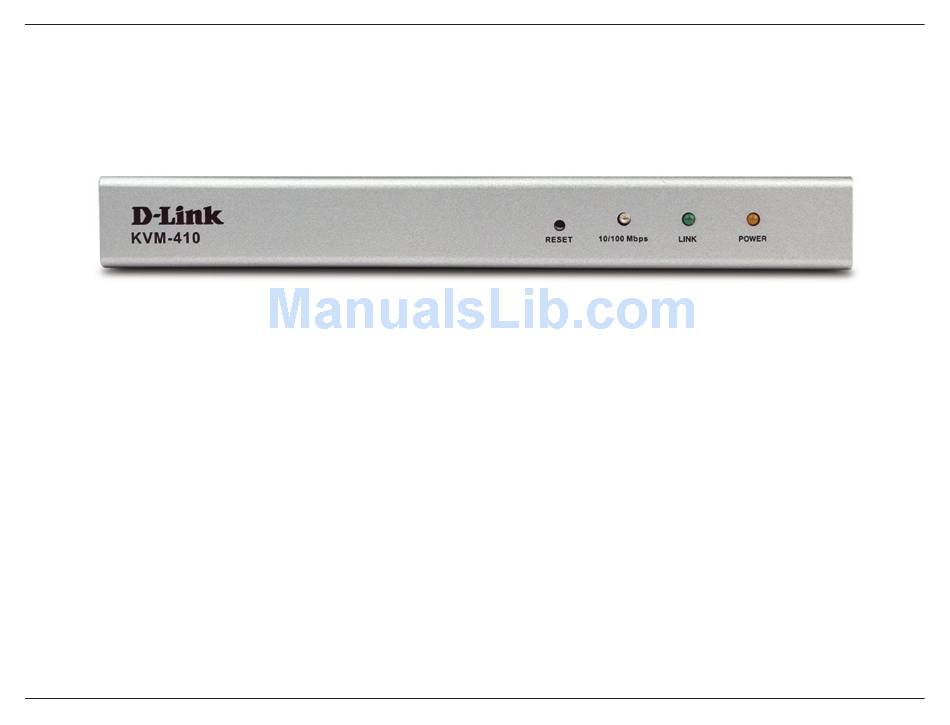

Front View
Reset / Firmware Upgrade Button:
Pressing and holding this button while powering ON the KVM-410 returns it to the factory default firmware and
settings.
After the KVM-410 has been powered ON, press and hold this button for two or more seconds to perform a system
reset.
Data Speed LED:
This LED will illuminate GREEN to indicate a 10Mbps connection or ORANGE to indicate a 100Mbps connection.
Link LED:
Flashes GREEN to indicate that a Client program is accessing the device.
Power LED:
Illuminates ORANGE when the KVM-410 is powered up and ready for operation.
D-Link KVM-410 User Manual
