Novell ACCESS MANAGER 3.1 SP1 - GATEWAY GUIDE Manual page 91

2 (Conditional) If the Access Gateway is a member of a cluster, select the server you want to
configure from the list of servers in the Cluster Member field. All changes made to this page
apply to the selected server.
3 Select the adapter you want to modify, then select one of the following actions:
To add a new subnet to an existing adapter, click New.
To delete a subnet, select a subnet, then click Delete. More than one subnet must be
configured for you to delete one.
To modify an existing subnet, click the IP address of the subnet.

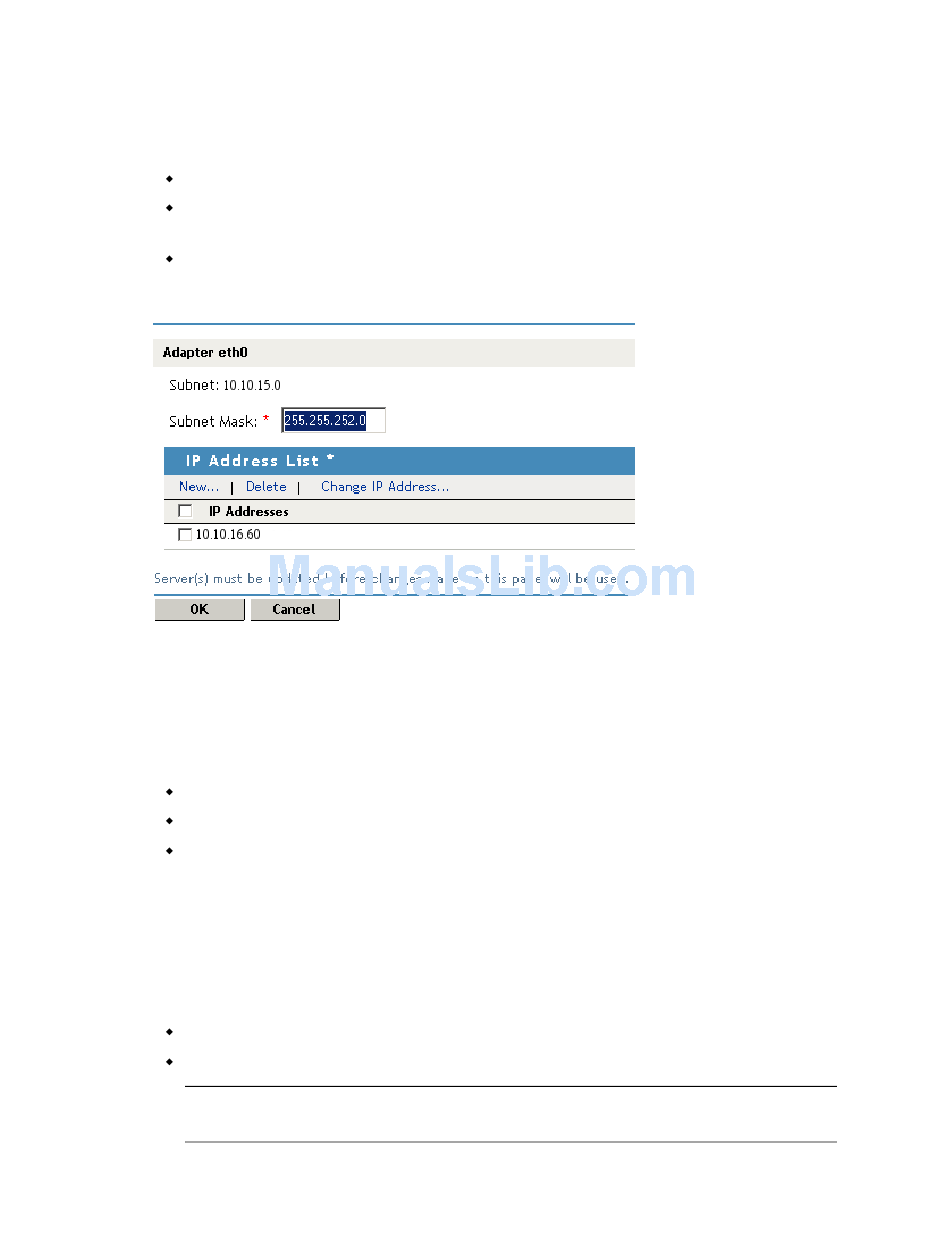

4 To configure a new subnet or a new IP address for a subnet, configure the following fields:
Subnet: Displays the address of the subnet that you are modifying. This is empty if you are
creating a new one.
Subnet Mask: (Required) Specifies the subnet mask address for this subnet. The address can
be specified in standard dotted format or in CIDR format
IP Addresses: Allows you to manage the IP addresses assigned to the subnet.
To add an address, click New, specify the address, then click OK.
To delete an address, select the address, then click Delete.
To change the IP address, see
Appliance" in the
5 Click OK.
6 Configure the Adapter List Options.
These options let you change settings for the network adapters on the Access Gateway to
ensure compatibility with an existing LAN. Modify the default settings only if your LAN
requires specialized adapter card changes.
Speed: Select Default, 10 MB, 100 MB, or 1000 MB.
Duplex: Select Default, Half, or Full.
IMPORTANT: Some network adapter drivers do not correctly detect duplex settings.
This is a general industry problem with Fast Ethernet technology.
"Changing the IP Address of the Access Gateway
Novell Access Manager 3.1 SP1 Administration Console Guide.
Server Configuration Settings 91
