3

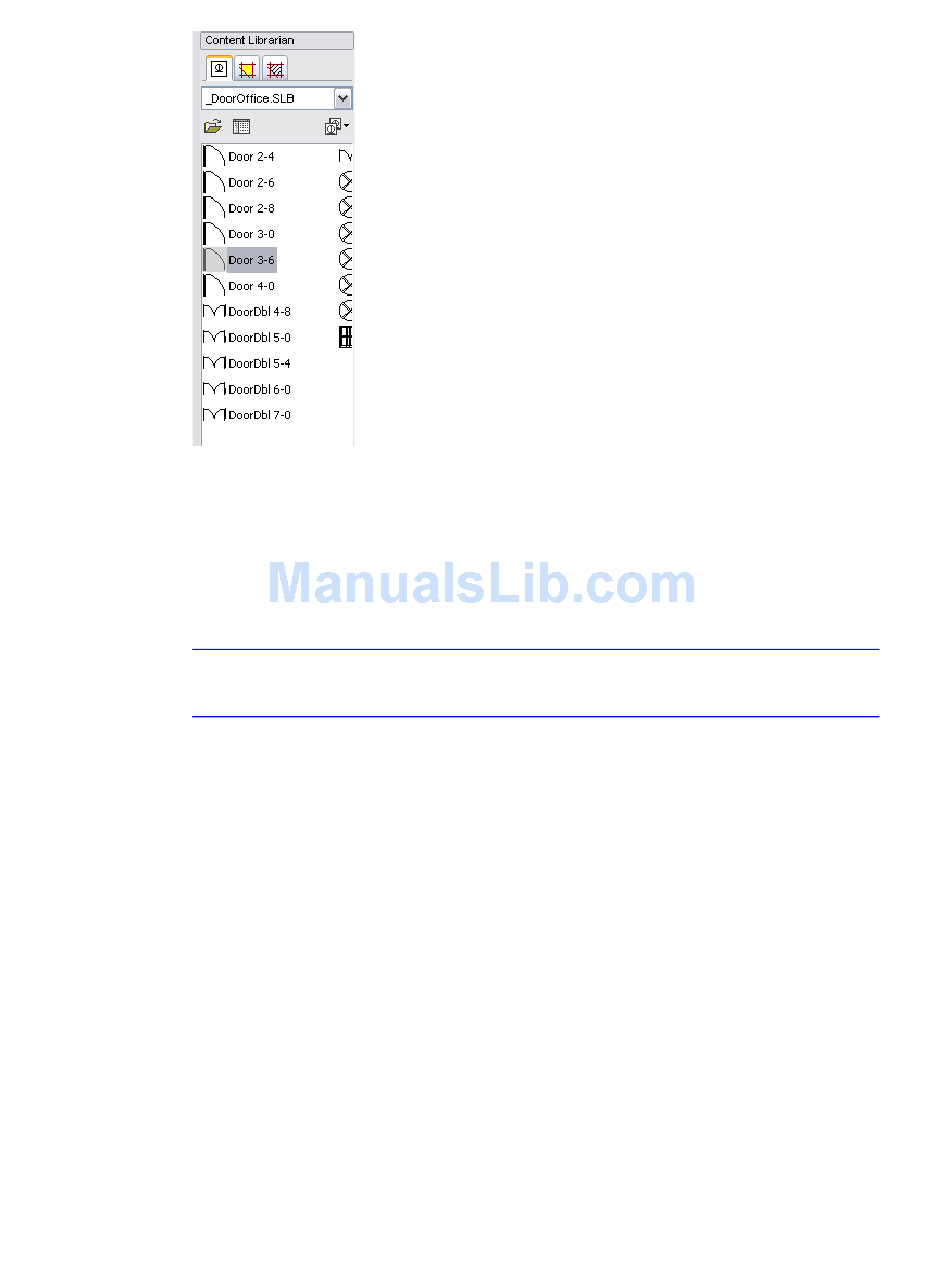

In the Content Librarian, locate Door 3-6 (a door that is 3 ft, 6 inches
wide).
4
Click Door 3-6 and drag it into the drawing. When the symbol is close to
the bottom-left corner of the drawing, release the mouse button. Then,
move the pointer up slightly, and click to place the door so that it opens
into the office space.
Tip
pressing CTRL+Z on the keyboard.
5
Right-click to end the command.
Your drawing should match the following illustration.
|
82
Tutorial 3 — Create an Office Layout Drawing
You can always "undo" an action, like the placement of the door, by
