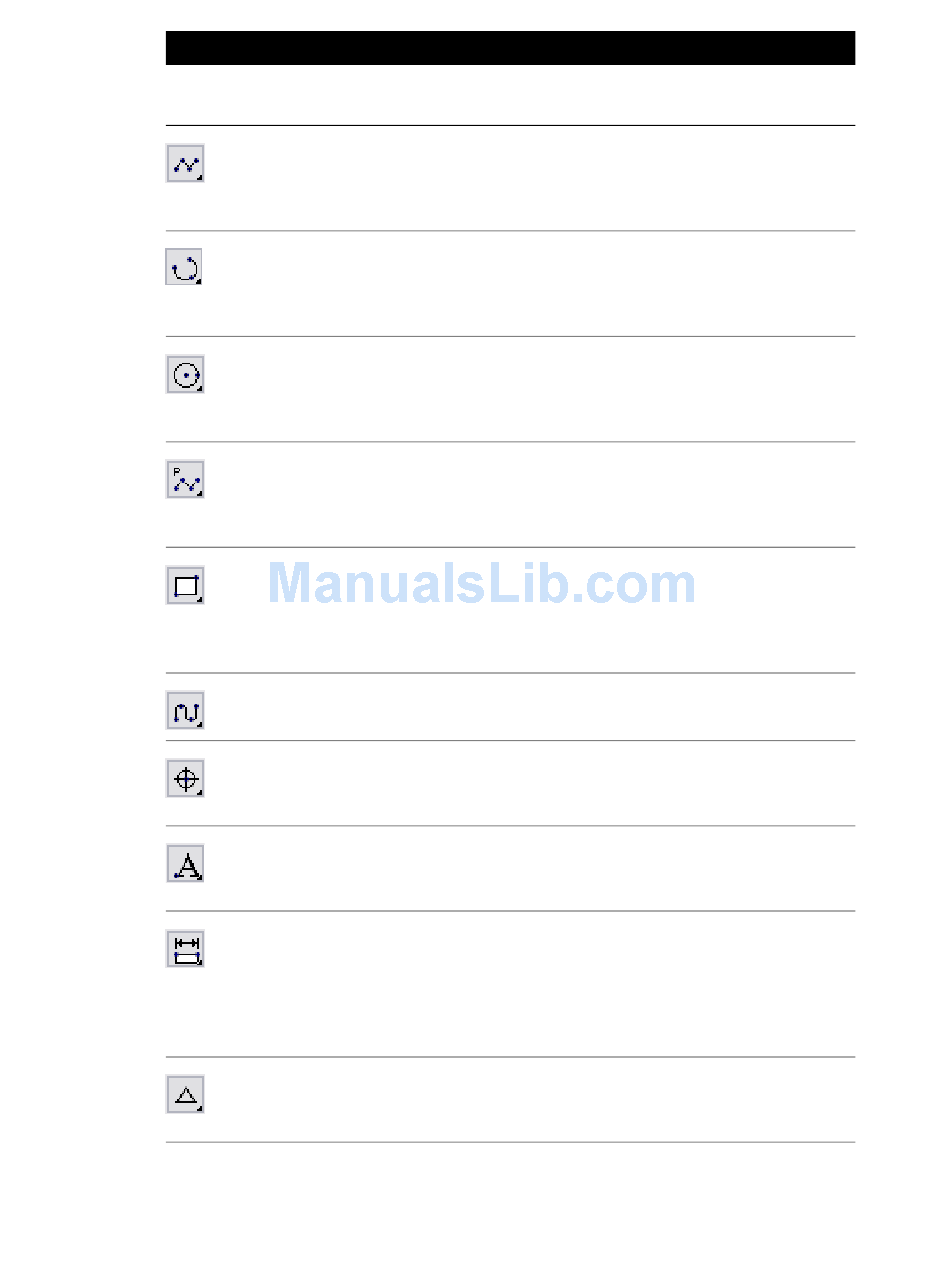

All-In-One Toolbar buttons (continued)
Toolbar
button
|
26
Chapter 3 AutoSketch Basics
Button name Description
Line Draws lines and line variations. The Line toolset has
these buttons: Line Single; Line Segment; Line
Multiple; Line Double; Line Tangent; Line
Perpendicular; Line Angle.
Arc Draws circular arcs and elliptical arcs. The Arc
toolset has these buttons: 3 Point Arc; 2 Points and
Center Arc; 2 Points and Angle Arc; Elliptical Arc
Rectangle; Elliptical Arc Axes.
Circle Draws circles and ellipses. The Circle toolset has
these buttons: Center, Side Circle; Side, Side Circle;
3 Point Circle; Center, Radius Circle; Circle Tangent
2; Circle Tangent 3; Ellipse Rectangle; Ellipse Axes.
Polyline Draws polylines. The Polyline toolset has these
buttons: Single Polyline; Polyline Segment;
Perpendicular Polyline; Center Polyline; Sketch
Polyline.
Polygon Draws polygons. The Polygon toolset has these
buttons: Rectangle; Rotated Rectangle; Regular:
Center, Edge; Regular: Edge, Opposite; Regular:
Edge, Adjacent; Regular: Center, Radius; Irregular
Polygon; Irregular Cloud.
Curve Draws fitted and spline curves. The Curve toolset
has these buttons: Fitted Curve; Spline Curve.
Marker Marks points in your drawing. The Marker toolset
has these buttons: Marker Point; Marker Align
Entity; Marker Align Endpoint.
Text Enters a line or paragraph of text in your
drawing.The Text toolset has these buttons: Text
Point; Text Rectangle.
Dimension Draws dimension lines. The Dimension toolset has
these buttons: Horizontal Dimension; Vertical
Dimension; Rotated Dimension; Aligned
Dimension; Angular Dimension; Radius Dimension;
Diameter Dimension; Centerline Dimension;
Ordinate Dimension; Leader.
Duplicate Creates a duplicate of a selected entity and places it
at a specific offset distance. The Duplicate toolset
has these buttons: Parallel; Offset.
