Next, create a break in a line.
18 On the All-In-One toolbar, click and hold the Trim Edge button.
19 On the toolset, drag the pointer to select Trim Break.
20 In the Trim Break section of the drawing, click anywhere on the horizontal
line. Then, move the pointer to the center of the line, and click to create
the break point. Right-click to end the command.

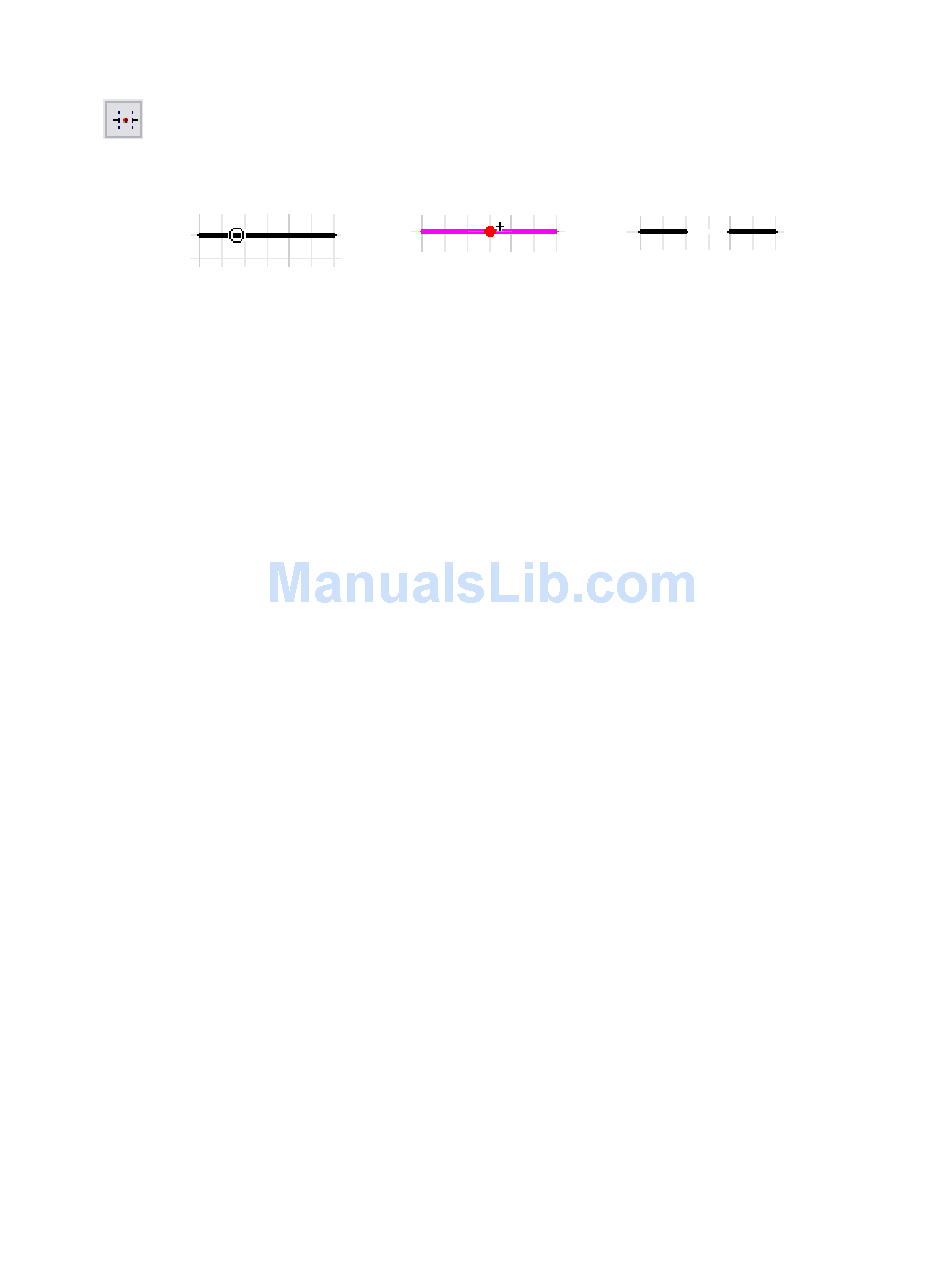

first selection
Example of a line broken into two equal sections
21 On the File menu, click Close.
22 In the Save Changes to Drawing message, click No.
Now that you understand how to create different kinds of entities using the
Draw menu and the All-In-One toolbar, and how to trim entities, you can
move on to more challenging exercises.
|
50
Tutorial 1 — Create and Trim Entities
second selection result
