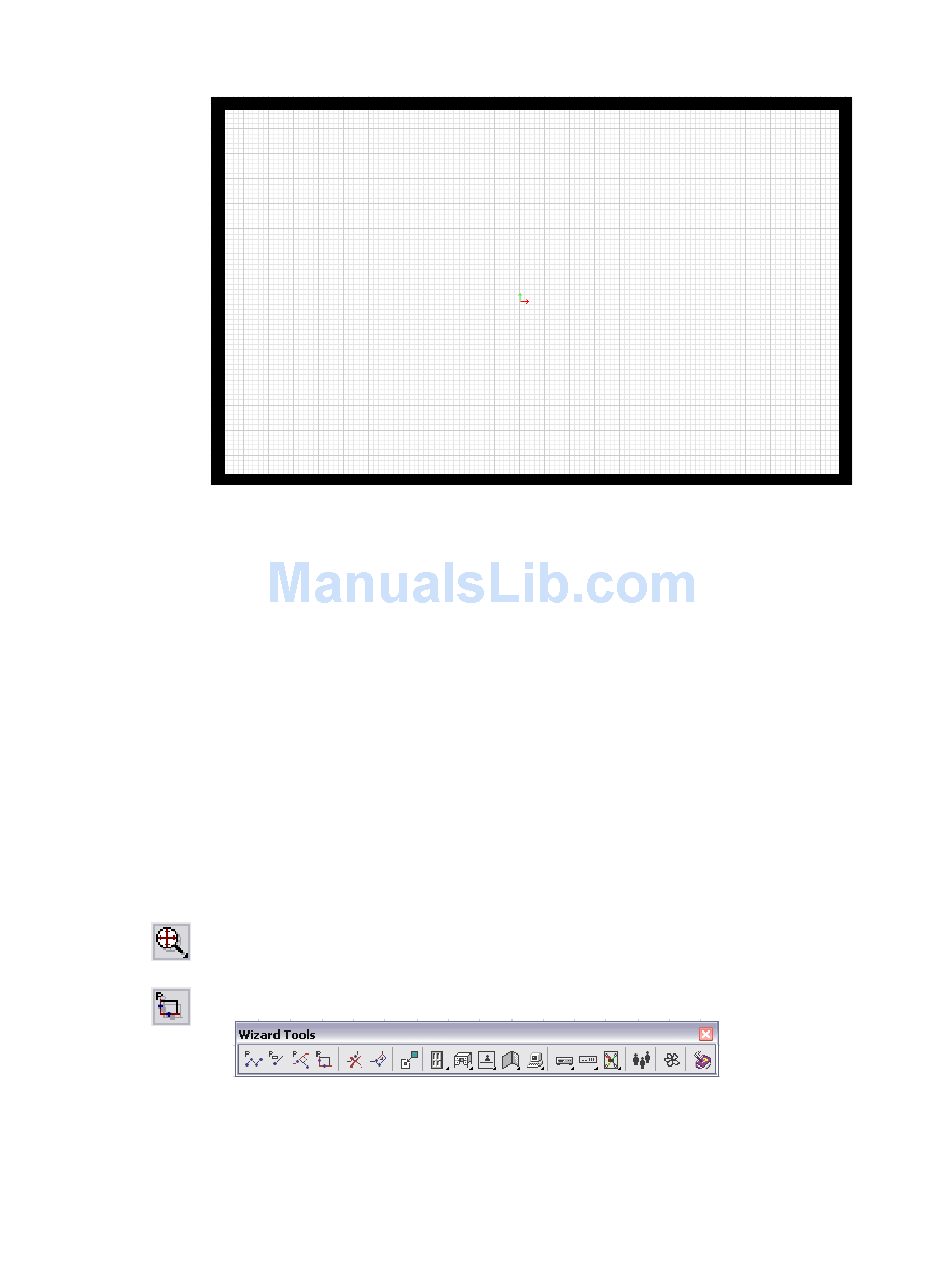

The drawing should now match the grid settings in the following
illustration.
Now that you have set the units, reference grid, and scale of the office layout,
you can create the partition walls of the office.

Create Office Partition Walls

In this exercise, you learn to
❒ Add a partition wall to the office space.
❒ Zoom to display all entities in the drawing using the Extent command.
❒ Choose a corner polyline using the Wizard Tools toolbar.
❒ Set the width and lengths of the walls using the edit bar.
To create office partition walls
1 On All-In-One toolbar, click and hold the Zoom button.
2 On the Zoom toolset, drag the pointer to select View Extent.
The drawing window now includes the entire office shell.
3 On the Wizard Tools toolbar, click Corner Polyline.
The edit bar displays tools related to editing a corner polyline. The pointer
in the drawing window changes to a hollow circle.
Create Office Partition Walls
|
