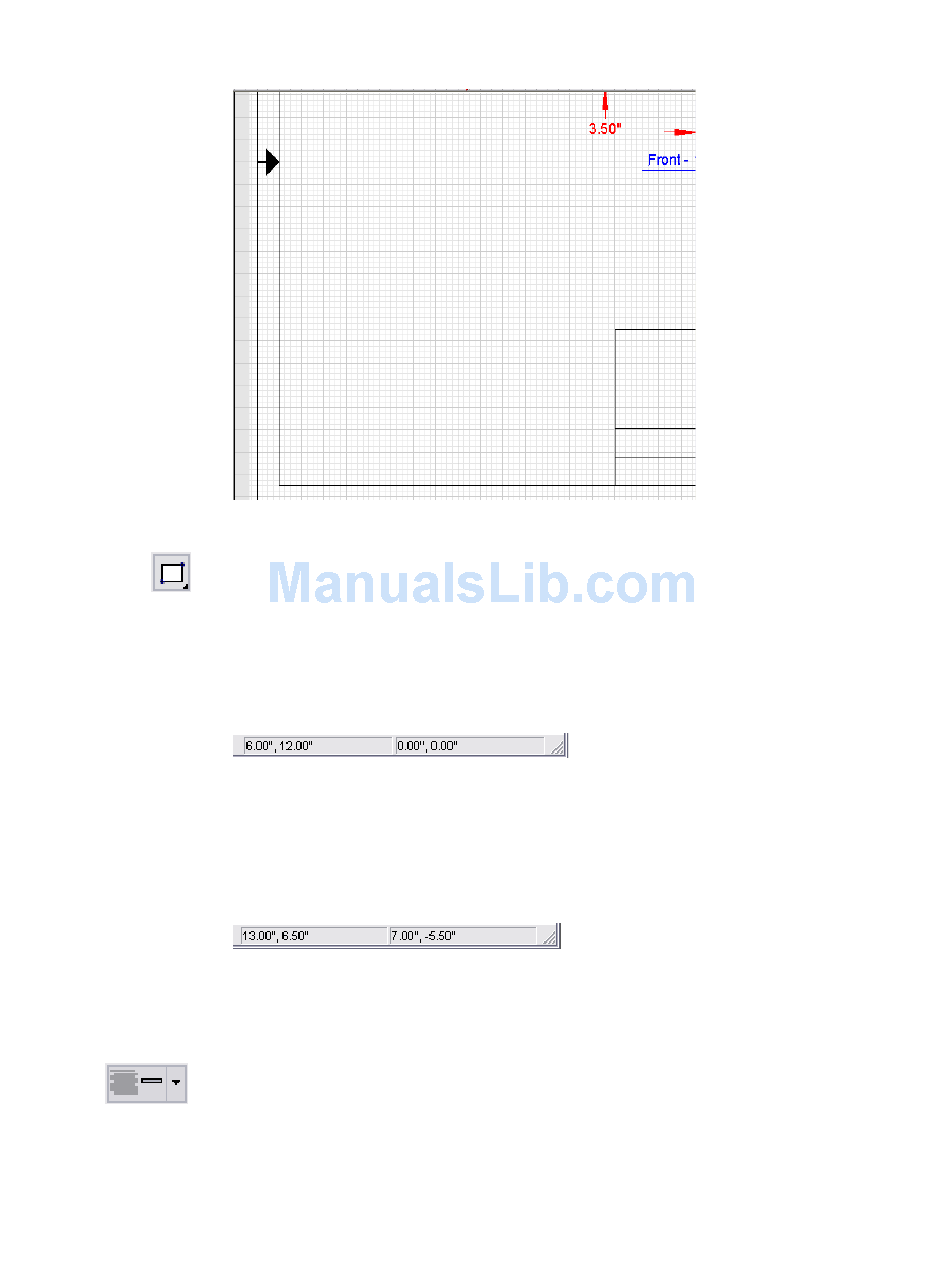

You should be zoomed in to the lower-left corner of the drawing, as shown
in the following illustration.
5 On the All-In-One toolbar, click and hold the Polygon button.
6 On the toolset, drag the pointer to select Rectangle.
First, create the floor of the birdhouse. The floor measures 7 inches wide
by 5.5 inches long.
7 Move the pointer. Click when 6.00", 12.00" is displayed on the status bar
in the Absolute Coordinates dial.
You have just set the first point. From the point of origin, the first point is
located 6 inches along the x axis and 12 inches along the y axis.
8 Drag your pointer to the right and down until the Absolute Coordinates
dial displays the second point at 13.00", 6.50". Click to place the second
point. Then, right-click to end the command.
Now, set the line width of the rectangle to match the line widths of the
other entities in this drawing (0.039'').
9 Click the rectangle you just created.
10 On the property bar, locate the Width button. Click the arrow to the right
of the button, and from the list of line widths, select 0.039''.
The rectangle should look similar to the following illustration:
Create the Floor of the Birdhouse
|
55
