8 On the toolset, drag the pointer to select Vertical Dimension.
9 Click the lower-left corner of the entity, and drag the pointer up until you
snap to the upper-left corner. Click to set the vertical dimension.
You need to move the dimension closer to the entity.
You may need to pan to the left a little to see the dimension.
Note
10 Click the vertical dimension you just created. Then, click and hold the
arrow to the left of the dimension, and drag the dimension to the right
until it is close to the vertical line you just dimensioned. Right-click to end
the command.

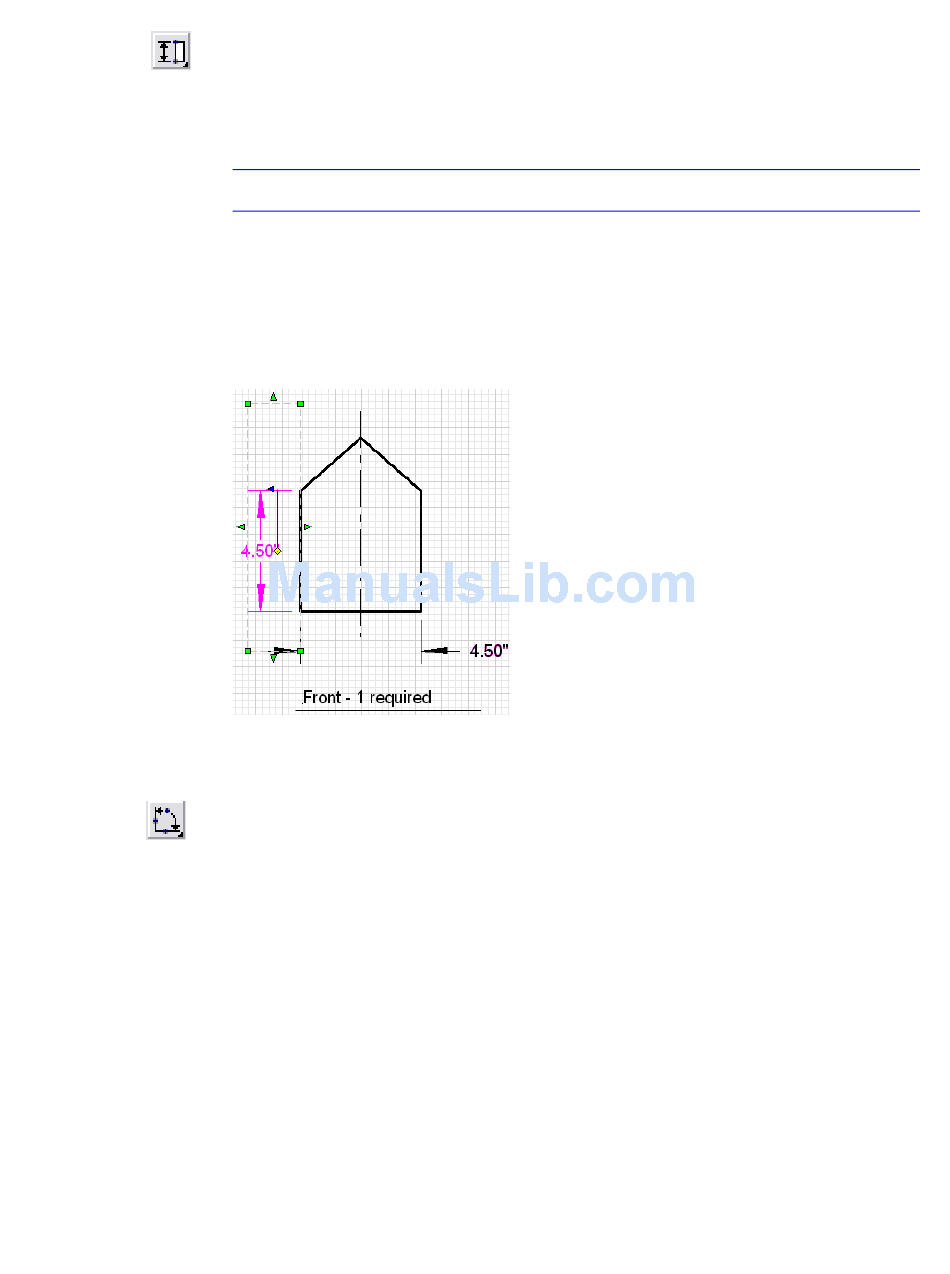

Your drawing should look similar to the following illustration.
Next, create the angular dimension.
11 On the All-In-One toolbar, click and hold the Dimension button.
12 On the toolset, drag the pointer to select Angular Dimension.
13 Click anywhere on the sloped line on the right to select it. Drag the
pointer straight up, and when the Absolute Coordinates dial shows 9.50",
28.00", click to place the dimension.
Following is an illustration of the entity after all dimensions are added
and moved.
Add Dimensions to the Back
|
65
