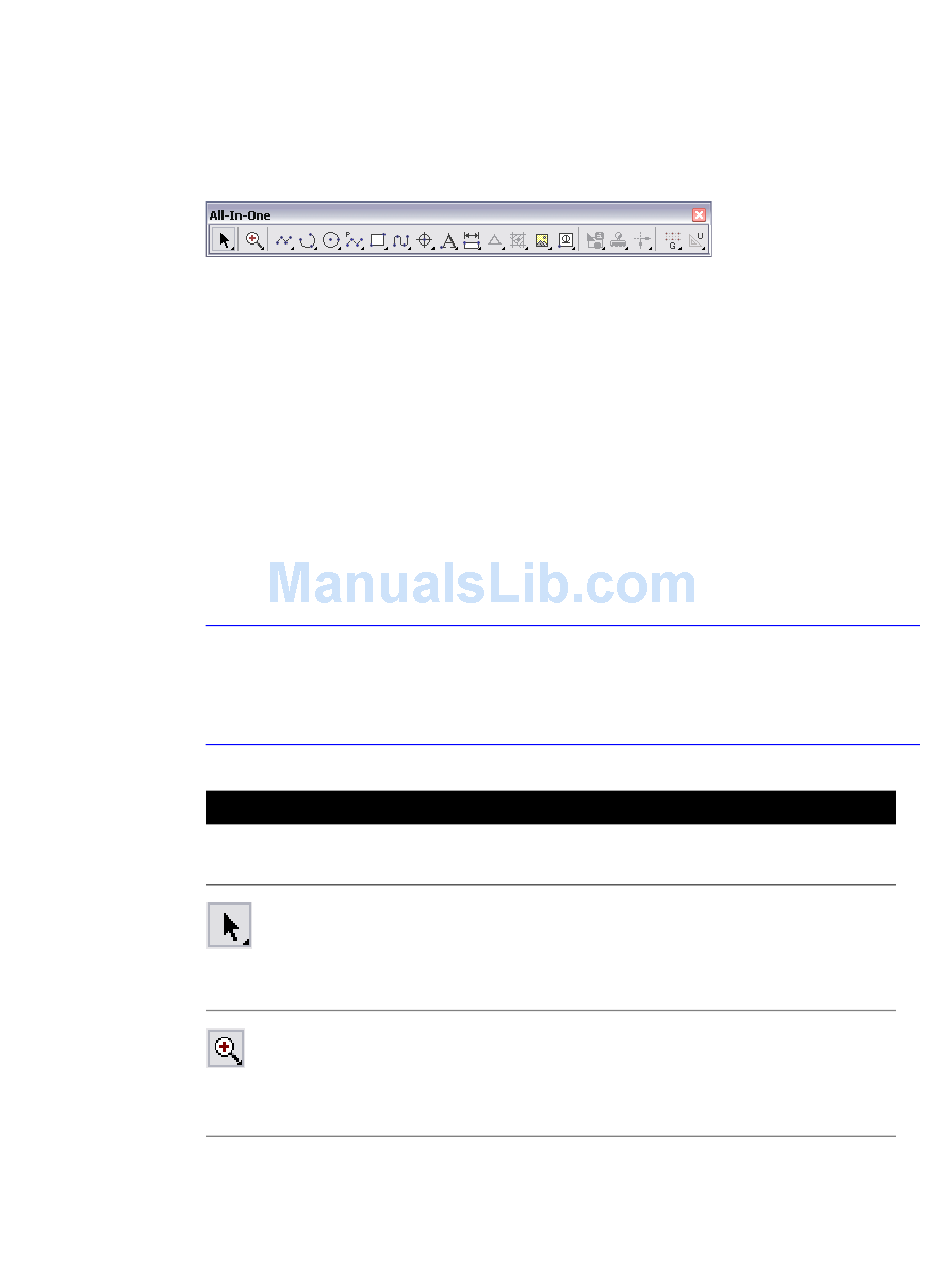

All-In-One Toolbar

As its name suggests, the All-In-One toolbar contains buttons that help you
perform most of the tasks that you need to do to create a drawing. Take a few
moments to understand how this toolbar works before doing the exercises in
this guide.
Most of the buttons on the AutoSketch specialized toolbars can be found on
the All-In-One Toolbar. For example, the All-In-One toolbar contains all of
the 15 snap tools on the Snap toolbar. Simply click and hold the Snap to Grid
button on the All-In-One toolbar, and the other Snap tools are displayed on
the toolbar that appears, called the toolset. To display a tooltip for any toolbar
button on a toolset, keep the mouse button depressed and place your pointer
over the button. To select a button, release the mouse button.
In the exercises in this guide, you are instructed to use the Draw menu, the
All-In-One toolbar, and other toolbars to complete the tasks. You may find
that many of the same tasks can be performed by using different toolbars
included in AutoSketch. You can learn more about those toolbars in the Help
system.
The following table shows the buttons that are displayed on the All-In-
Note
One toolbar when you first use AutoSketch. When you click a button on a
toolset, that button "sticks," or remains the active button, until you click a dif-
ferent button on the same toolset.
All-In-One Toolbar buttons
Toolbar Button name
button
Select
Zoom
Description
Selects one or more entities. The Select toolset has
these buttons: Select Direct; Select All; Modify
Selection; Select Inside Polygon; Select Fence; Clear
Selection; Marquee; Irregular Marquee; and Clear
Marquee.
Gets a closer view of a portion of your drawing. The
Zoom toolset has these buttons: Redraw; Zoom
Realtime; Zoom In; Zoom Out; Pan Realtime; Pan;
Last View; Next View; View Selection; View Page;
View Extent; View Save; View Recall.
Understand the User Interface
|
25
