first selection

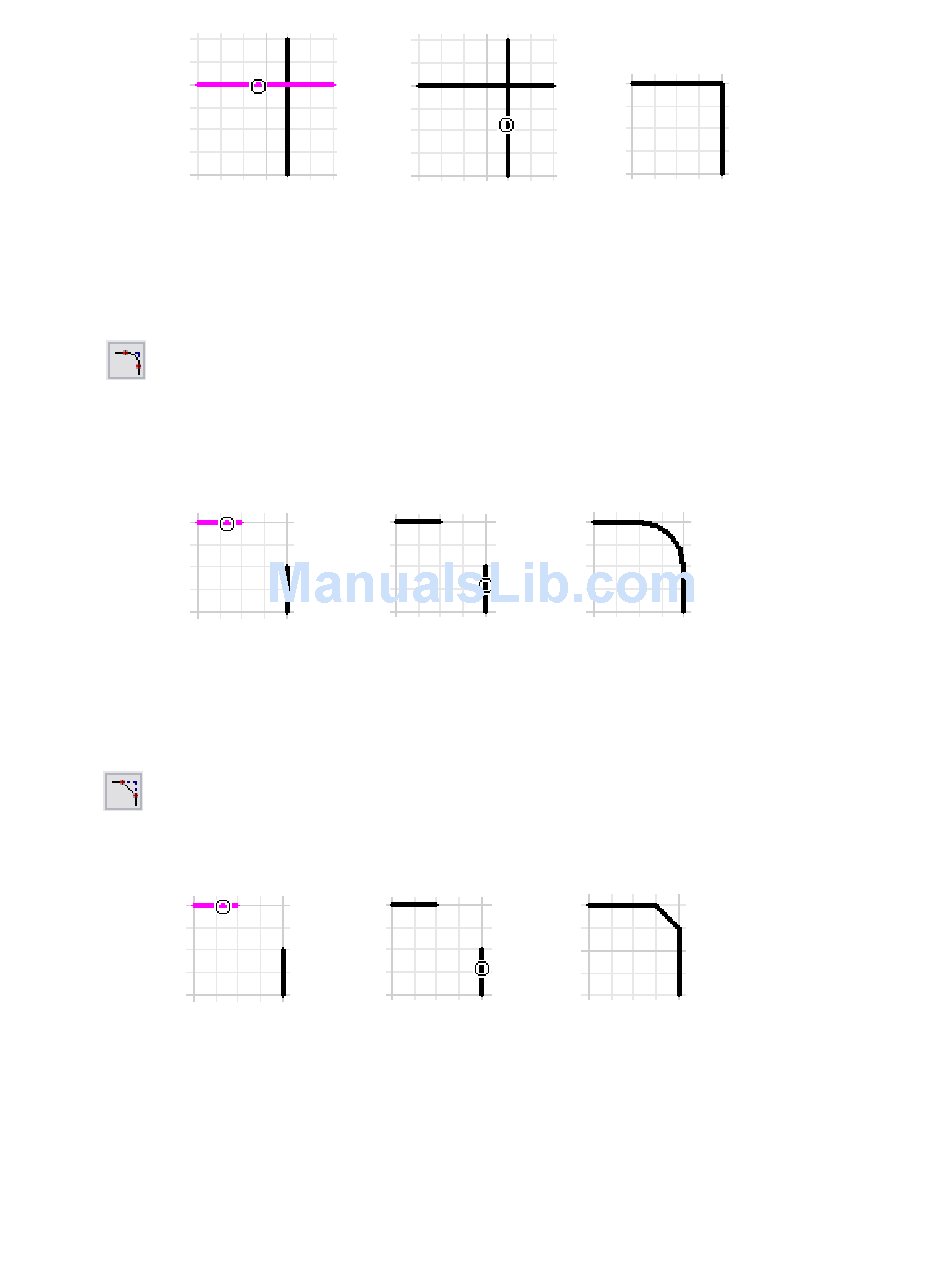

Example of two intersecting lines trimmed to form a corner
Now, create a rounded corner.
8 On the All-In-One toolbar, click and hold the Trim Corner button.
9 On the toolset, drag the pointer to select Trim Round.
10 In the drawing, locate Trim Round, in the upper-right section of the
drawing.
11 In the Trim Round section of the drawing, click the horizontal line. Then,
click the vertical line to the right of that horizontal line. Right-click to end
the command.
first selection
Example of two perpendicular lines joining to form a rounded corner
Next, create a beveled corner.
12 On the All-In-One toolbar, click and hold the Trim Round button.
13 On the toolset, drag the pointer to select Trim Bevel.
14 In the Trim Bevel section of the drawing, click the horizontal line. Then,
click the vertical line to the right of that horizontal line. Right-click to end
the command.
first selection
Example of two perpendicular lines joining to form a beveled corner
|
48
Tutorial 1 — Create and Trim Entities
second selection
second selection
second selection
result
result
result
