To group the front

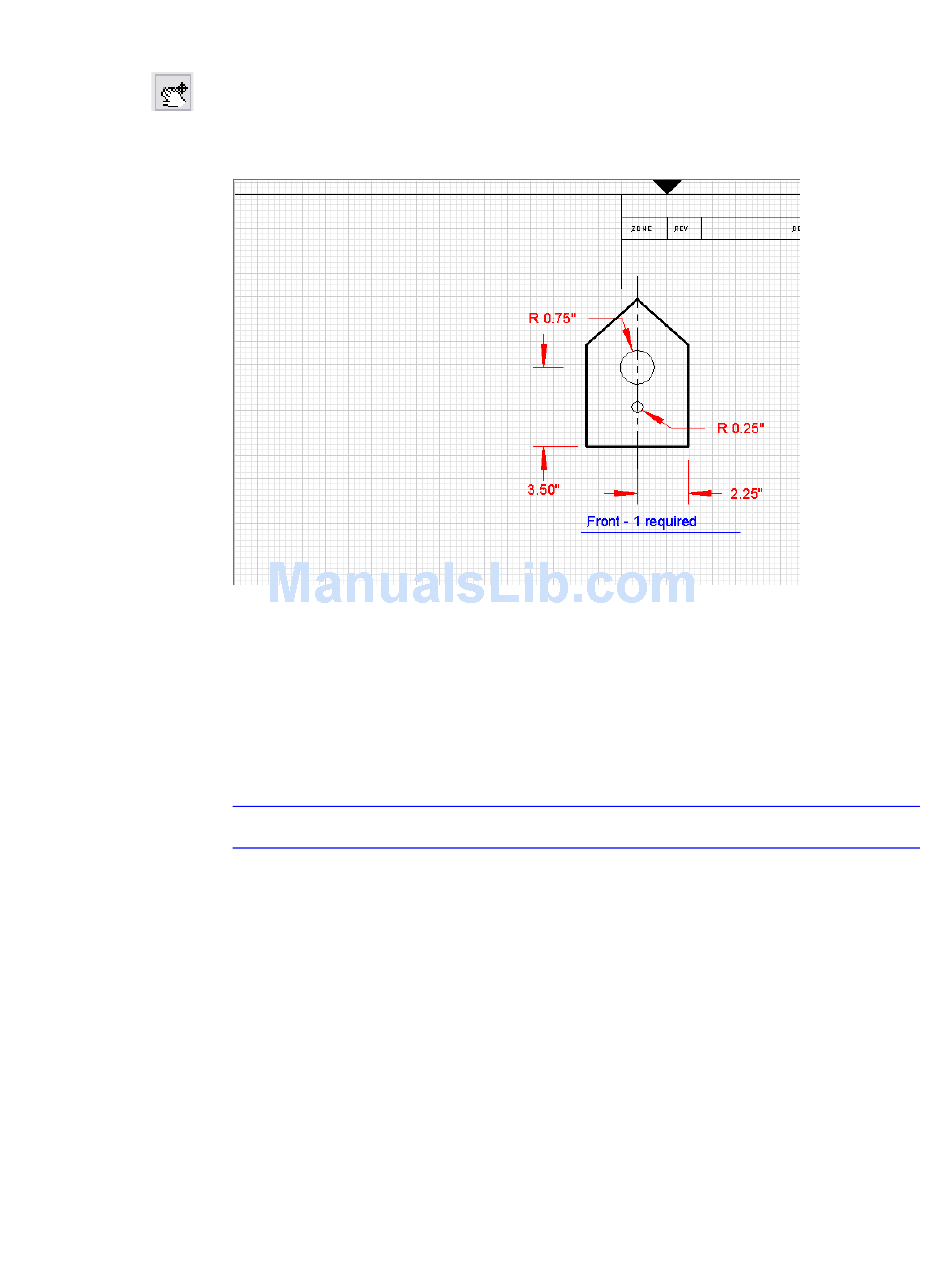

1 On the standard toolbar, click Pan Realtime. Pan up and to the left of the
drawing until the front of the birdhouse takes up the right half of the
drawing window, and the left half contains no entities. Then, right-click
and click Cancel to end the Pan command.
2 On the front of the birdhouse, click the left vertical line, and while press-
ing the SHIFT key, click the following items:
■ The remaining four lines that make up the front entity
■ The vertical line that runs through the middle of the entity
■ The title "Front - 1 Required"
■ The line below the title
Do not click any dimensions or circles.
Note
The entities you selected are magenta in the drawing, and the entire
selected area looks like the following illustration:
Create the Back of the Birdhouse by Grouping and Rubber-Stamping
|
