11
On the File menu, click Save. Do not close the drawing.
Add Dimensions to the Floor of the
Birdhouse
In this exercise, you learn to
❒ Add horizontal and vertical dimensions.
❒ Move a dimension closer to its entity.
❒ Place dimensions on the Dimensions layer.
You have just created the first entity for the birdhouse. Next, add dimensions
to the drawing.

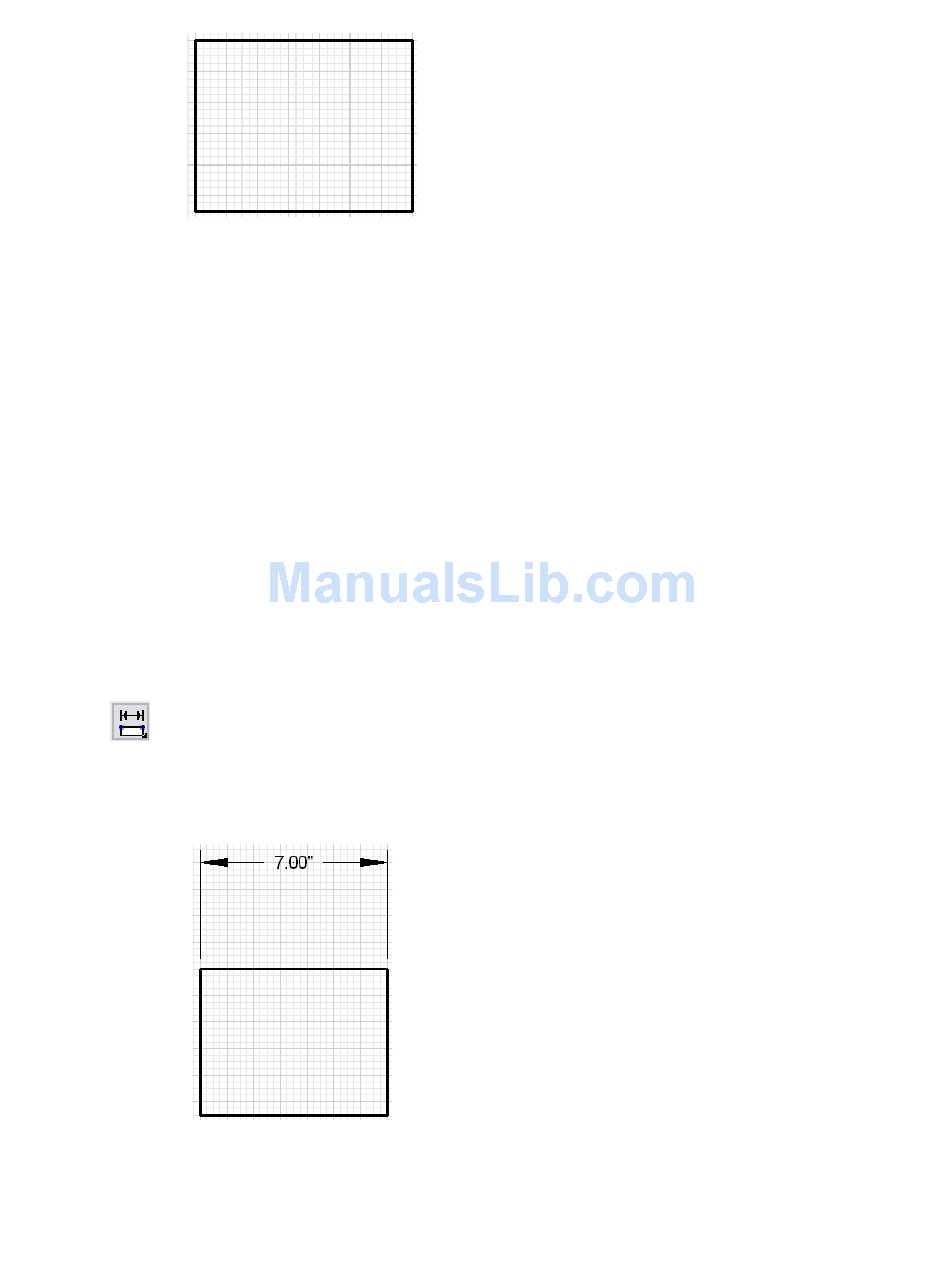

To add dimensions to the birdhouse floor
1
On the All-In-One toolbar, click and hold the Dimension button.
2
On the toolset, drag the pointer to select Horizontal Dimension.
3
Click the upper-left corner of the floor (the rectangle you just created),
and click again when the pointer snaps to the upper-right corner. Then,
right-click to end the Dimension command.
|
56
Tutorial 2 — Create a Birdhouse Drawing
