Add a Title to the Back

In this exercise, you learn to
❒ Add a title to the back entity by editing an existing title.
❒ Add the new title to the Notes layer.
Add a title to the back

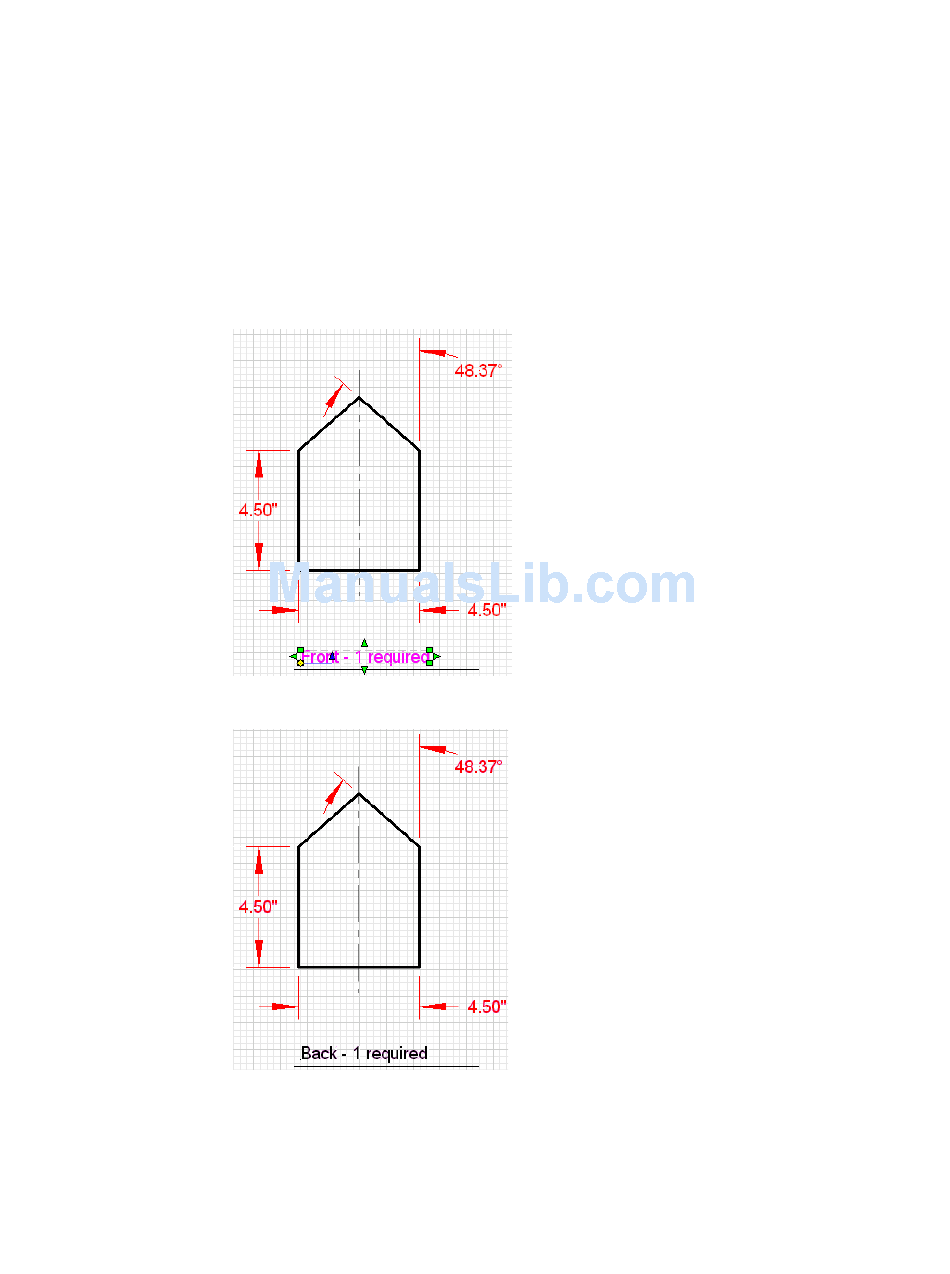

1 Below the entity that you just added dimensions to, click the title "Front
- 1 Required". Right-click, and then click Edit Text.
2 In the title, select the word "Front", and type the word Back.
Now, add the new text and the text line to the Notes layer.
Add a Title to the Back
|
67
