Next, join two divided lines and then trim the extraneous lines in an
intersection.
15 On the All-In-One toolbar, click and hold the Trim Bevel button.
16 On the toolset, drag the pointer to select Trim Edge.
17 In the Trim Edge section of the drawing, do the following, in order:
■ Click the left part of the horizontal line.
■ Click the left vertical line.
■ Click the right vertical line, just below the diagonal line.
■ Click the diagonal line just to the right of the vertical line that you just
selected.

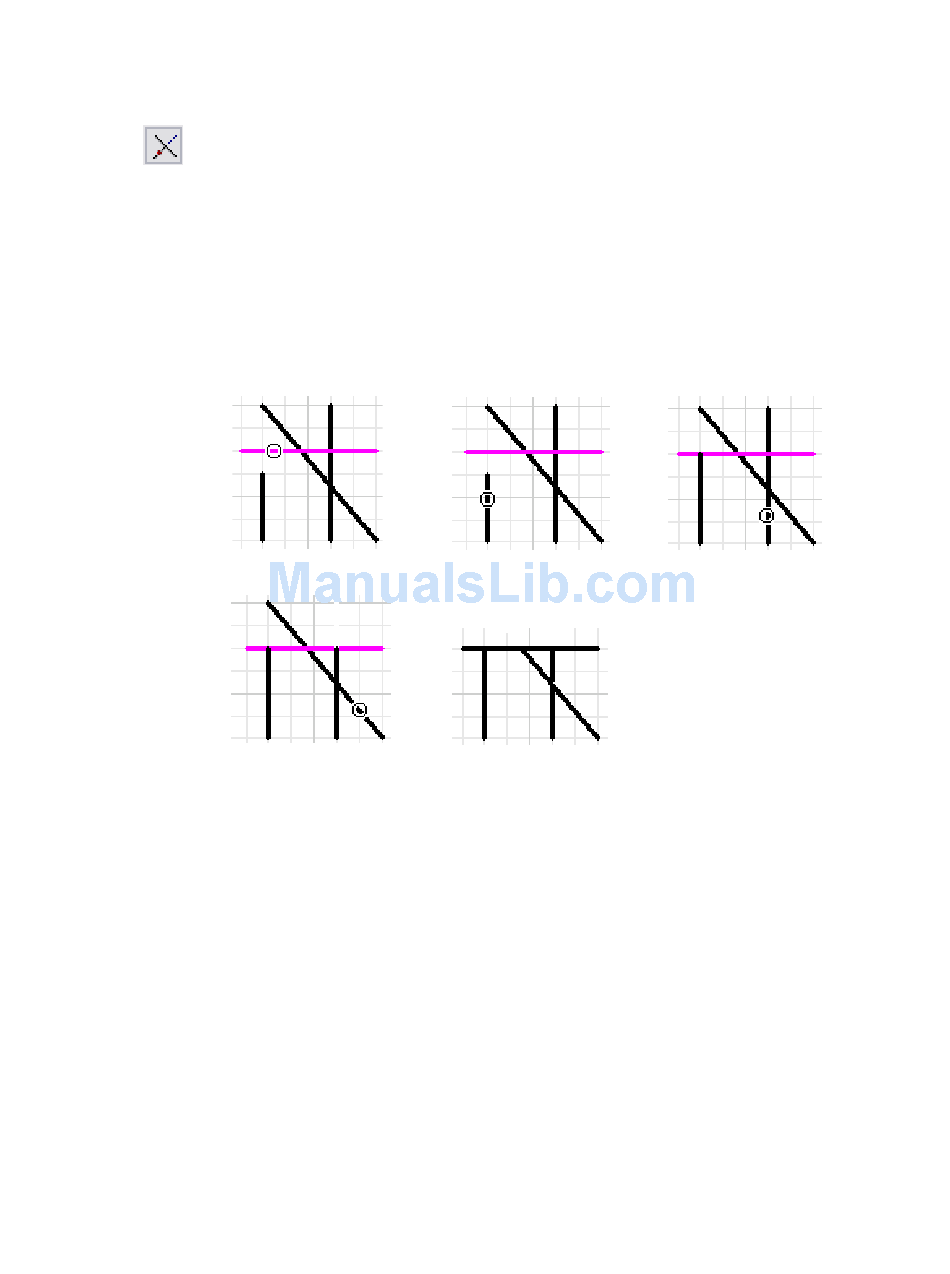

Your drawing should match the last picture in the following sequence of
illustrations.
click horizontal line
click diagonal line
Example of two divided perpendicular lines joined and extraneous lines trimmed
click left vertical line
result
click right vertical line
Trim an Entity
|
49
