Set Units, Reference Grid, and Scale

In this exercise, you learn to
❒ Right-click to access the Drawing Options dialog box.
❒ Set units, reference grid, and scale in the Drawing Options dialog box.
The office layout drawing you are creating requires some adjustment of the
preset units, reference grid, and scale settings. You can adjust all of these
settings in the Drawing Options dialog box.
To set units, reference grid, and scale
1 In a blank area of the drawing, right-click, and then click Drawing
Options.

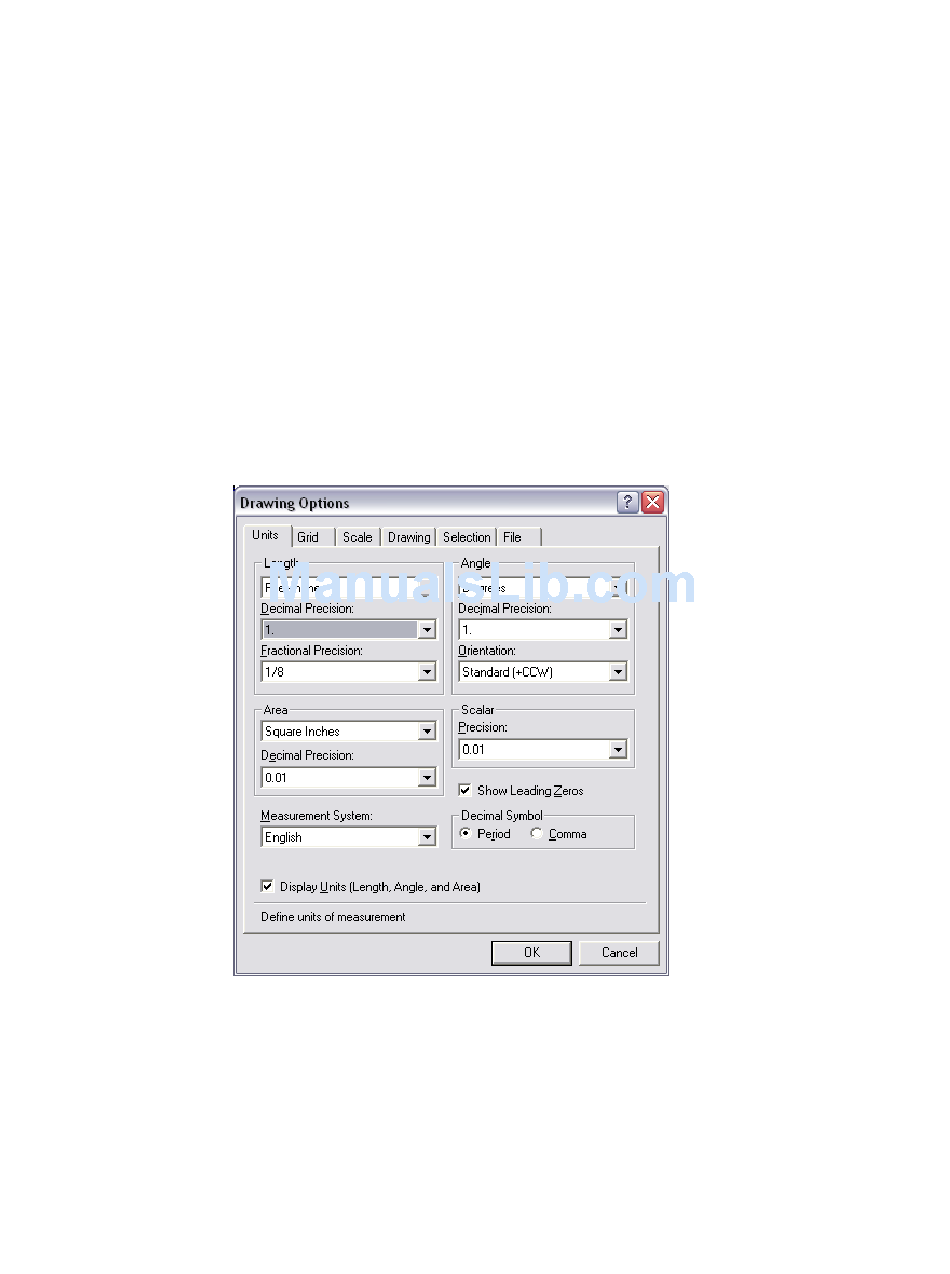

2 In the Drawing Options dialog box, Units tab, under Length, click the
arrow to the right of the Decimal Precision box, and select 1. from the list.
3 On the Grid tab, select the Rectangular subtab (as shown in the following
illustration), and then change these settings:
■
■
In the Snap Interval box, enter 6".
In the Major Interval box, enter 1'.
