12 In the drawing window, move the pointer over the edge of the table until
the Centerpoint snap is displayed. Then, click to add the arrayed chairs.

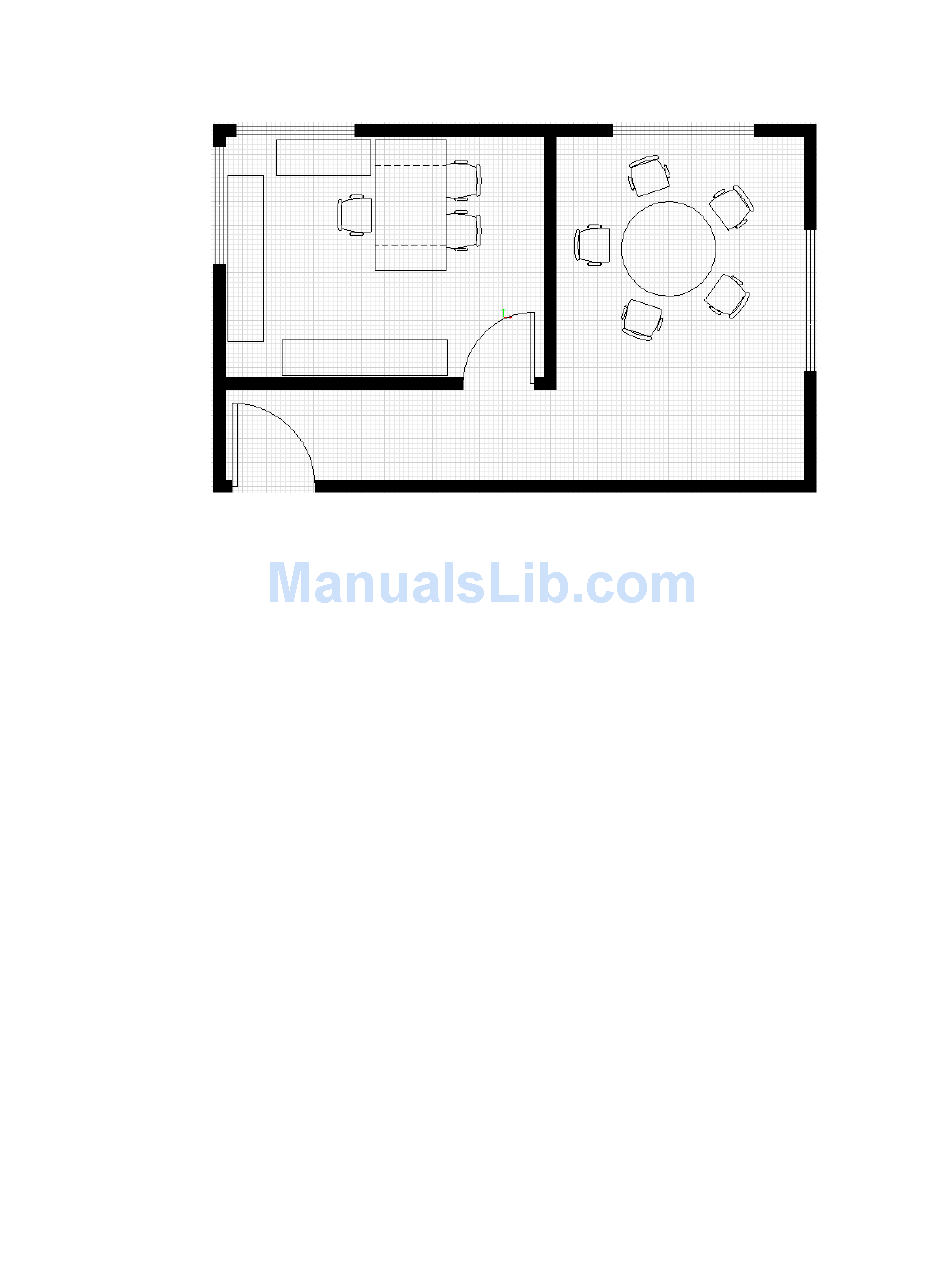

Your drawing should match the following illustration.
Great work! You have completed the third tutorial. You should now be able
to create entities, place symbols, set dimensions, add layers, use wizards, and
create arrays.
You can finish this drawing by setting dimensions, adding a title to the draw-
ing, and placing the entities on appropriate layers. Use what you learned in
the second tutorial, "Create a Birdhouse Drawing," to complete this drawing.
Remember that you can always get detailed information from the Help
system by clicking AutoSketch Help on the Help menu.
Create a Round Table and Chairs
|
