Understanding the control panel buttons
The control panel has two layers of functionality:
•
Layer 1, with the control panel cover closed, contains basic functions like FormFeed, Tear Off, and taking the printer
online or offline.
•
Layer 2, with the control panel cover open, contains more advanced functions like selecting a macro and changing
printer menu settings.

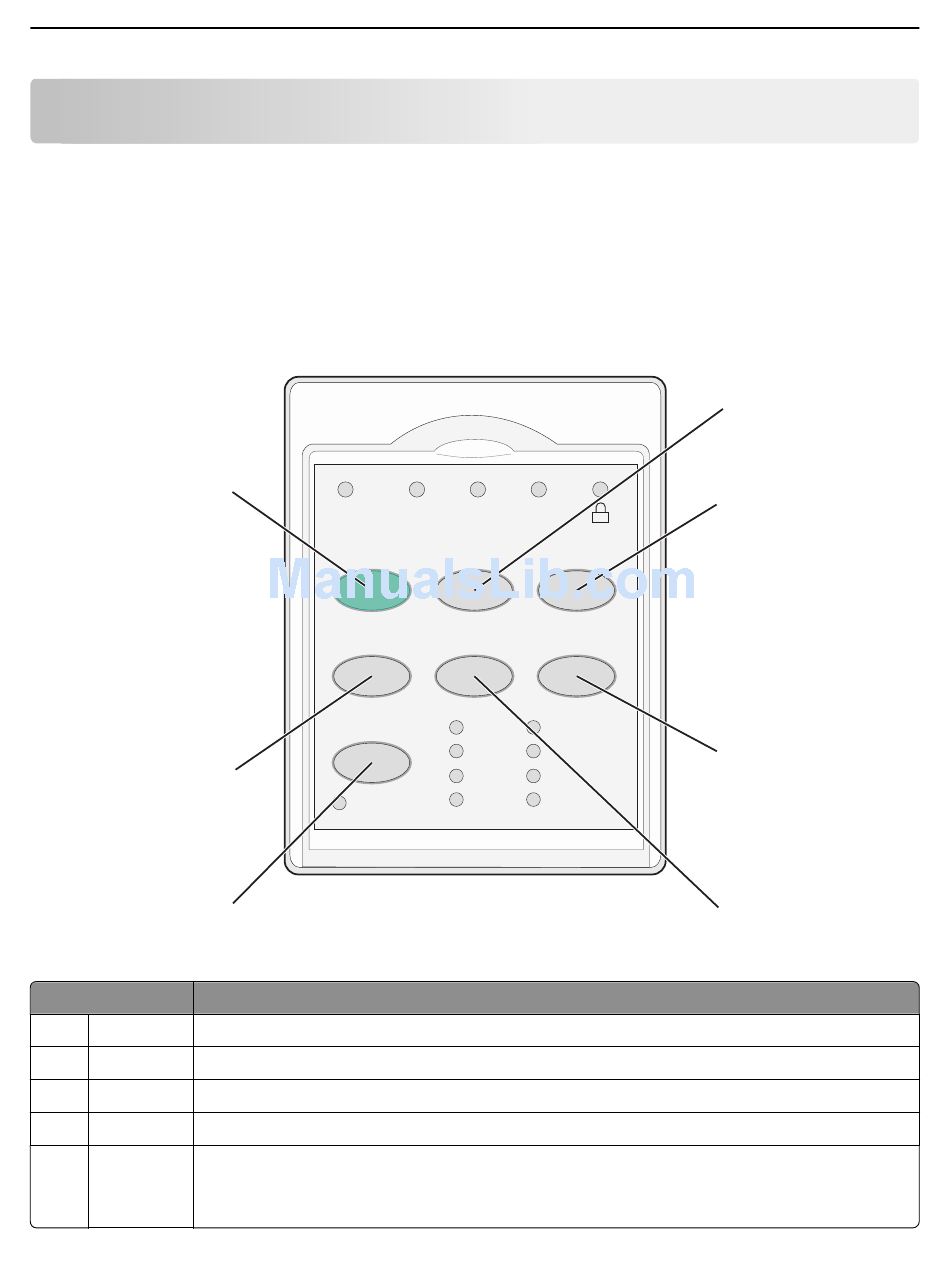

Layer 1 control panel buttons
Button
Description
1
LineFeed
This advances the paper one line.
2
FormFeed
This advances the paper to the next Top‑Of‑Form.
3
Tractor
This alternates between Tractor 1 and Tractor 2 if the optional Tractor 2 is installed.
4
Load/Unload This loads paper to the current Top‑Of‑Form or unloads paper to a parked position.
5
Font
This selects one of the resident font styles.
Note: Repeatedly pressing the Font button cycles through the printer font selections. If you
continue pressing Font through a second pass, then the font selections will be locked.
7
Power
Start/Stop
Tear Off
Font
6
Lock
5
Ready
Tractor 2
Paper
Out
LineFeed
FormFeed
Load/Unload
Tractor
Courier
Orator
Prestige
Script
Gothic
Draft
Presentor
Fast Draft
1
2
3
4
