Learning about the printer

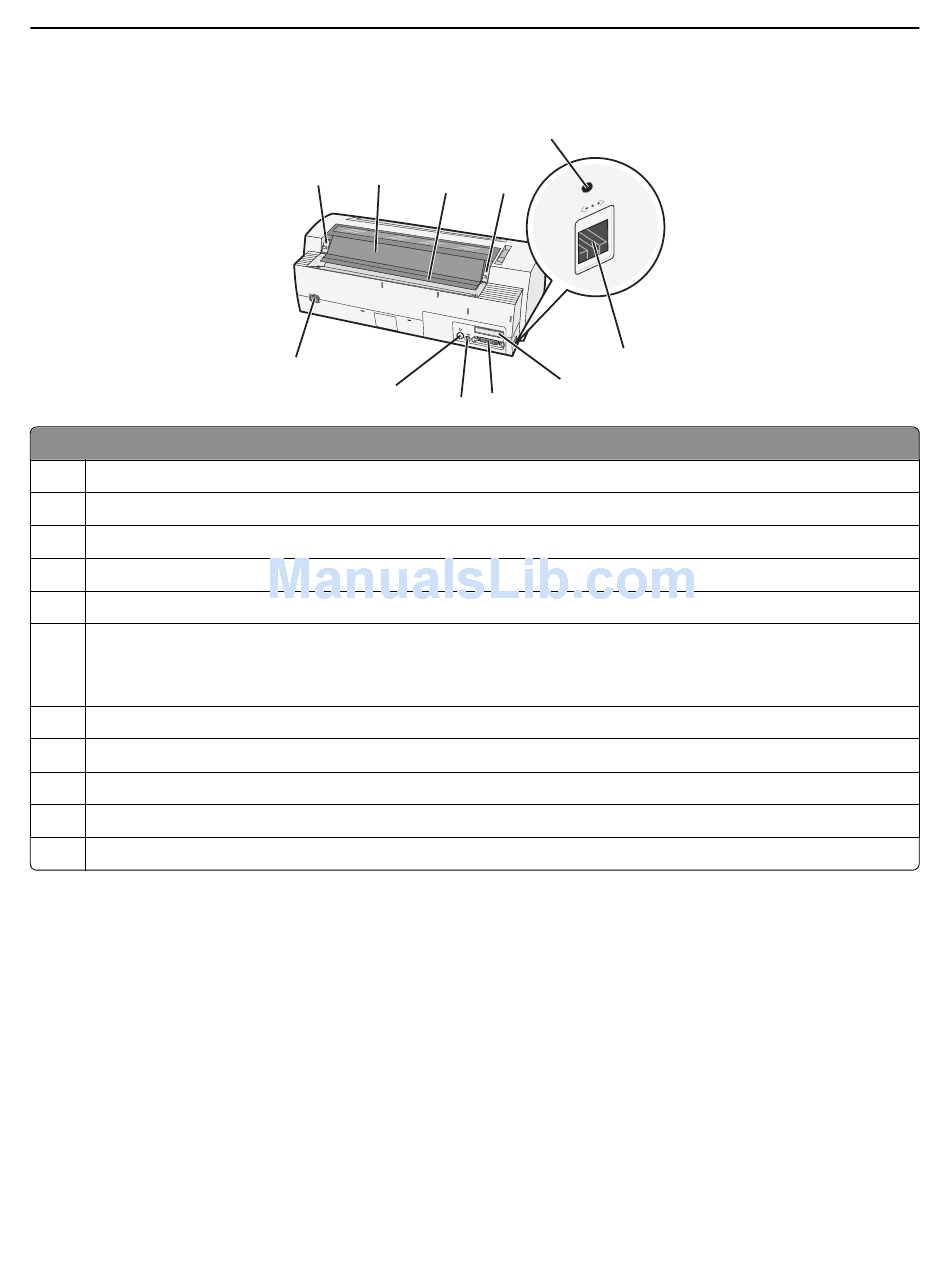

Printer back view
Part name
1 Ribbon access cover latch
2 Acoustic flap
3 Tear Off bar
4 Ribbon access cover latch
5 Recessed network button
6 Network connector
Warning—Potential Damage: Do not touch the network connector except when the printer is unplugged from
the electrical outlet.
7 Optional serial interface knockout
8 Parallel connector
9 USB connector
10 Optional Tractor 2 connector knockout
11 Power cord connector

Applying control panel overlays

The Lexmark Forms Printer 2500+ Series printers have control panel overlays available in different languages.
Note: There is an overlay label for layer 1 of the control panel and a different overlay label for layer 2 of the control
panel.
To apply an overlay in the language of your choice:
1
Peel the backing off of the layer 1 label, and then place the overlay directly over layer 1 of the control panel.
2
Open the control panel cover to access layer 2.
3
Peel the backing off of the layer 2 label, and then place the overlay directly over layer 2 of the control panel.
4
Close the control panel cover.
