Setting Top‑Of‑Form for continuous forms in pull mode
1
Plug the printer power cord to a properly grounded electrical outlet, and then press Start/Stop.
Note: The Paper Out light blinks if no paper is loaded.
2
Move the paper select lever down to the
3
Load continuous form paper on the pull tractor feed pins.
4
Open the control panel cover to access layer 2.
5
Press any paper movement button (Micro , Micro , or LineFeed) to move the paper to the Top‑Of‑Form position.
Note: Use the second sheet of continuous forms paper to set Top‑Of‑Form.
6

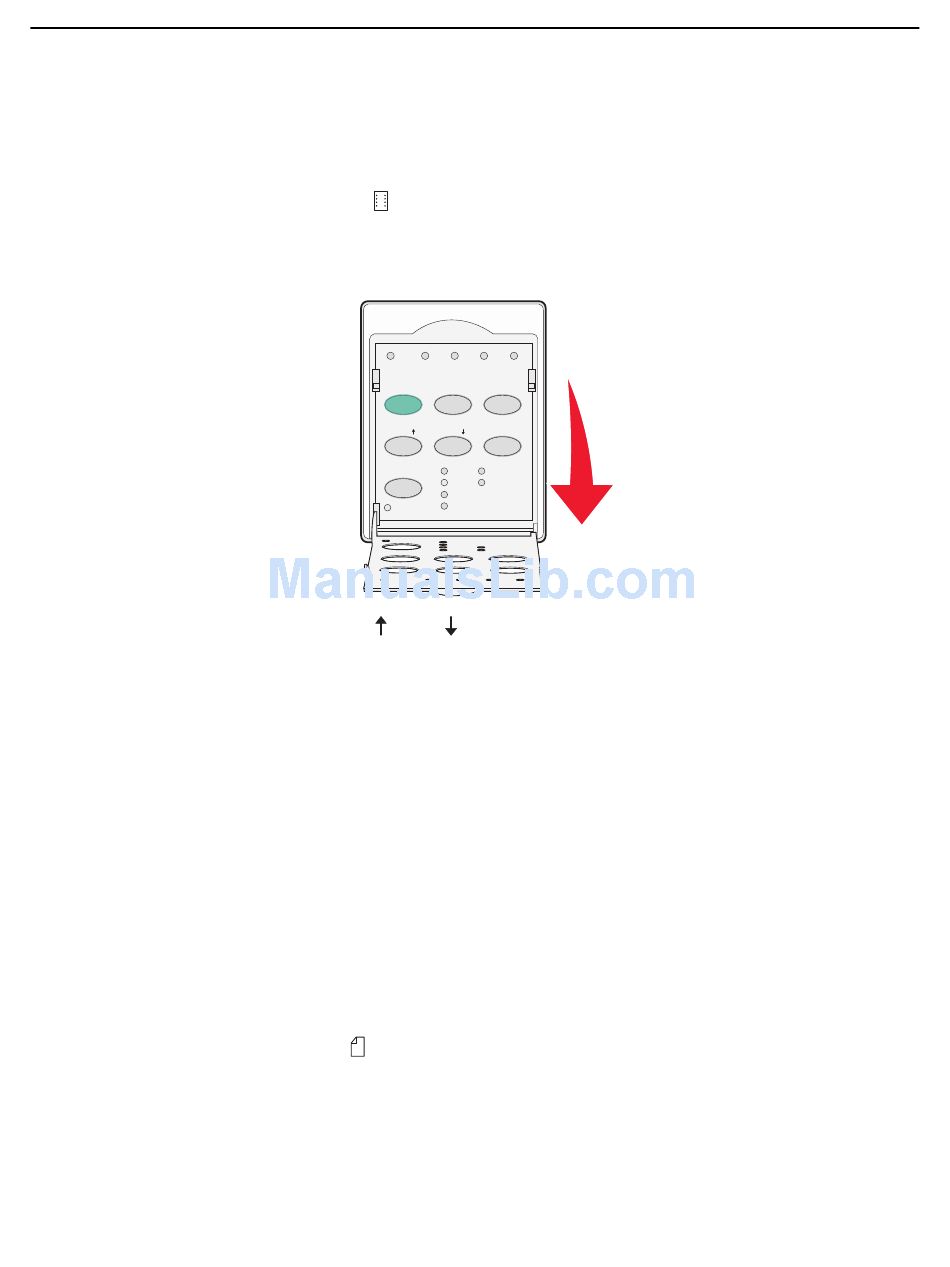

Press Set TOF to set and save Top‑Of‑Form.
7
Close the control panel cover.
Note: Top‑Of‑Form is not saved when the printer is unplugged from the electrical outlet or runs out of paper
when the printer is in pull tractor mode.
8
Press Start/Stop to set the printer online.
Setting Top‑Of‑Form for a cut form or an envelope
Top‑Of‑Form can range from minus one inch to plus 22 inches from the top of a cut form.
1
Clear the paper path.
The Paper Out light blinks if no paper is loaded. If the Paper Out light is off, tear off excess forms, and then press
Load/Unload. If a single form is loaded, press FormFeed to clear the paper path.
2
Move the paper select lever up to the
3
Load a cut sheet of paper or an envelope through the manual feeder.
•
If Auto Cut Sheet is set to On, the printer will move the paper or envelope to the current Top‑Of‑Form.
• If Auto Cut Sheet is set to Off, press FormFeed when the Paper Out light goes off.
position.
1 2 3 4
Power
Set TOF LineFeed Macro
Micro Micro Setup
10 20
Pitch
12 24
15
17
Lock
position.
