Front Loading Continuous Forms Using The Pull Tractor - Lexmark Dot Matrix User Manual

Loading paper
12

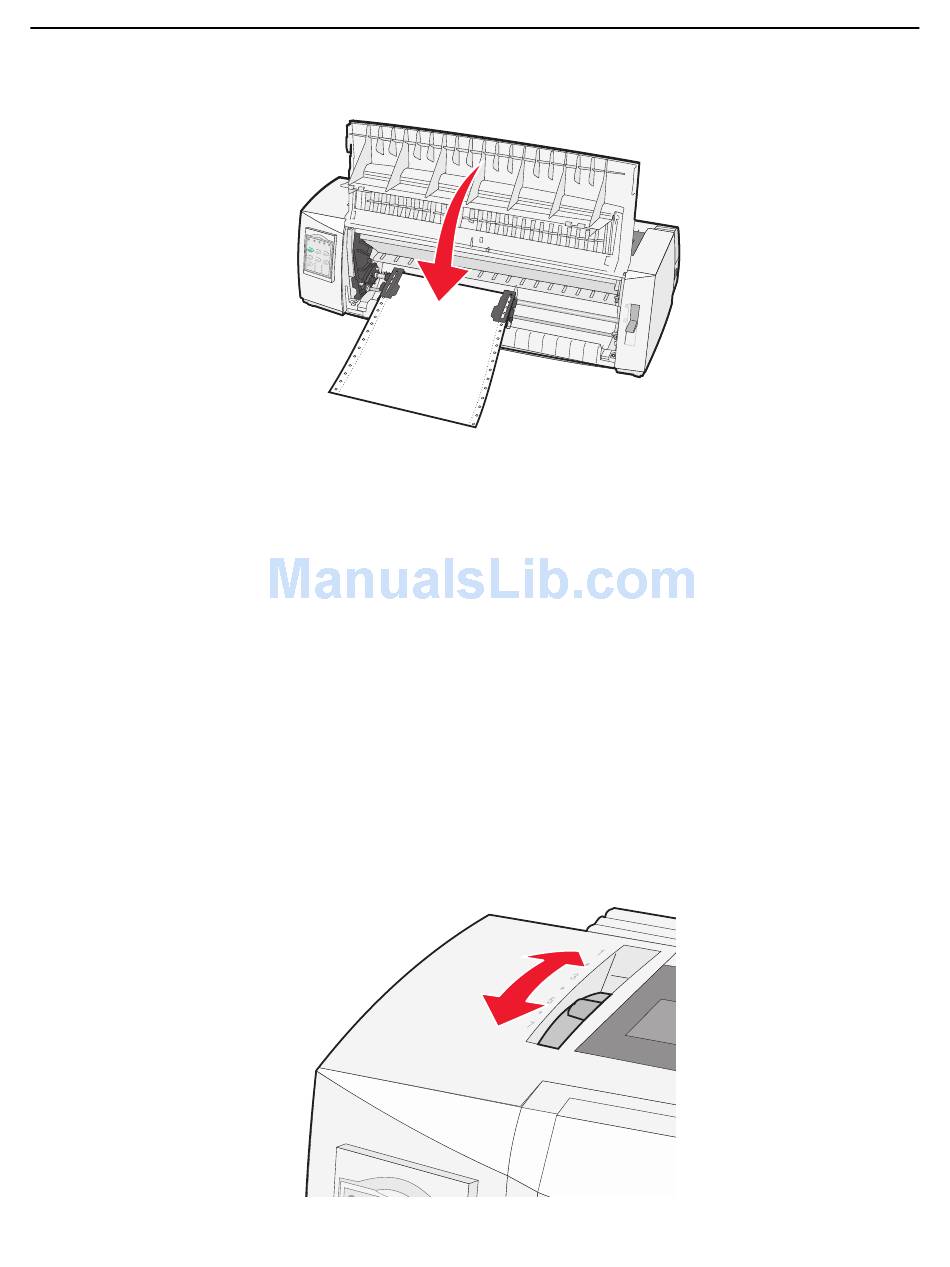

Close the front cover.
13
Press Start/Stop to load the paper to Top‑Of‑Form, and then put the printer online.
Notes:
•
If Auto Tear Off is set to On, then the printer moves the paper to the Tear Off bar.
• When you use the push tractor to print continuous forms, line spacing within the first 1.5 inches of the first
form may not be uniform.

Front loading continuous forms using the pull tractor

Make sure the tractor is in the pull position.
Note: If you have installed the optional Auto Sheet Feeder or Tractor 2, then see the documentation that came with
your option for paper loading instructions.
1
Plug the printer power cord to a properly grounded electrical outlet, and then press Start/Stop.
2
Make sure the paper path is clear.
Note: If a cut form or envelope is loaded in the printer, then press FormFeed to remove it.
3
Set the forms thickness lever to a setting corresponding with the paper thickness you are using.
4
Remove the ribbon access cover.
29
