Loading paper
5
Move the paper select lever down to the
6

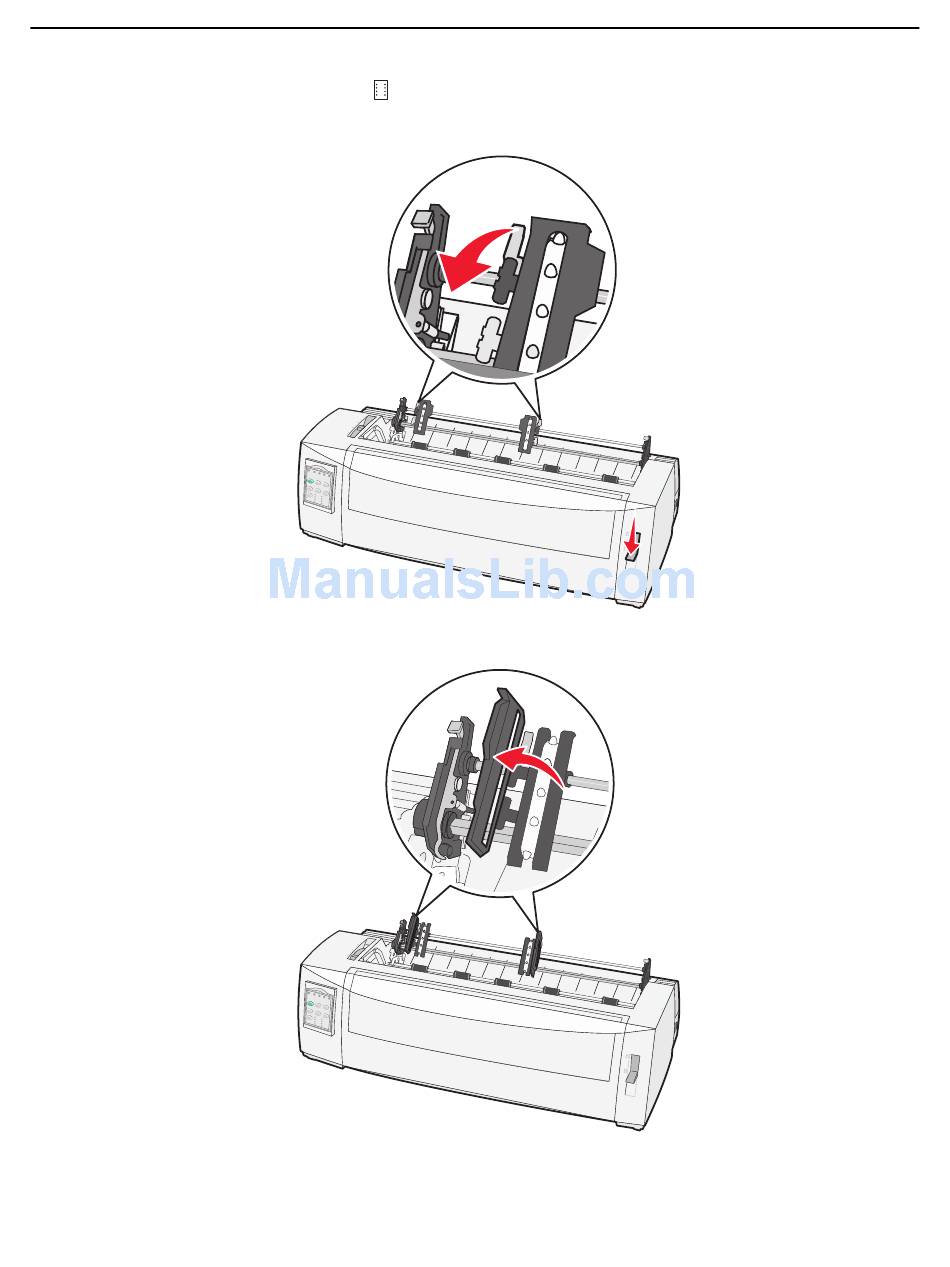

Pull up the left and right tractor locking levers to unlock the tractors.
7
Open the left and right tractor doors.
8
Open the front cover.
9
Insert paper into the front of the printer, between the metal and plastic plates.
Note: Push or pull the paper through the paper path until it passes the printhead.
position.
30
