Using the control panel

Selecting and locking a pitch

The printer data stream may contain control codes which select a particular pitch. To override the codes, you can select
and lock a particular pitch of your choice.
1

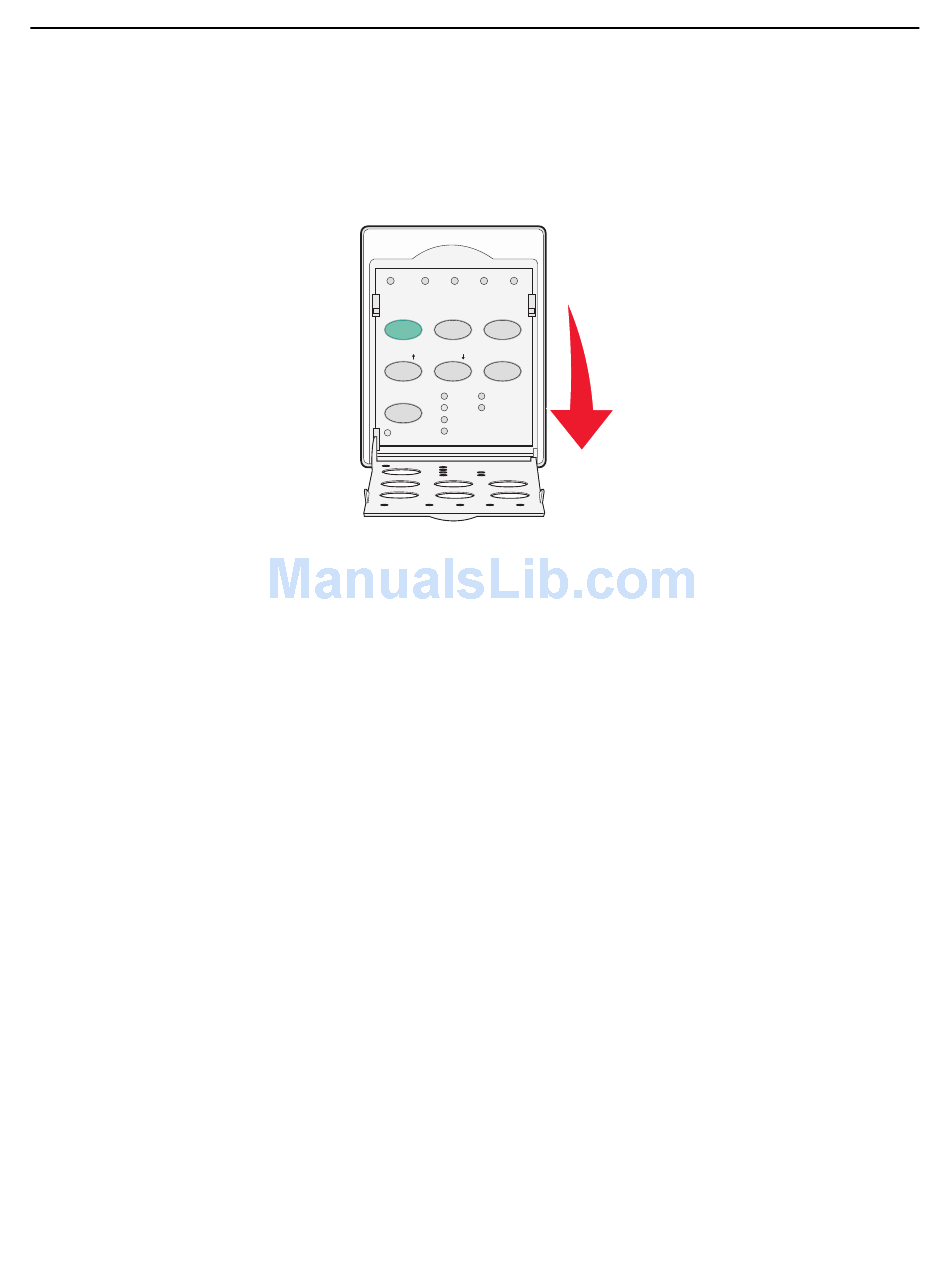

To select a pitch, open the control panel to layer 2.
2
Press Pitch repeatedly until the pitch light comes on next to the pitch you want.
3
Continue pressing Pitch until the Pitch Lock light comes on and the pitch you want is selected.
The pitch is locked until the printer is turned off.

Disabling Pitch Lock

1
To disable Pitch Lock, press Pitch repeatedly until the Pitch Lock light turns off and the pitch you want is selected.
2
Close the control panel.
3
If the printer is offline, press Start/Stop.
When the Ready light comes on, the printer is ready to print.
1 2 3 4
Power
Set TOF LineFeed Macro
Micro Micro Setup
10 20
Pitch
12 24
15
17
Lock
22
