C H A P T E R 2

Physical Installation

WARNING: Do not
remove the device's
cover. There are no user-
serviceable parts inside.
Rack
Installation
Physical Installation
The SA7150 is physically installed in either of two ways:
• In a standard 19" rack, cantilevered from the provided mounting
brackets
Free-standing on a flat surface with sufficient space for air-flow
•
(1" on all sides)
Rack mounting requires the use of the mounting brackets, and all four
of the included Phillips screws.

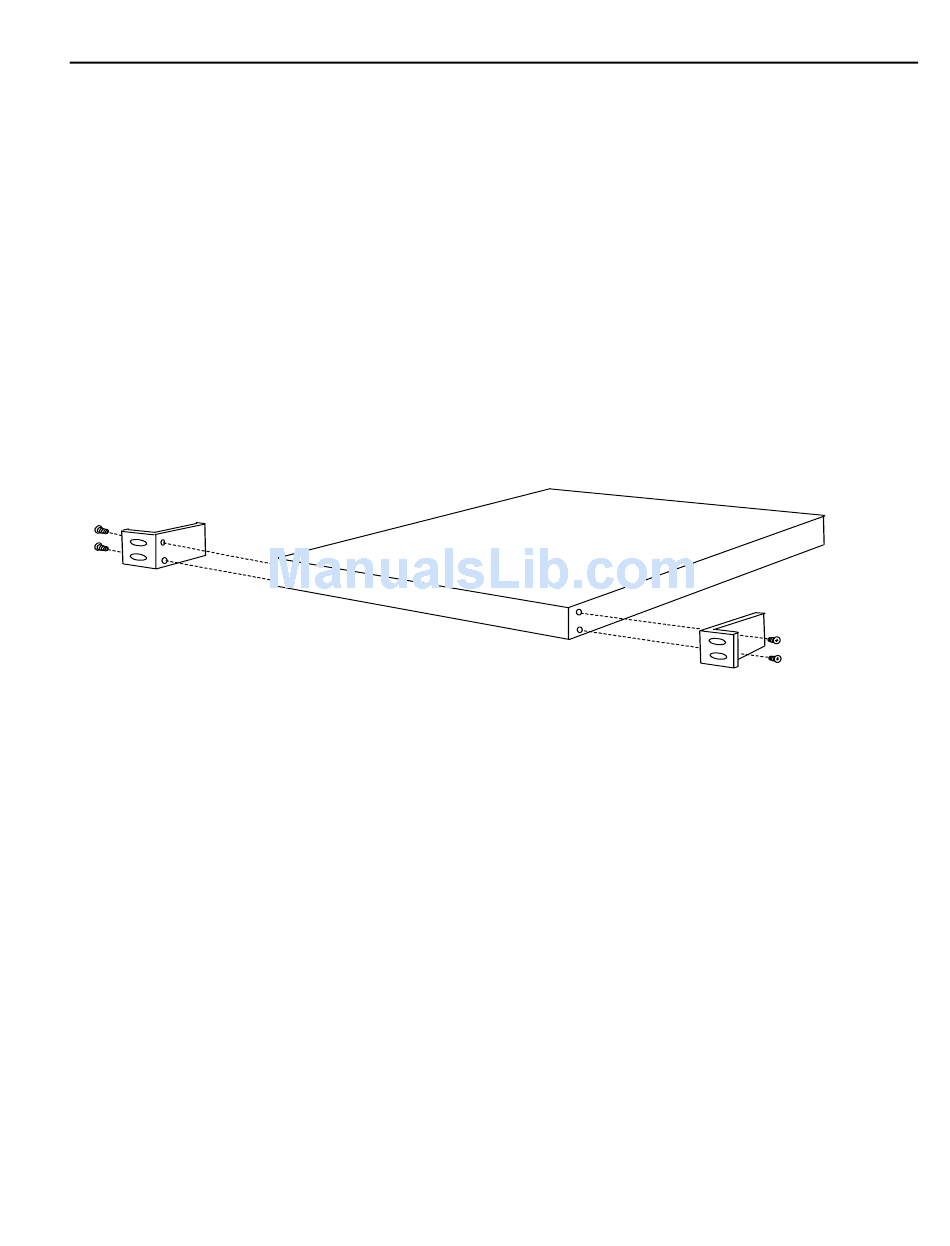

Mounting Bracket Installation
1. Locate the two mounting brackets and the four screws. (Two
screws for each bracket.)
2. Attach a mounting bracket to each side of the SA7150, using two
of the provided screws for each bracket. Use the holes near the
front of the SA7150's sides. The brackets have both round and
oval holes; the flange with round holes attaches to the SA7150,
the one with oval holes attaches to the rack.
3. Position the SA7150 in the desired space of your 19" rack and
attach the front flange of each mounting bracket to the rack with
two screws each. (Rack-mounting screws are not provided.)
