C H A P T E R 2
hub/switch
Console
Connection
Physical Installation
4. At this point both the Network and Server LEDs should be
steadily illuminated. If not, please see Chapter 9,
"Troubleshooting."
HP e-Commerce/XML Server
Accelerator SA7150

Wiring Connections

Run HyperTerminal* or a similar terminal emulator on your PC. The
steps below assume HyperTerminal* is used. Other terminals will
require different procedures.
1. Use the serial cable provided with the SA7150 to connect the
device's serial port (the left-hand serial port labeled "Console")
to the serial port of any terminal.
LEDs
Power Error
(green) (red)
Console
(CLI)

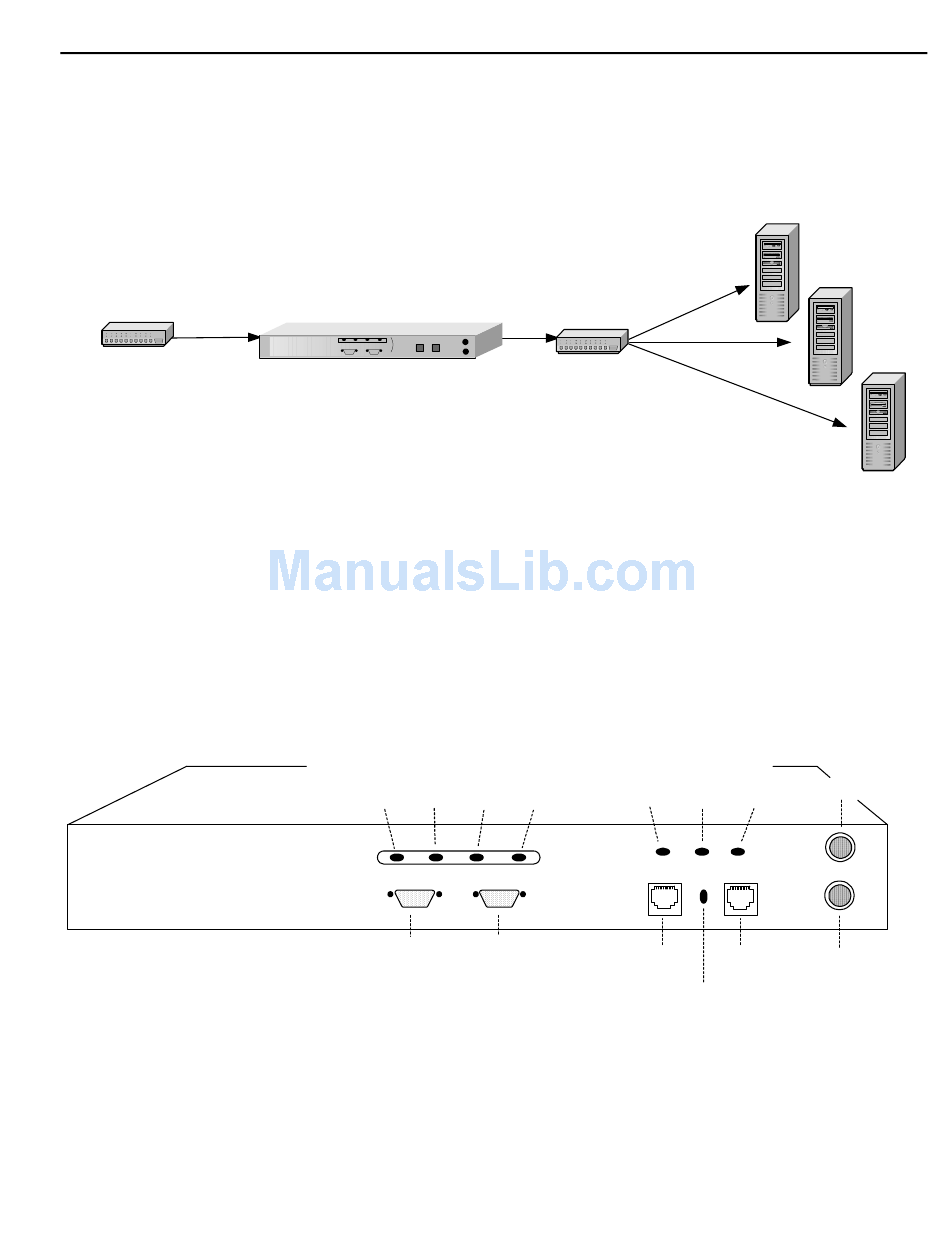

Front Panel Connectors and LEDs
2. Type an appropriate name in the Name field of the Connection
Description window (e.g., "Configuration"), and then click the
OK button. The Phone Number panel appears.
3. In the Connect Using... field specify "COM1" (or the serial port
through which the PC is connected to the SA7150 if different
from COM1).
hub/switch
Overload Activity
Network
(amber) (green)
(green)
Aux Console
Network Link
(Diagnostics)
(RJ45)
XML Server 1
XML Server 2
Default Server
LEDs
Inline Server Reset
(green) (green)
Server Link
Bypass
(RJ45)
Fail-through switch
