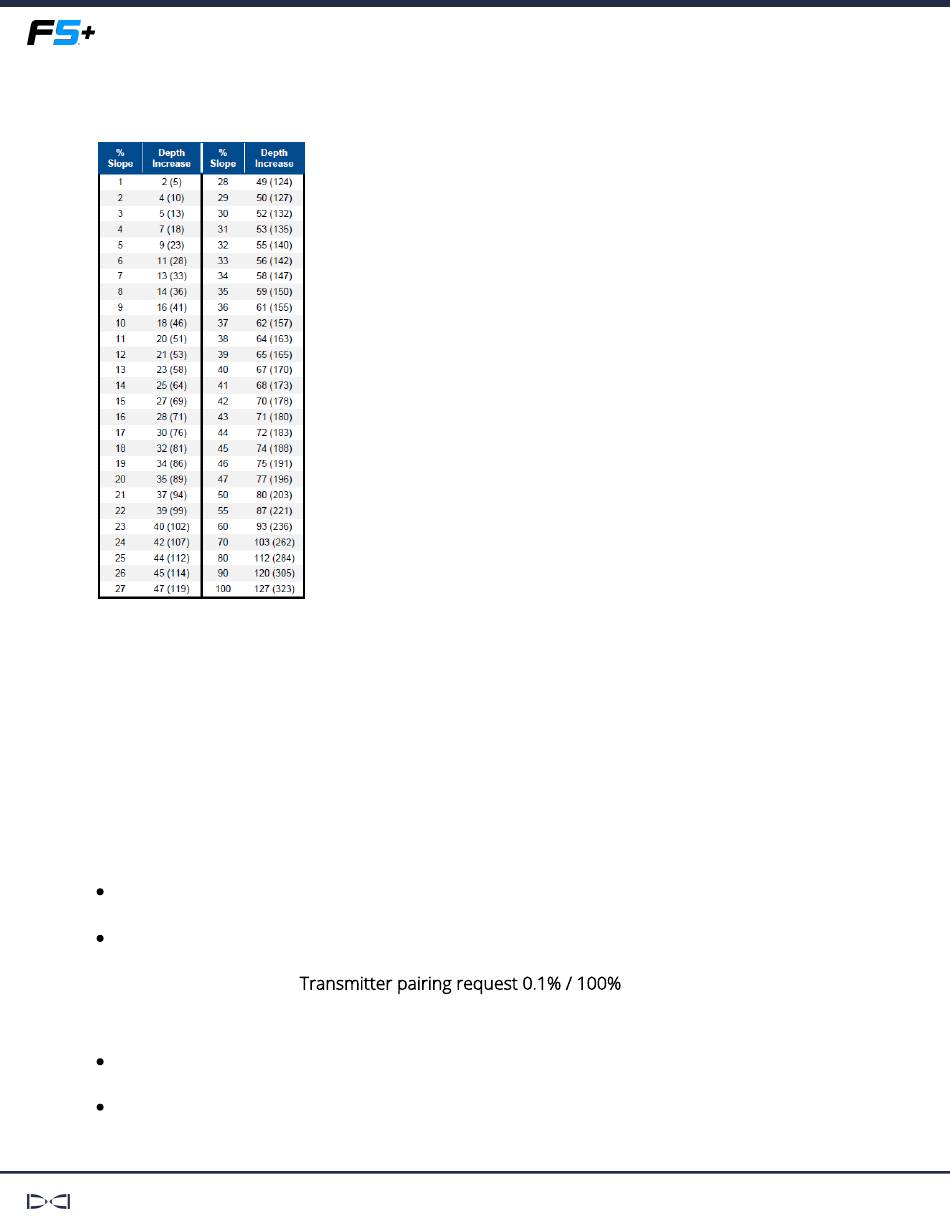

Slopes between 50% and 100% are provided for reference only and do not
represent typical drilling condi tions. All numbers are based on math only and
do not take into account extremely soft or extremely hard soil conditions,
which may cause depth values to vary.
FLUID PRESSURE RESOLUTION
Standard resolution:
from 0–75 psi is 1 psi
from 75–250 psi is 5 psi
Resolution after selecting Transmitter pairing request 0.1% / 100% (Full Scale
Sensitive Pitch, FSSP) for a compatible Falcon F5 or F5+transmitter:
from 0–50 psi is 5 psi
from 50–150 psi is 10 psi
