If using standard HAG and holding the locator to distance from
rebar or drilling shallower than 1.5 ft (0.5 m), add the height to
the target depth since standard HAG is ignored for Target
Steering.
STEP 4 OF 7
Place the locator on the drill path with its battery compartment facing the drill
head. Target Steering guides the transmitter to be inline with the locator's
handle when it reaches the target beneath the locator. For accurate depth
information, use the horizontal distance reading on the Target Steering
display to ensure the locator is no more than 35 ft (10.7 m) in front of the
transmitter.
If you go past 35 ft (10.7 m) do not rely on the depth and
up/down steering information. Instead, monitor pitch data.
STEP 5 OF 7

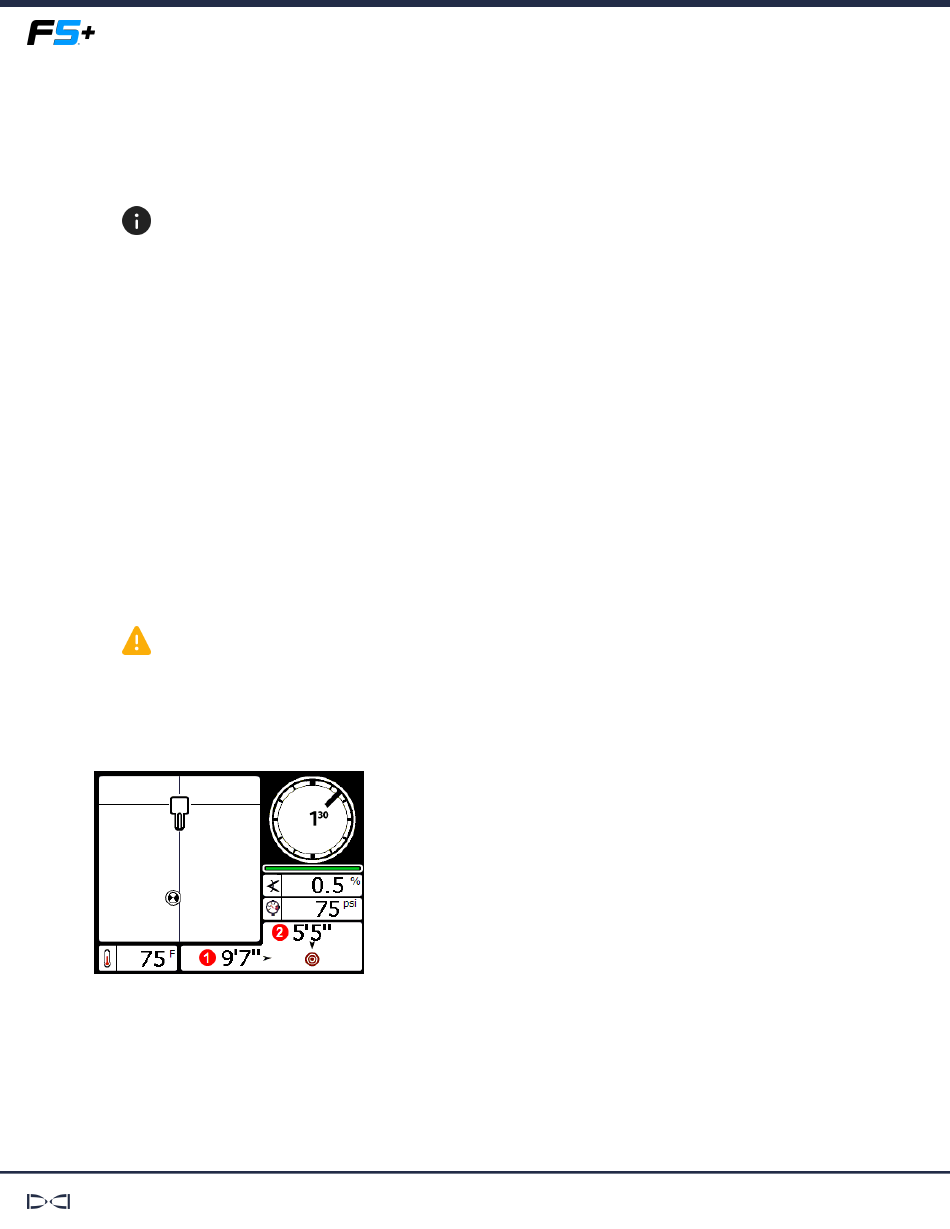

1. Horizontal distance from transmitter to locator
2. Current transmitter depth below the plane of the locator
