Local regulations may prohibit the sale of certain transmitter
variants in your region. If you have questions on availability,
please contact orders@digital-control.com or
productcompliance@digital-control.com.

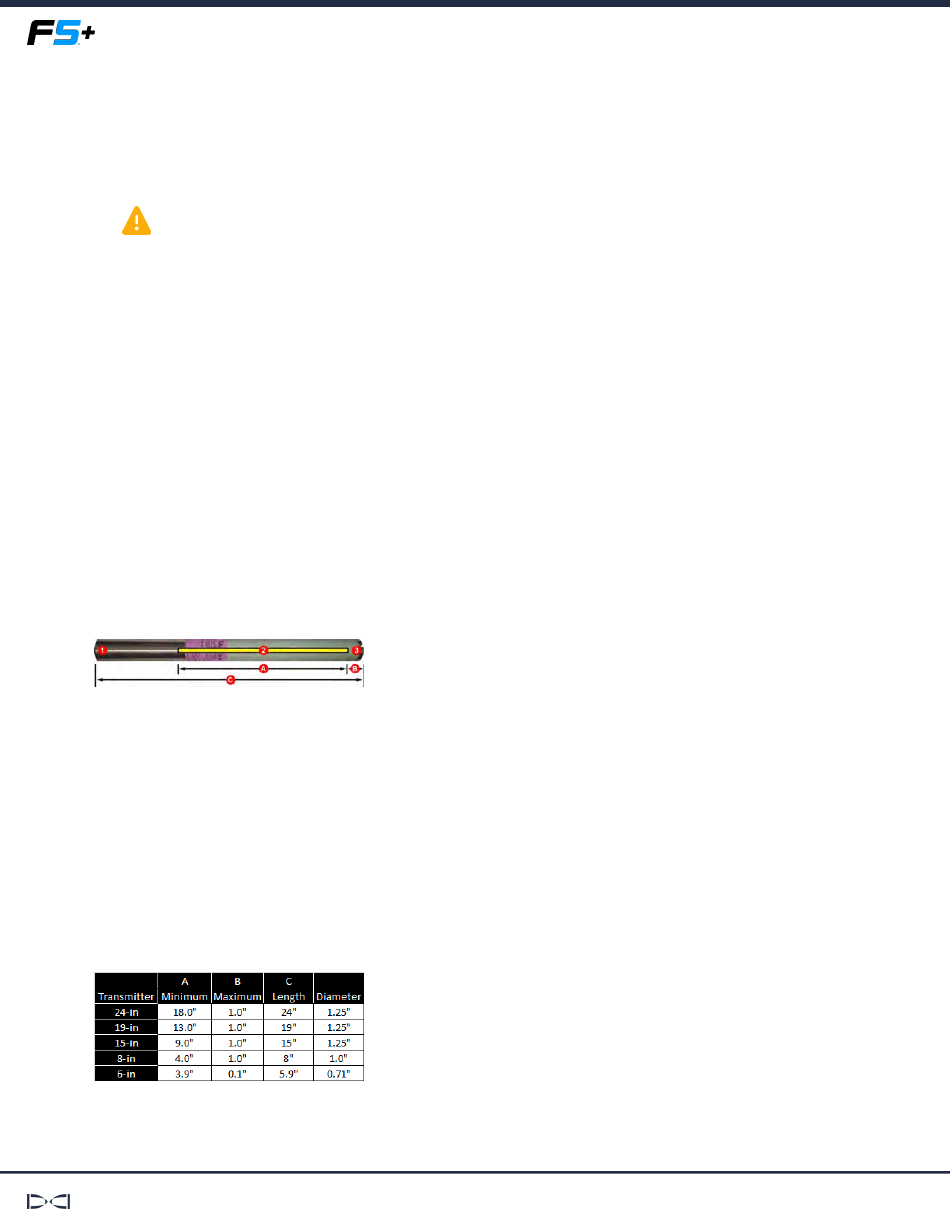

TRANSMITTER DRILL HOUSING REQUIREMENTS
For maximum transmitter range and battery life, the slots in the drill head
must meet minimum size requirements and be correctly positioned. DCI's
transmitters require a minimum of three slots equally spaced around the
circumference of the drill head. DCI transmitters fit standard housings but
may require a battery cap adapter in some cases.
Measure slot lengths on the inside of the drill head; slots must be at least
1/16th inch (1.6mm) wide.
1. Battery cap
2. Slot position
3. Front end cap
A. Slot length
B. Slot position
C. Transmitter length
