ADJUST ANTENNA ANGLE
8-11

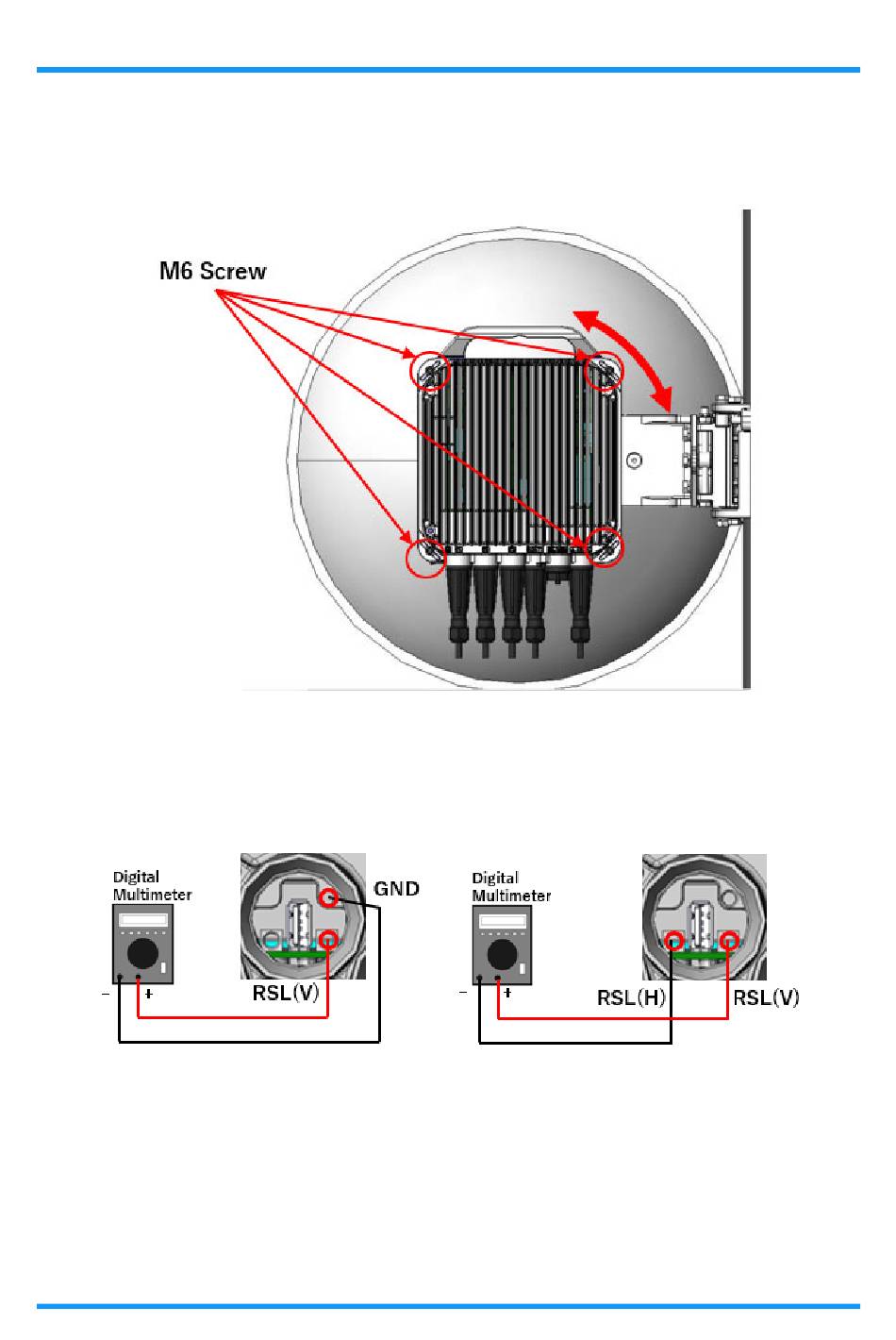

Figure 8-11 Location of Adjusting Nuts and Bolts iPASOLINK EX/A Dual
Figure 8-12 Example to Measure XPD Levels for Fixing Angles iPASOLINK EX/A Dual
RSL Monitor(V)
XPD: RSL(V) - RSL(H)
NOTE: If the multi-meter indicates minus value,
change V and H connection.
iPASOLINK EX Advanced: I
GGS-000546-13E
NSTALLATION
