4. Push the Bushing fully into the barrel:
BARREL
BUSHING
WITH RIB
5. Tighten the Gland Nut at the barrel end level, and secure them using the torque
wrench.
CAUTION: In case using the thin cable, the Gland Nut may not stop if tightened by force.
Stop rotating the Gland Nut at the appropriate position so that the barrel end does
not stick out of the gap at the Gland Nut end.
GGS-000546-13E

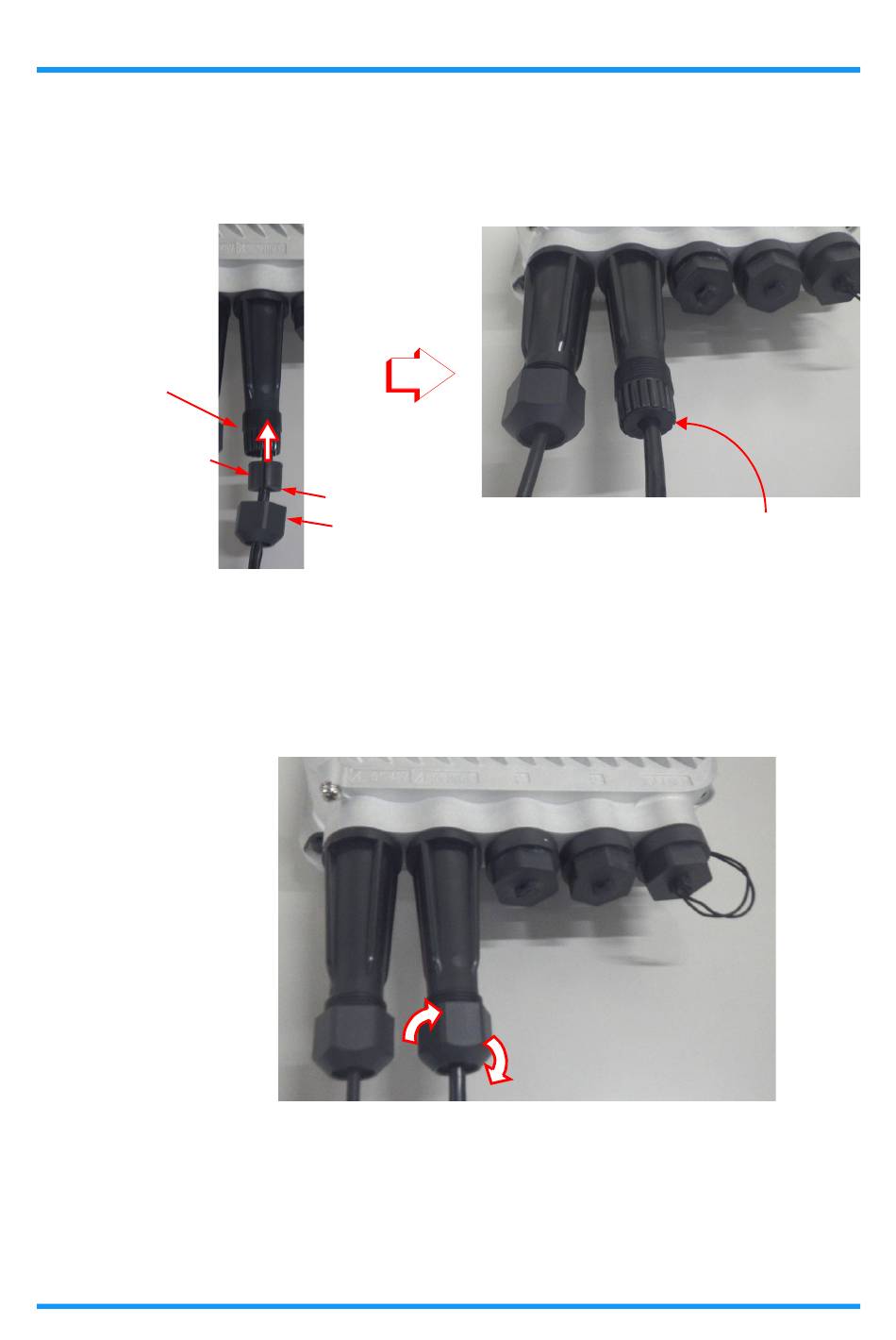

Figure 5-15 Set Bushing into Barrel
RIB
(GLAND NUT)
Figure 5-16 Secure Gland Nut
Check that the bushing is fully inserted
into the barrel end.
GLAND NUT
