1. Adjust the antenna angle — Left or Right:

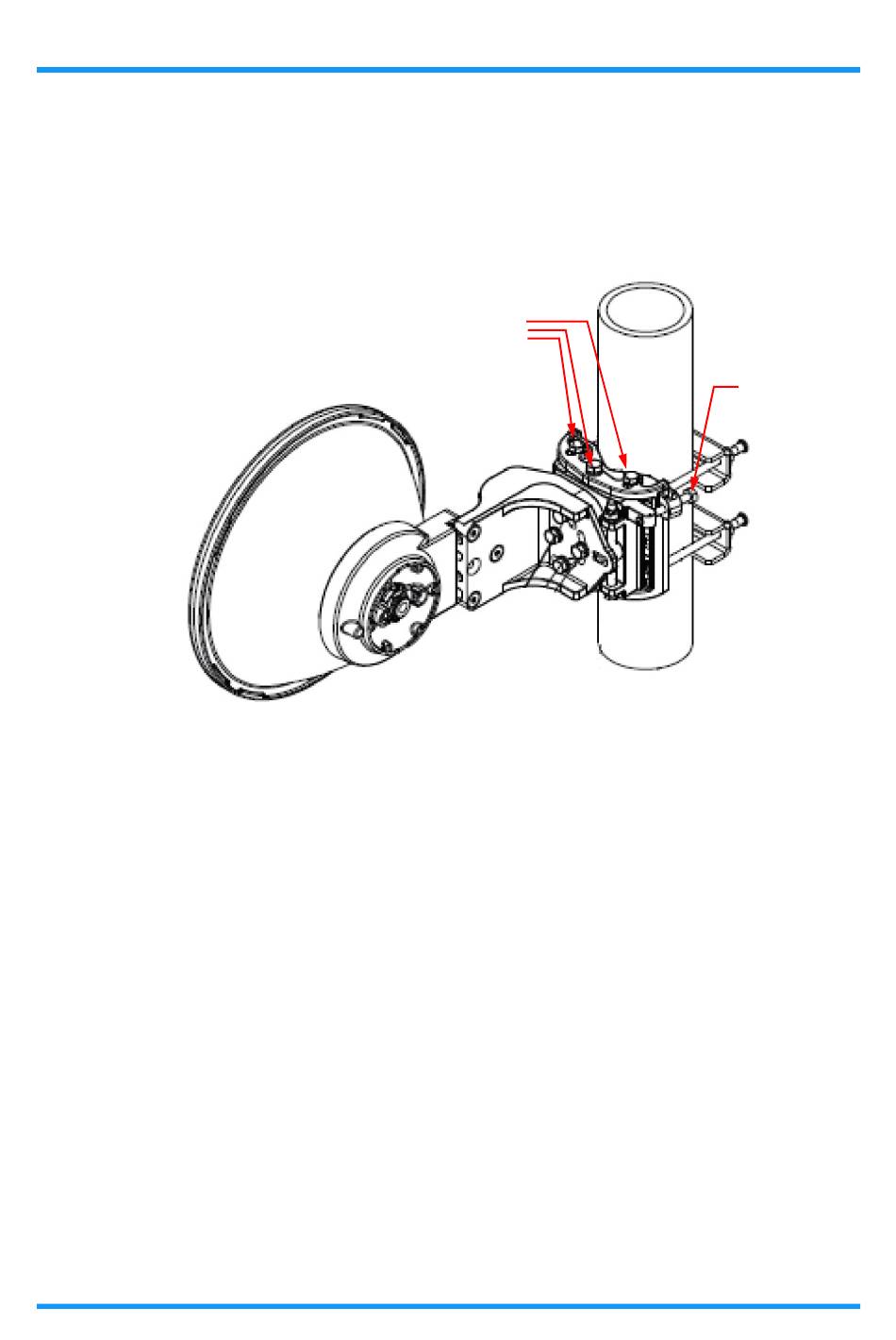

Figure 8-9 Turn Antenna to Left or Right
GGS-000546-13E
(3) Tightening Torque: 38 Nm ±5%
(1) Loosen six bolts on top and bottom of the bracket.
(2) Rotate the bolt to turn the antenna to the left or right.
(3) Adjust and specify parameters for control items using WebLCT at both
opposite sites.
(4) When the left/right angle is adjusted, secure the six bolts back in place.
(1) Loosen bolts
ADJUST ANTENNA ANGLE
(2) Rotate bolt
