ADJUST ANTENNA ANGLE

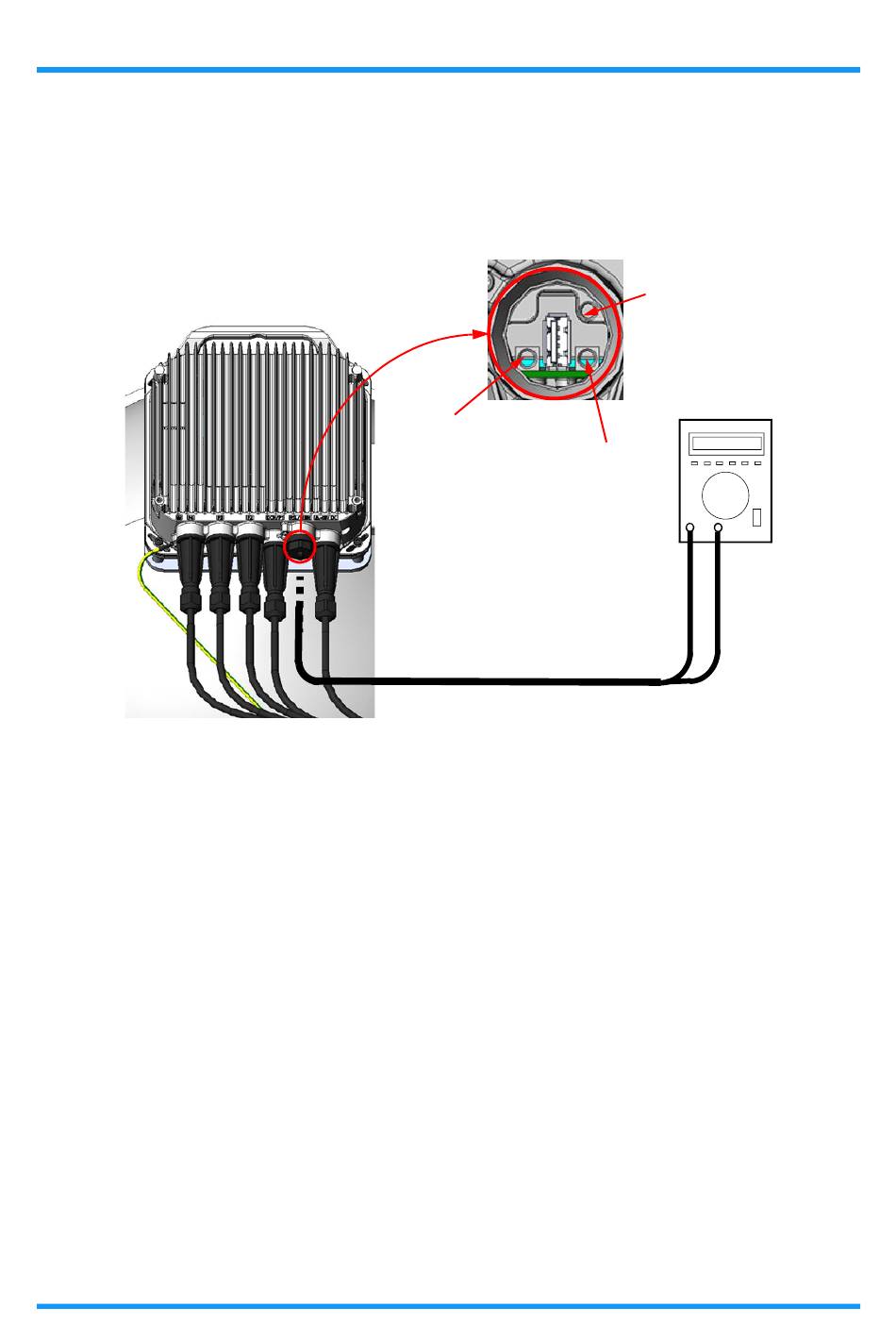

Figure 8-4 Example to Measure Reception Level for Antenna Angles
Adjustment iPASOLINK EX/A Dual
iPASOLINK EX/A
iPASOLINK EX Advanced: I
Followings show the relationship between RX INPUT LEVEL (dbm) and
RSL (V) .
NSTALLATION
RSL TERMINAL (H)
RSL TERMINAL (V)
GND
DIGITAL MULTIMETER
GGS-000546-13E
8-5
