MOUNT iPASOLINK EX/A
4.3 Mount iPASOLINK EX/A Dual for 1+0 / 2+0 / 1+0 XPIC
System
4.3.1 Set Antenna Brackets to Pole
Antenna Bracket's position to the pole differ depending on the use of the equipment.
Install the EX/A Dual equipment vertical like Figure 4-4. This equipment cannot be
used in such an orientation that the FIN is horizontal. When using V-polarization, set
to use MODEM Slot 1 in the equipment configuration of LCT menu. When using H-
polarization, set to use MODEM Slot 2 in the equipment configuration of LCT menu.
Refer to Set Network and System Provisioning manual for equipment configuration
detail.

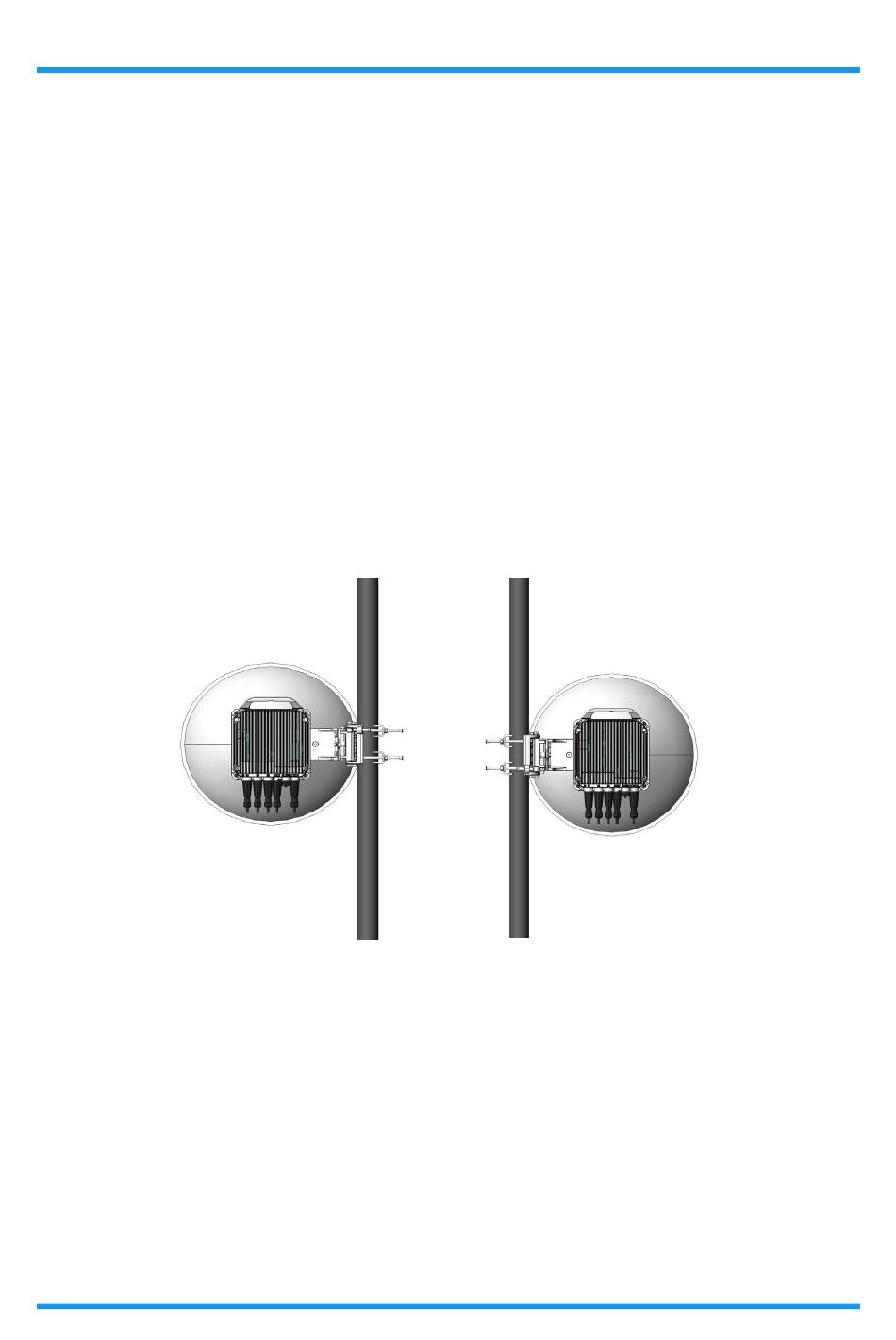

Figure 4-4 Position to install
(mounted on the left to the pole)
