NEC iPASOLINK EX Advanced Installation Manual page 57

CONNECT CABLES
5.8.2 Power Cable (2-Core Cable)
Two-core cable is used for the Power Port. Followings are the procedure to prepare
the power cable:
5.8.2.1 Outlines of Parts

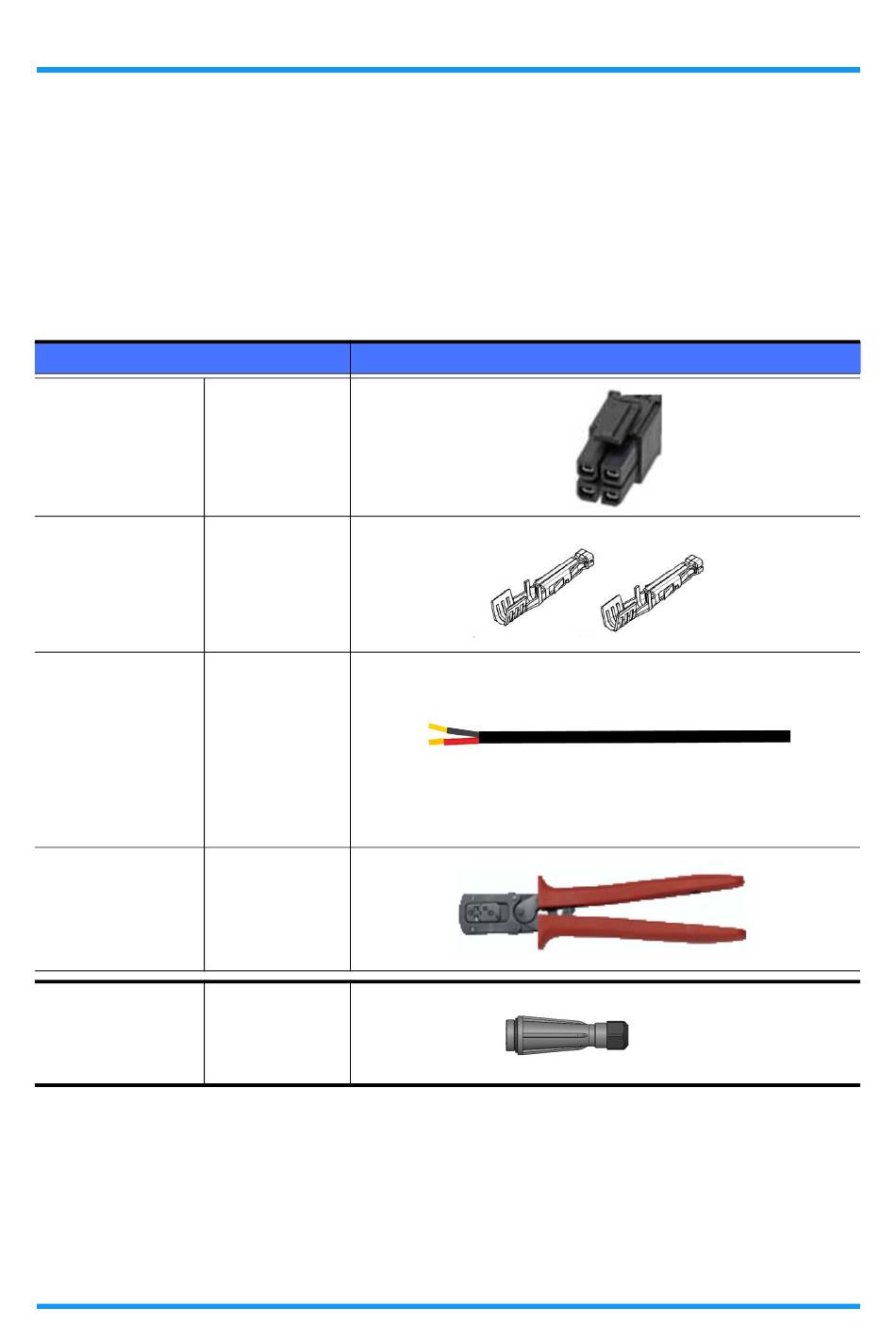

Parts
Connector Housing
Contact(s)
Cable
Hand Crimping Tool
Waterproofing Plug
Cover
iPASOLINK EX Advanced: I
Table 5-7 Parts List
171692-0104
(molex)
172063-0311
(molex)
AWG14 to 2-core double insulated cable with braided metal shield, 5.86 to
AWG16 10.00 mm in diameter:

Pin #1: Positive

Pin #3: Negative
63825-7100
(molex)
200218-7200
(molex)
——
NSTALLATION
Description
5-25
GGS-000546-13E
