CONNECT CABLES
2. Confirm the connector shape of the RJ45 Port, then insert the plug of LAN Cable
with waterproofing cap.
3. Place the housing over the RJ45 Connector, and turn it clockwise.
iPASOLINK EX Advanced: I

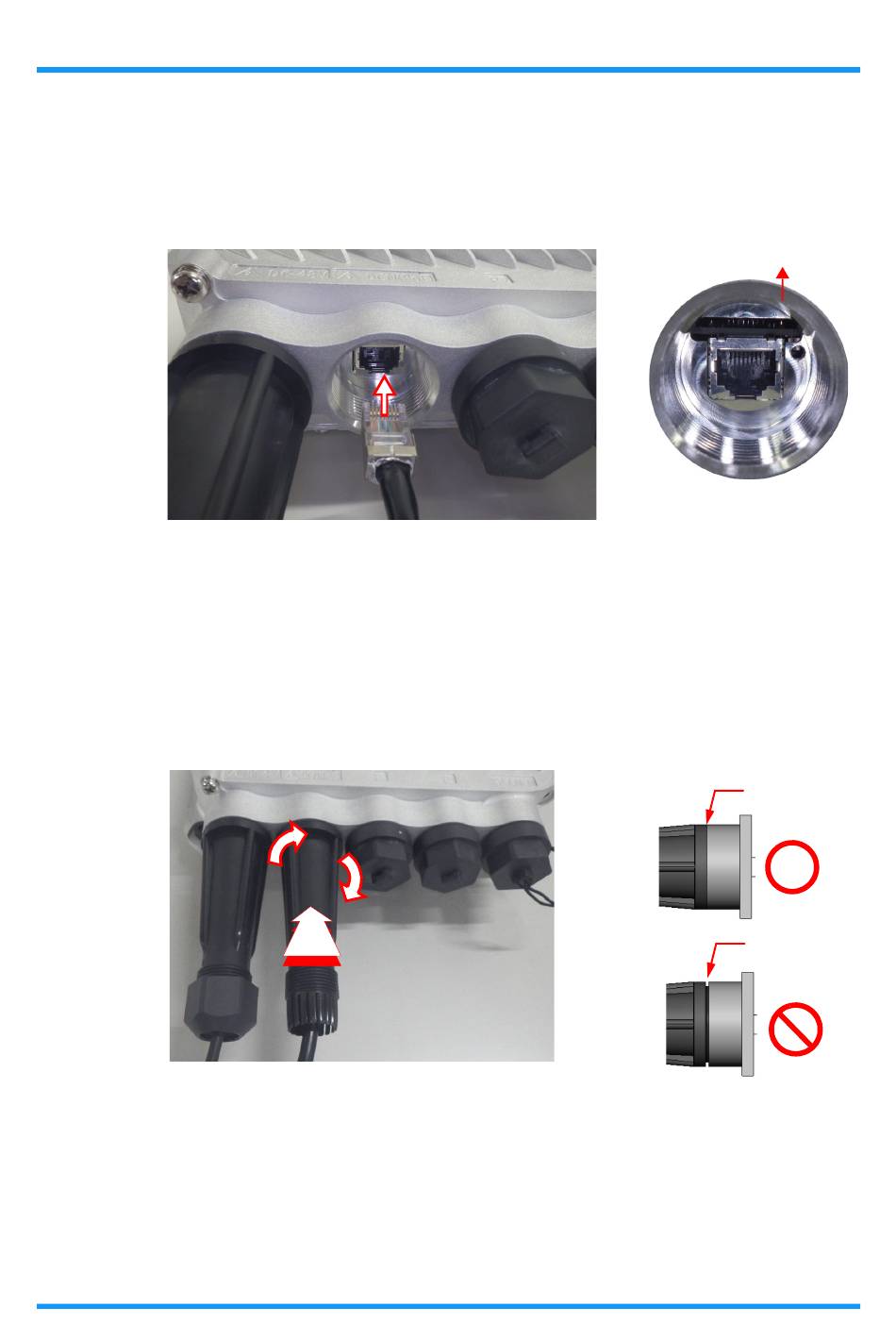

Figure 5-13 Connect LAN Cable
Figure 5-14 Turning the Housing
NSTALLATION
(front side)
RJ45 PORT
Check the shape of connector
to insert the plug appropriately.
no gap
gasket is seen
GGS-000546-13E
5-9
