CONNECT CABLES
5.8.2.3 Procedure
1. Strip the cable jacket.
2. Remove the insulation to expose each conductor:
3. Set contact to each conductor.
4. Seal the crimp.
iPASOLINK EX Advanced: I
NOTE: Ensure not to damage the braided wire.
• knife
Tools
• cutter
• measuring tool, etc.
NSTALLATION

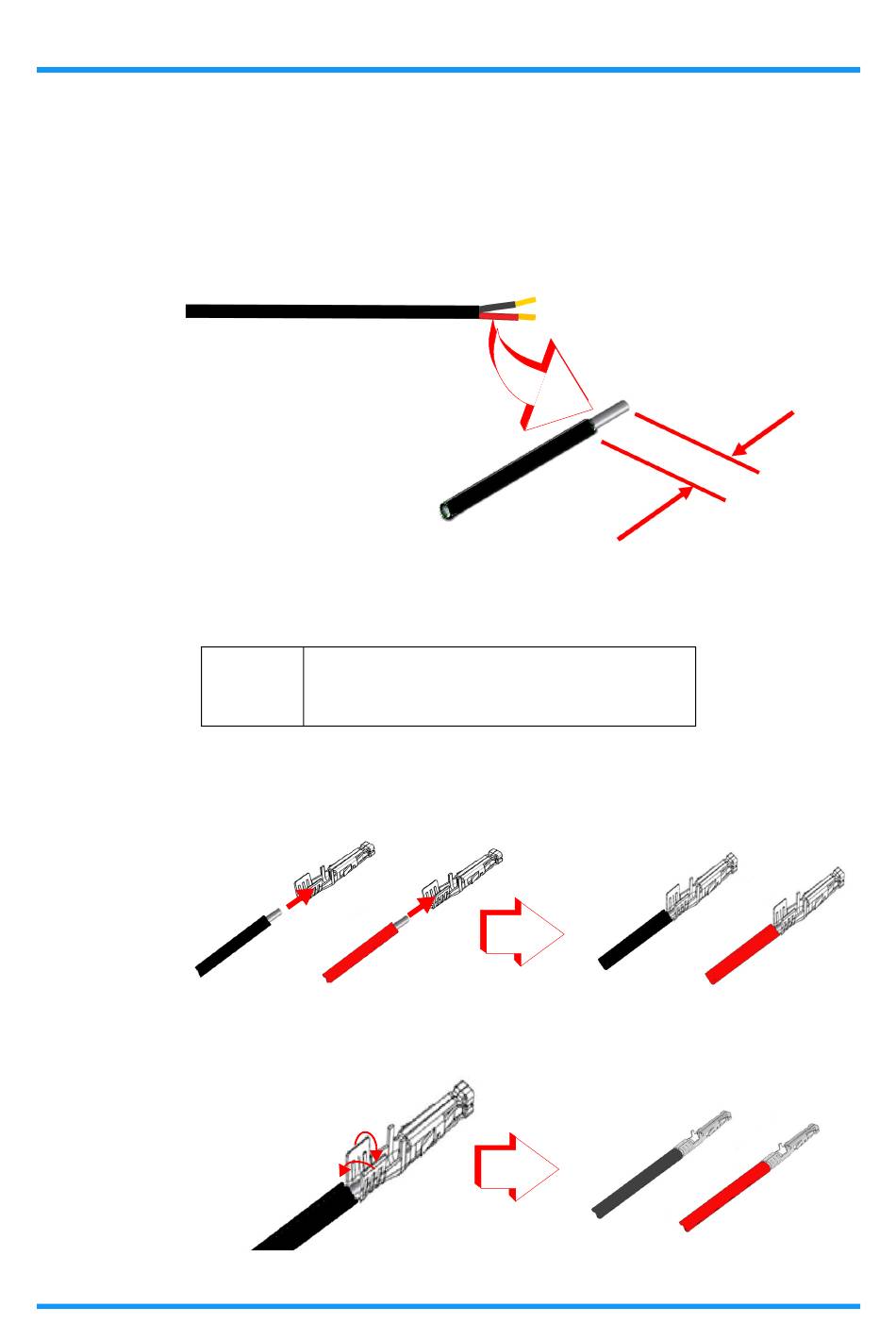

Figure 5-35 Expose Conductor
Figure 5-36 Set Contacts
Figure 5-37 Seal Crimps
5-27
5.75 ±0.25 mm
4.2
