5.7.2 Power Port (SELV)
 Indication:
 Connector Type: molex® MEGA-FIT4P
GGS-000546-13E
DC –48V

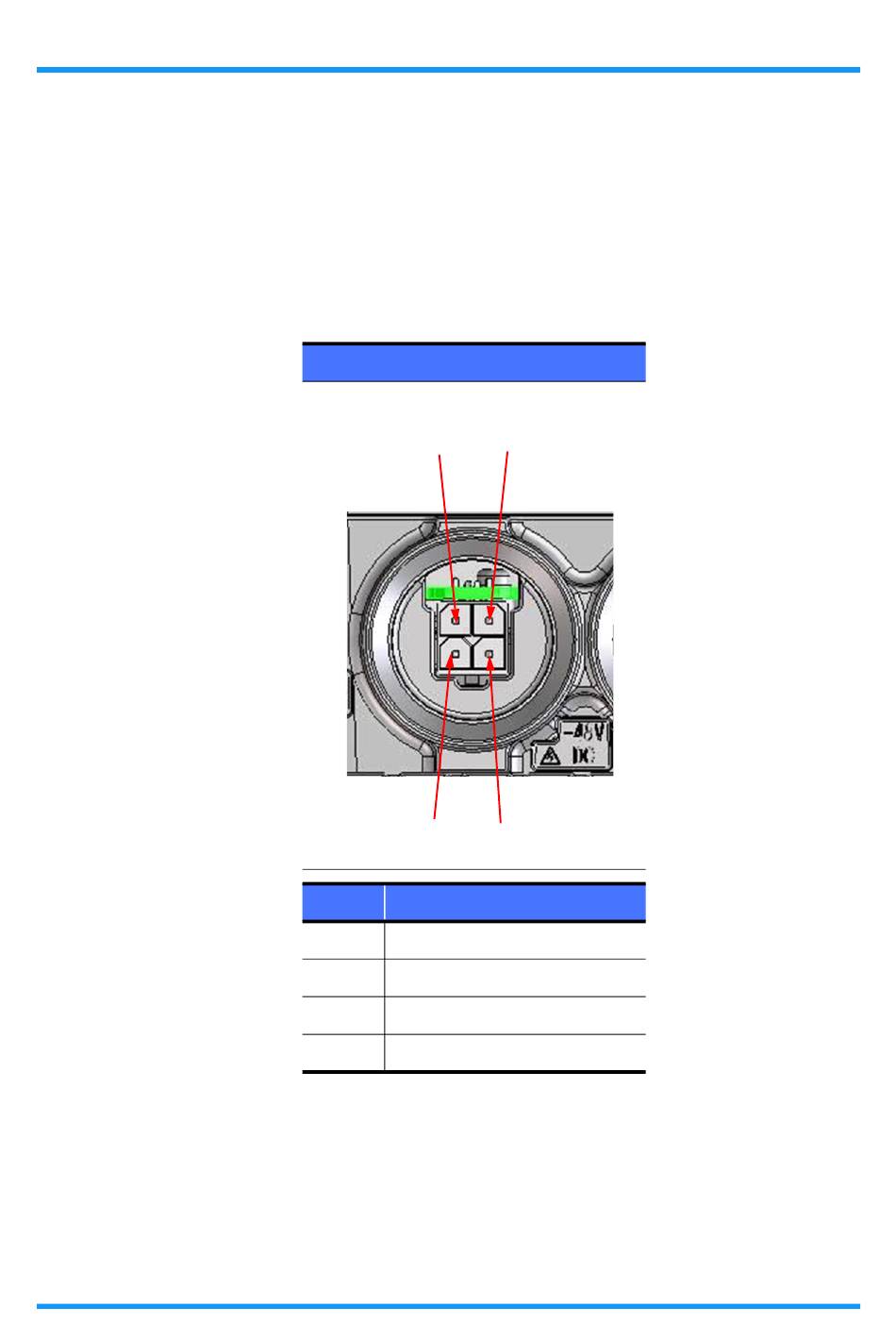

Table 5-3 Pin Assignment of DC –48V Port (SELV)
DC –48 V [4-Pin]
1
3
PIN No.
1 Positive
2 Positive
3 Negative
4
Negative
2
4
ASSIGNMENT
