CONNECT CABLES
5.4 Power Cable
Power Cable to connect with iPASOLINK EX/A requires the waterproof process on
its connection point. The braided metal shield including power cable is connected to
grounding point at bottom of tower or cabinet. Followings show the connecting
procedure of Power Cable and waterproof cover:
 Reference
1. Open the Power Port (SELV):
(1) Turn the waterproofing cap counter-clockwise, and open it.
(2) The removed cap should be stored properly.
2. Connect the Power Cable (SELV):
(1) Insert the Power Cable's plug into the opened power port.
iPASOLINK EX Advanced: I

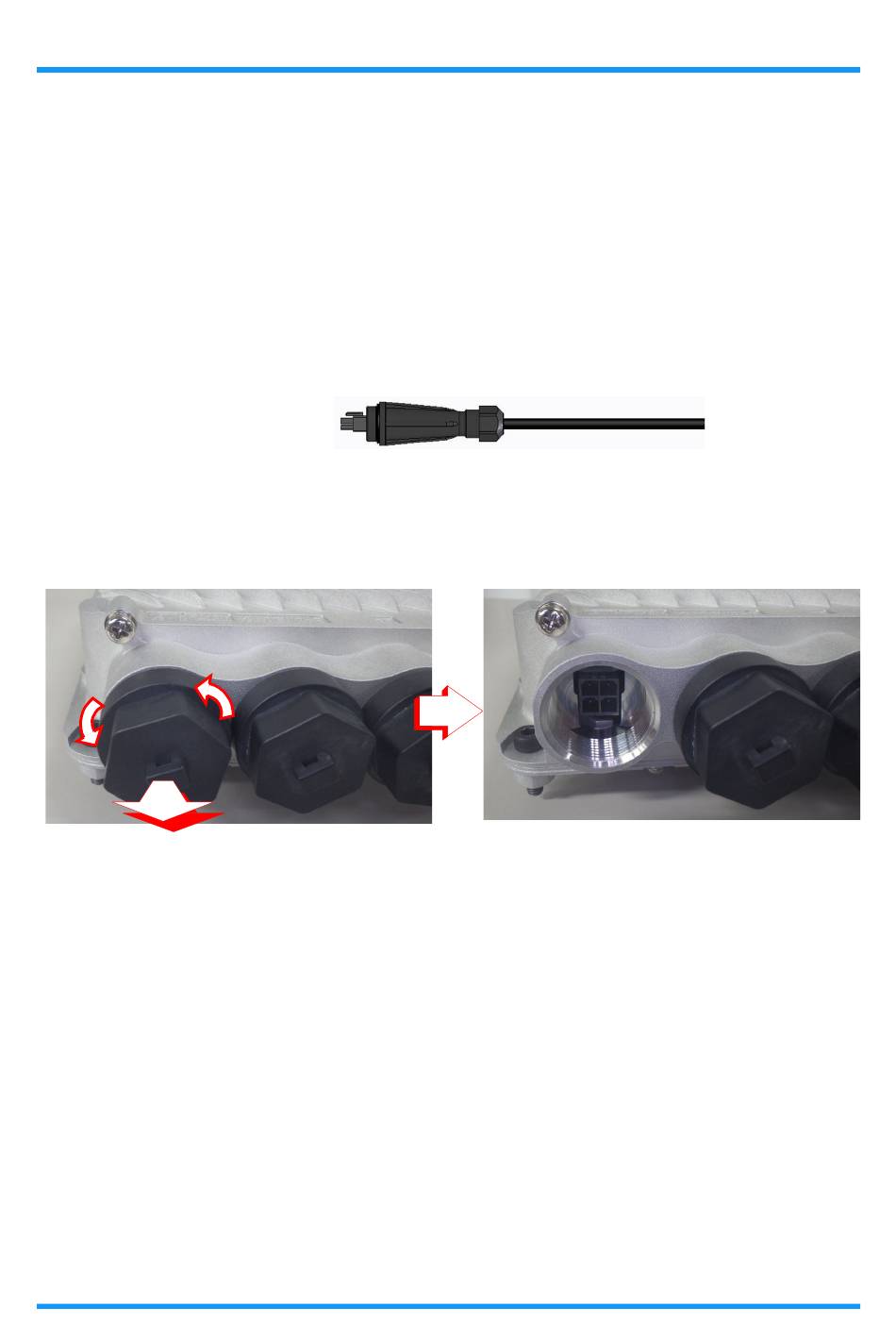

Figure 5-4 Power Cable with Waterproofing Cover
Figure 5-5 Remove Waterproofing Cap on Power Port
