5-28/END

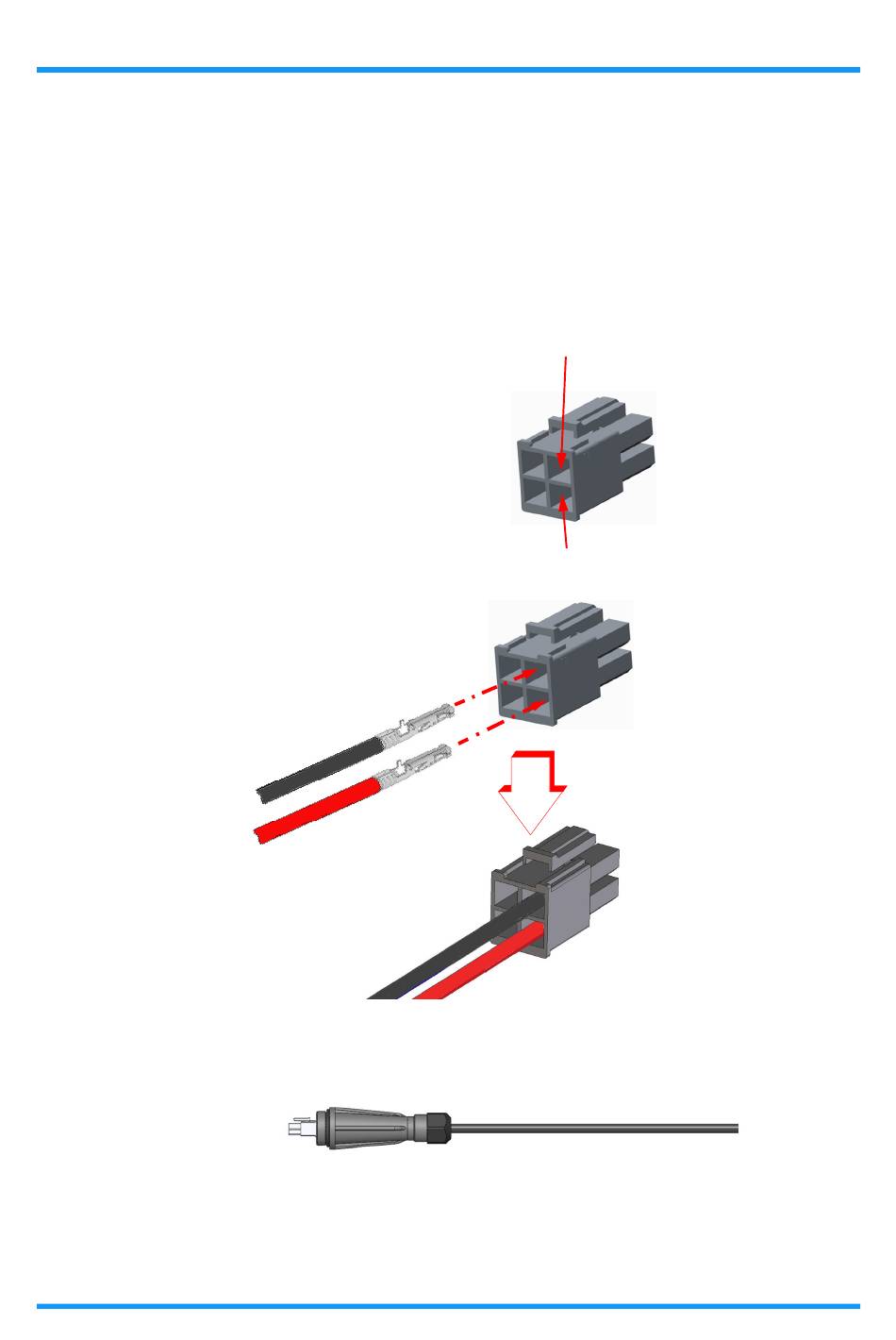

5. Insert the both contacts into the connector housing.
 Wear Waterproofing Plug Cover if Prepared:
GGS-000546-13E
NOTES:
1. The drawings below put the connector housing upside down for some
reasons. Be sure to confirm the orientation of completed connector
when connecting it to the equipment.
2. The 2-core cable is connected to the 4-pin Power Port.
POWER CONNECTOR
HOUSING (REAR SIDE)
Figure 5-38 Reference for Power Cable with Waterproofing Cover
This step ends the procedure.
CONNECT CABLES
#3
#1
