Wren Kitchens INFINITY PLUS Base Unit Fittings Manual page 10

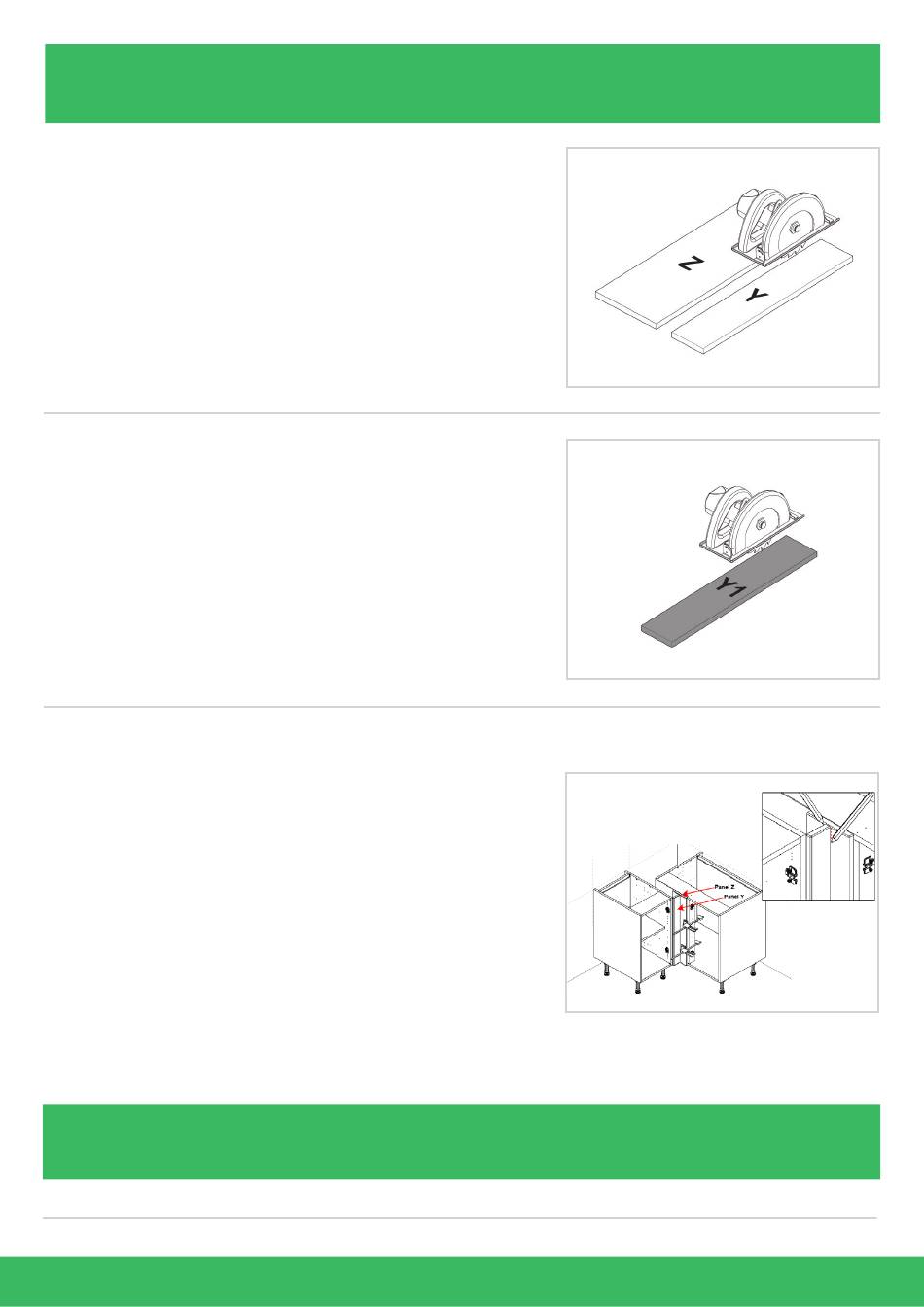

When cutting the panel please take into account the thickness of the blade.
Cutting the corner post
When using a circular saw, mark the
measurement on the back of the corner post
panel. Place the panel facing down and cut it
into two pieces.
For reference, in this guide the panel that you
have measured and cut will be known as Panel
Y and the offcut will be know as Panel Z.
Cutting Packer Y1
Take packer Y1 and cut to the same
measurements as panel Y.
Marking the position of Panel Y onto Panel
Z
Re-position the panel Z and clamp into place,
18mm back from the edge of the centre post.
Hold panel Y against the adjacent unit as
shown in diagram.
Mark the front and rear of panel Y onto panel
Z using a pencil to determine the position for
attaching the two panels.
Then remove both panels from the units.
You can make your markings more visible by drawing them onto masking tape.
Page 10
