Wren Kitchens INFINITY PLUS Base Unit Fittings Manual page 11

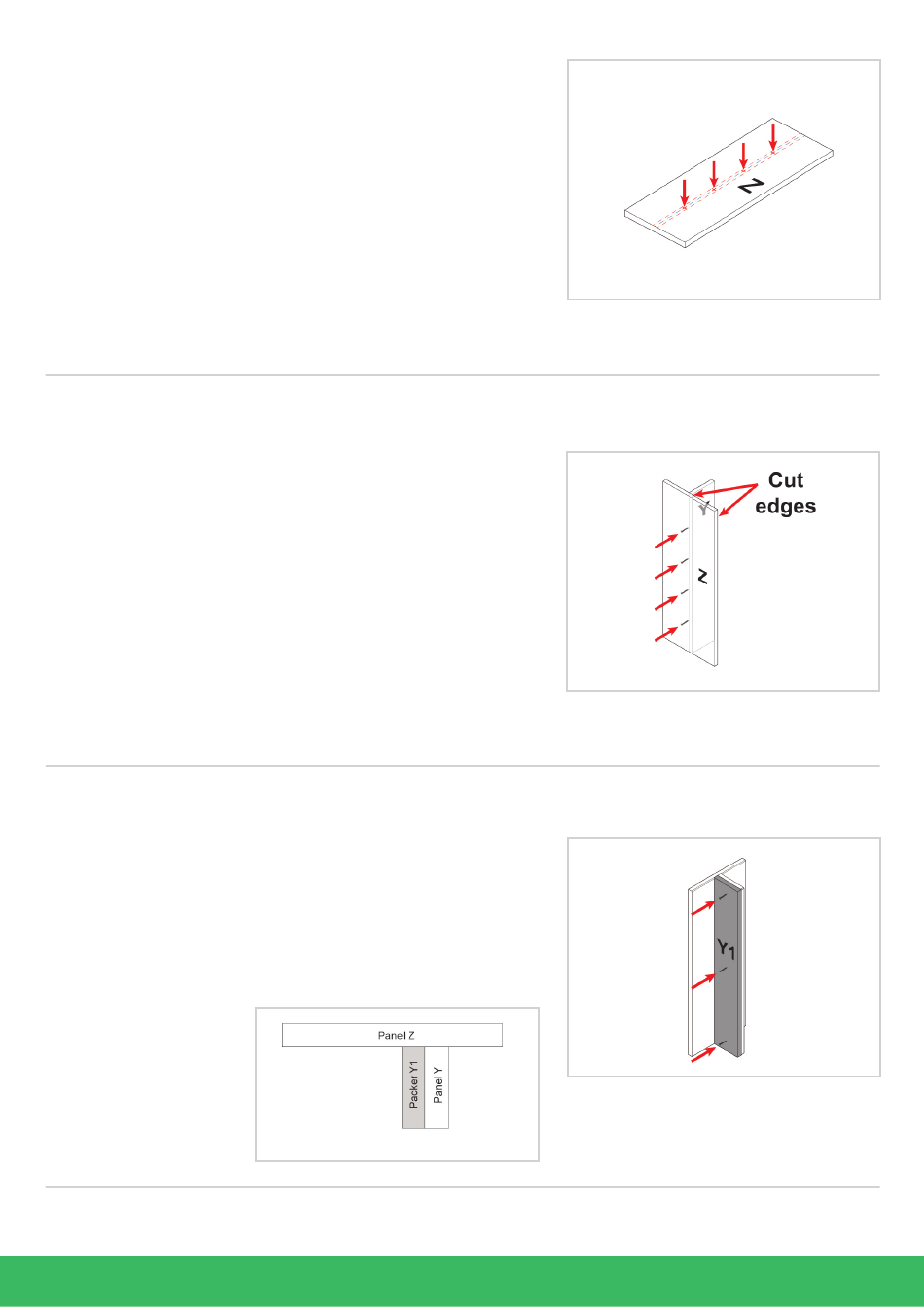

Marking Panel Z
Continue the markings down the full length
of panel Z. Next, lightly draw a line in the
middle of the two pencil markings
Drill four holes down the centre line, ensuring
they are equally spaced.
Creating the corner post
Attach Panel Y to Panel Z to create a corner
post, using a clamp to secure the pieces
together.
To secure the panels, insert 4x30mm screws
in the pilot holes, through the back of Panel Z
Image from
back of panel
and into the cut edge of panel Y.
Z
Attaching the packer
Secure Packer Y1 to the back of Panel Y using
3x30mm screws, ensuring the screws are
equally spaced and both pieces align.
View from
above corner
post.
Page 11
