I-2-3 Antenna Installation
Antenna must be installed on Vigor router correctly to obtain the transmission signal.
For model with SIM installed
There are two types of antennas provided for Vigor C410ax / C510ax, which must be installed in
different locations carefully and correctly. Wrong installation might cause bad signal of wireless
connection. Therefore, pay attention to the installation of antennas by referring to the following
illustration.

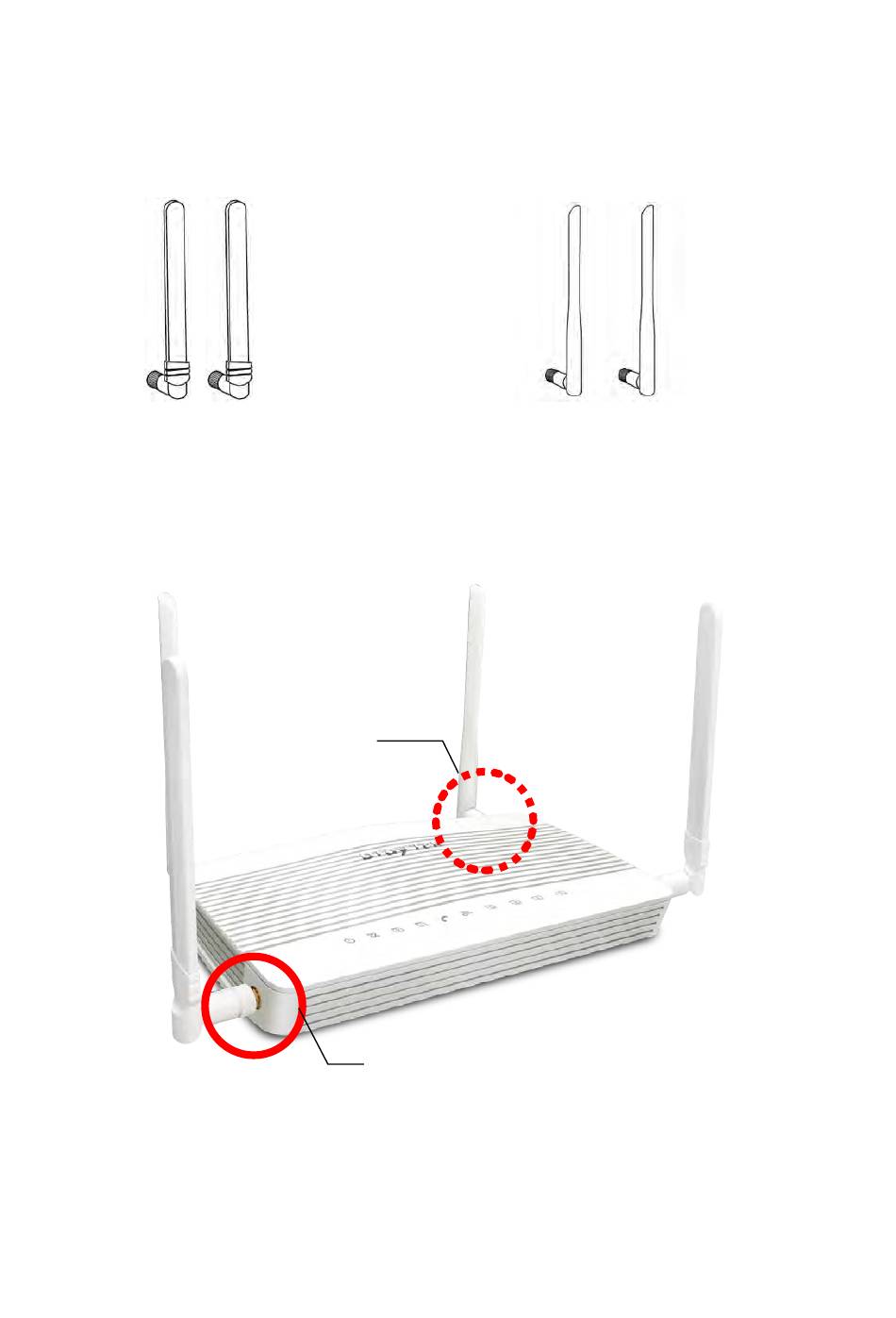

SMA jack for
WLAN
Antenna
SMA jack for LTE/5G-NR
Antenna
For ax models
