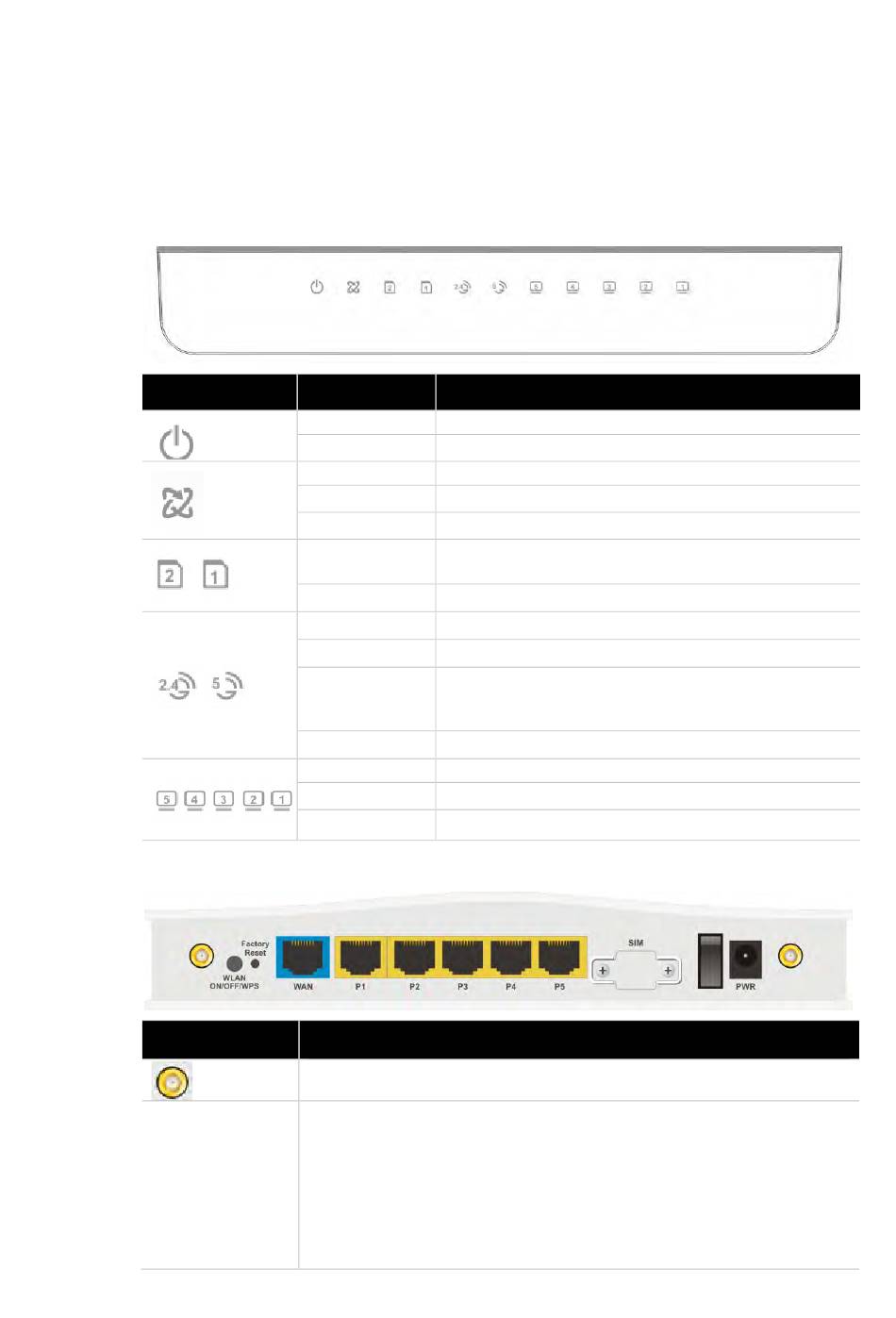

I-1-3 LED Indicators and Connectors for Vigor C410ax
Before you use the Vigor modem, please get acquainted with the LED indicators and connectors
first.
LED
LED
Connectors
Interface
WLAN
ON/OFF/WPS
Status
Explanation
Blinking
The router is powered on and running normally.
Off
The router is powered off.
On
Internet connection is ready.
Blinking
The data is transmitting.
Off
Internet connection is not ready.
SIM card is inserted into the slot and detected by Vigor
On
device.
Blinking
No SIM card in detected.
On
Wireless access point is ready.
Blinking
Ethernet packets are transmitting over wireless LAN.
When both ACT and WLAN LEDs blink quickly, it means
Blinking
the WPS function is enabled and active. The system is
(quickly)
waiting for a wireless station of connection.
Off
The WLAN function is inactive.
On
The LAN port is connected.
Blinking
The data is transmitting.
Blinking
The data is transmitting.
Explanation
Connecter for installing WLAN antennas. (For ax model).
WLAN On - Press the button and release it within 2 seconds. When the
wireless function is ready, the green LED will be on.
WLAN Off - Press the button and release it within 2 seconds to turn off the
WLAN function. When the wireless function is not ready, the LED will be off.
WPS - When WPS function is enabled by web user interface, press this
button for more than 2 seconds to wait for client's device making network
connection through WPS.
